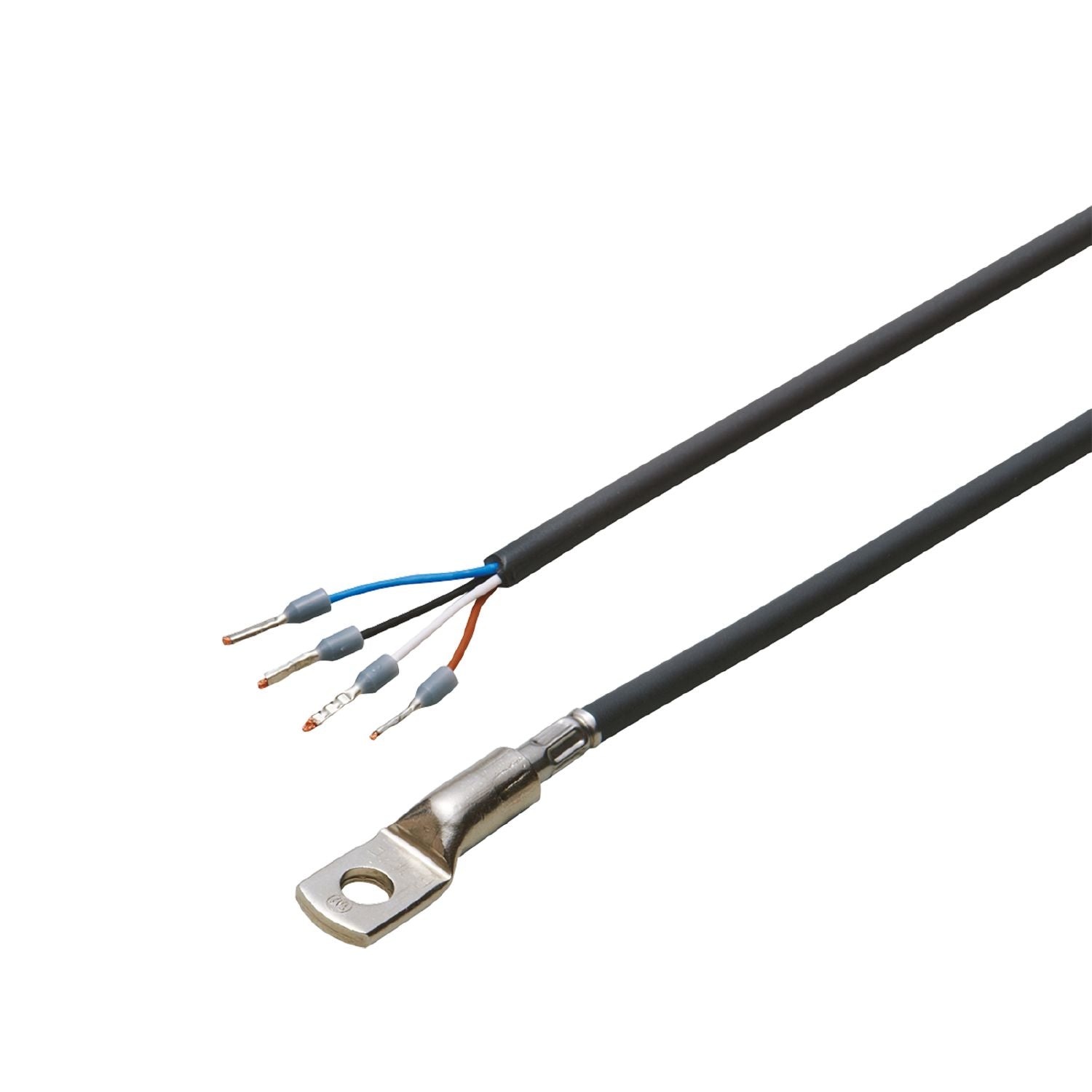

IFM TS2239 - Temperature cable sensor with bolt-on sensor TS-200-KL /US

Precise temperature measurement on machine surfaces.
For the connection to an evaluation unit.
Compact housing for installation where space is restricted.
High precision across the entire temperature measurement range.
Gold-plated contacts for reliable electrical connections

Measuring range	-40...90 °C -40...194 °F
Process connection	bolt-on sensor 12,5 x 8,7 x 47 mm

Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Installation	surface mount RTD for solid bodies

Insulation rating [V]	500
Protection class	III

Measuring/setting range

Measuring range	-40...90 °C -40...194 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	12 / 39;(values for a flat aluminium surface (anodised) using a conductive heat paste; reference values for moving water : 10 / 24 (< 0,1 m/s))

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	12683.9

Weight [g]	101.4
Housing	bolt-on sensor
Dimensions [mm]	12.5 x 8.7 x 47
Materials	stainless steel (1.4303 / 305 / 308); copper nickel-plated
Process connection	bolt-on sensor 12,5 x 8,7 x 47 mm

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR, Ø 4.9 mm; with wire end ferrules; 4 x 0.34 mm² (42 x Ø 0.1 mm )

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TS2239-00 — 05.06.2023 —
