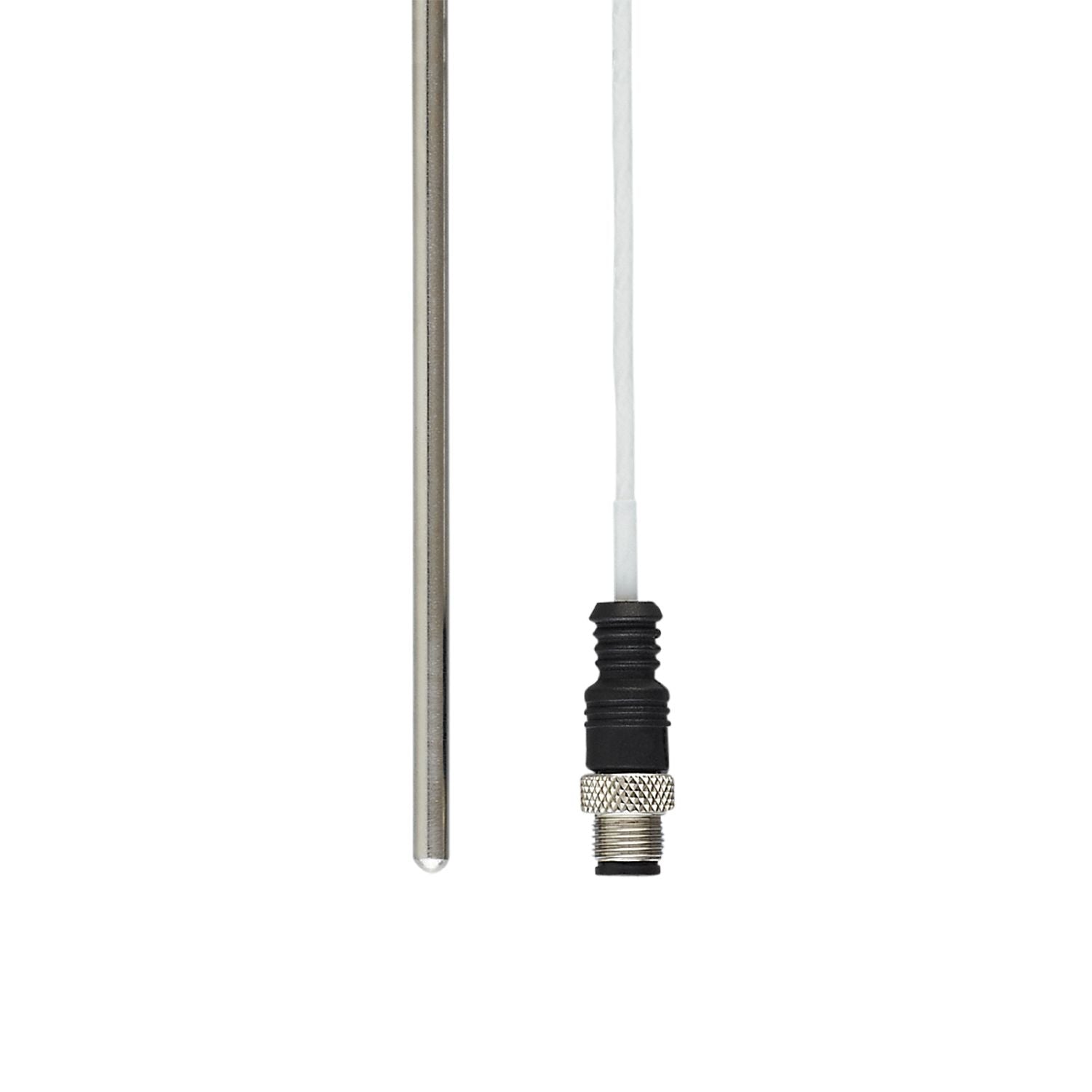

IFM TS2453 - Temperature cable sensor with process connection TS-200KLKD06 .../US

Precise temperature measurement in containers, tanks and pipes.
For the connection to an evaluation unit.
Easy process adaptation via clamp fitting or protective tube.
Very large temperature measurement range.
Simple and 100% sealed connection via M12 connector

Measuring range	-100...600 °C -148...1112 °F
Process connection	Ø 6 mm
Installation length EL [mm]	150;(medium temperatures < 200 °C: 200)

Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Media	liquids and gases
Minimum installation depth [mm]	15

Protection class	III

Measuring/setting range

Probe length L [mm]	200
Measuring range	-100...600 °C -148...1112 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	12 / 34;(to DIN EN 60751)

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	11415.5

Weight [g]	96.3
Dimensions [mm]	Ø 6
Materials	stainless steel (1.4571/316Ti ); PFA/PTFE
Materials (wetted parts)	stainless steel (1.4571/316Ti )
Process connection	Ø 6 mm
Probe diameter [mm]	6
Installation length EL [mm]	150;(medium temperatures < 200 °C: 200)

Remarks	The values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PTFE; temperature resistant up to 250 °C
Connection	Connector: 1 x M12; coding: A
