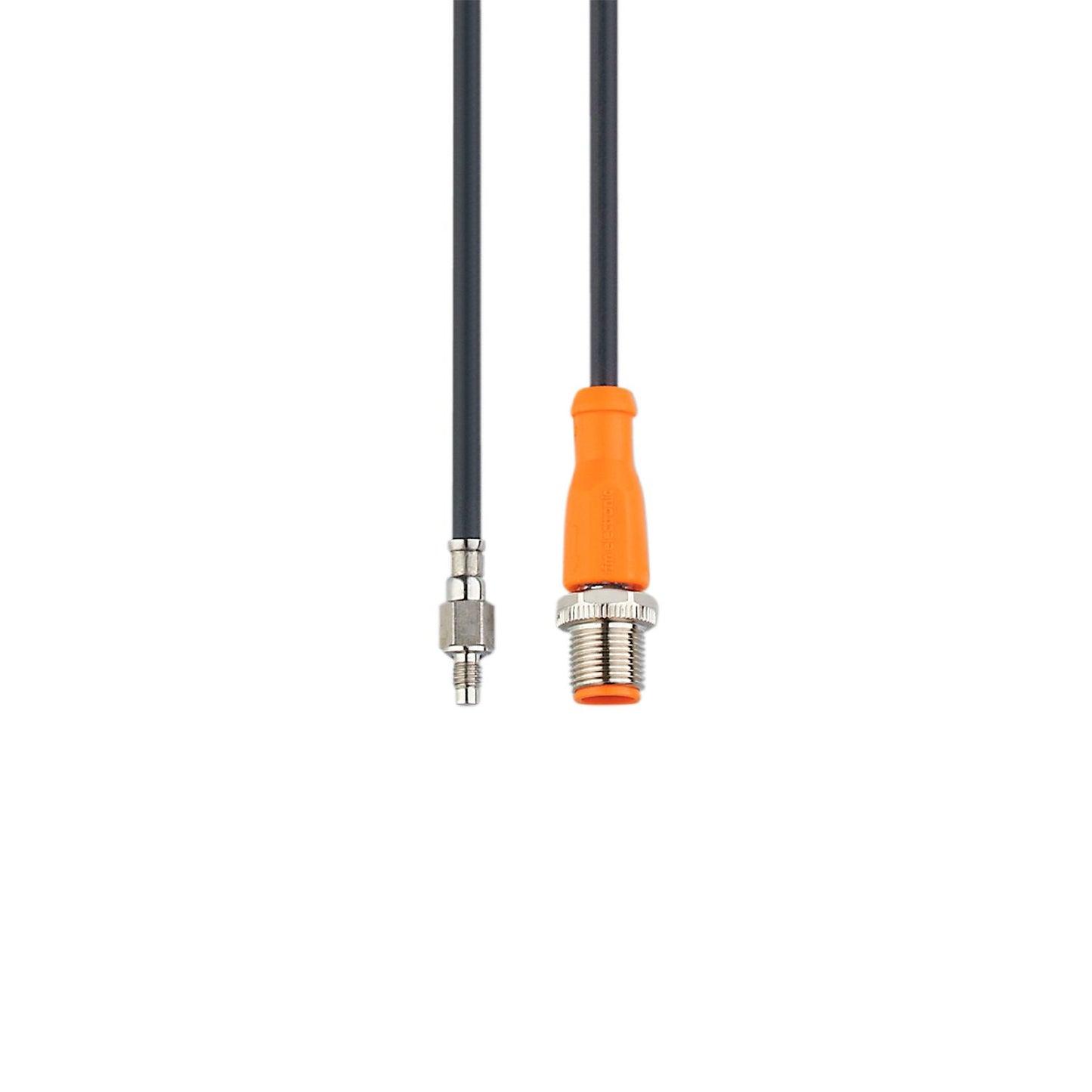

IFM TS2789 - Temperature cable sensor with screw-in sensor TS-PT100-SCREW-IN M5/2M PUR

Precise temperature measurement on machine surfaces.
For the connection to an evaluation unit.
Compact housing for installation where space is restricted.
High precision across the entire temperature measurement range.
Simple and 100% sealed connection via M12 connector

Measuring range	-40...90 °C -40...194 °F
Process connection	threaded connection M5 external thread

Special feature	Gold-plated contacts
Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Installation	surface mount RTD for solid bodies

Protection class	III

Measuring/setting range

Measuring range	-40...90 °C -40...194 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	3 / 8;(to DIN EN 60751)

Operating conditions

Protection	IP 67

Tests / approvals

Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 10 g (10...2000 Hz)
MTTF [years]	11415.5

Weight [g]	80.95
Housing	screw-in sensor
Dimensions [mm]	M5 / L = 26
Thread designation	M5
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	1.5
Process connection	threaded connection M5 external thread

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR
Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
