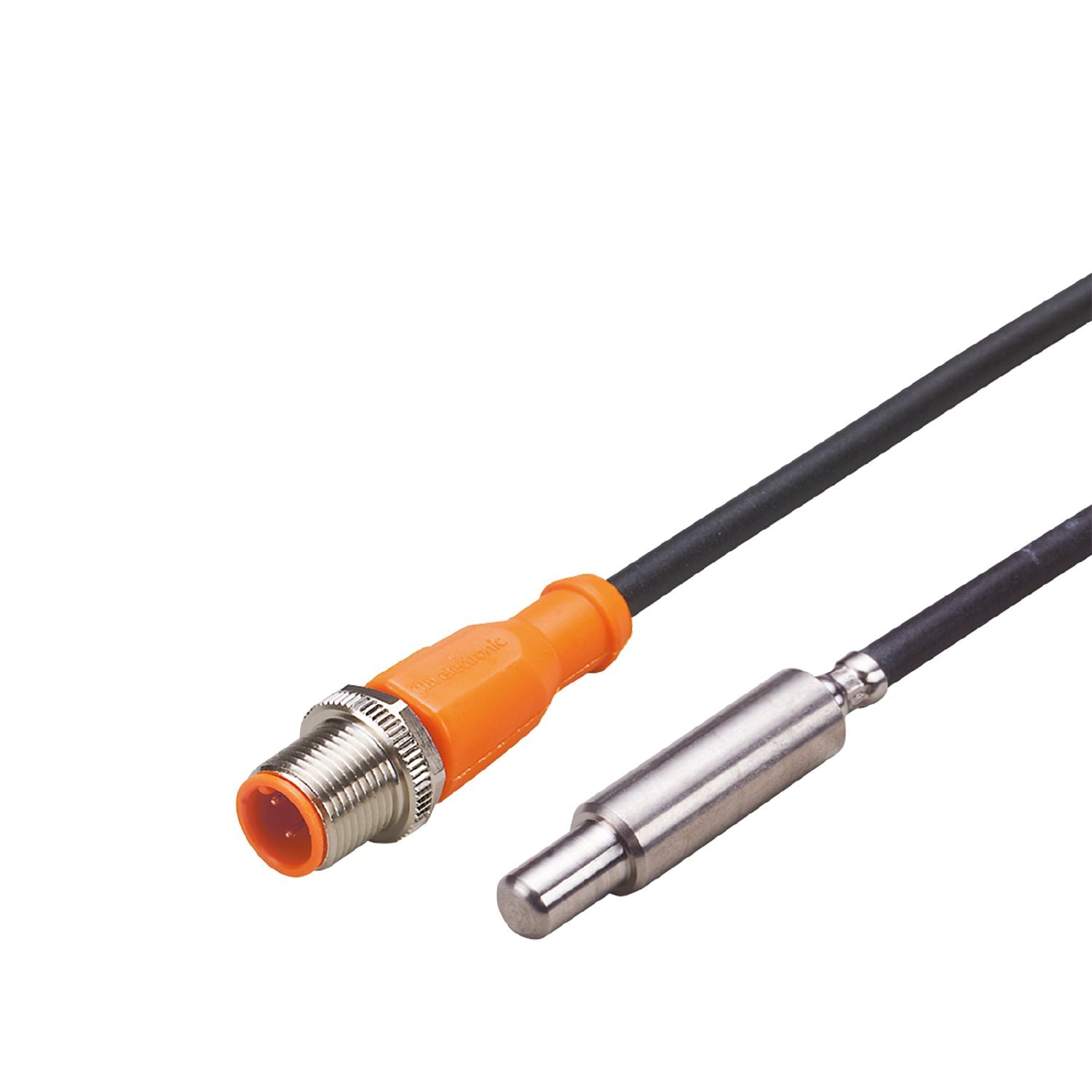

IFM TS5089 - Temperature cable sensor with process connection TS-500KLKD10-............./US/

Precise temperature measurement in containers, tanks and pipes.
For the connection to an evaluation unit.
Easy process adaptation via clamp fitting or protective tube.
High precision across the entire temperature measurement range.
Simple and 100% sealed connection via M12 connector

Measuring range	-40...90 °C -40...194 °F
Process connection	Ø 10 mm

Special feature	Gold-plated contacts
Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Media	liquids and gases
Minimum installation depth [mm]	15

Protection class	III

Measuring/setting range

Measuring range	-40...90 °C -40...194 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	6 / 25;(to DIN EN 60751)

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	11415.5

Weight [g]	193.6
Housing	measuring probe
Dimensions [mm]	Ø 10
Materials	stainless steel
Materials (wetted parts)	stainless steel (1.4404 / 316L)
Process connection	Ø 10 mm
Probe diameter [mm]	10

Remarks	The values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 5 m, PUR
Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
