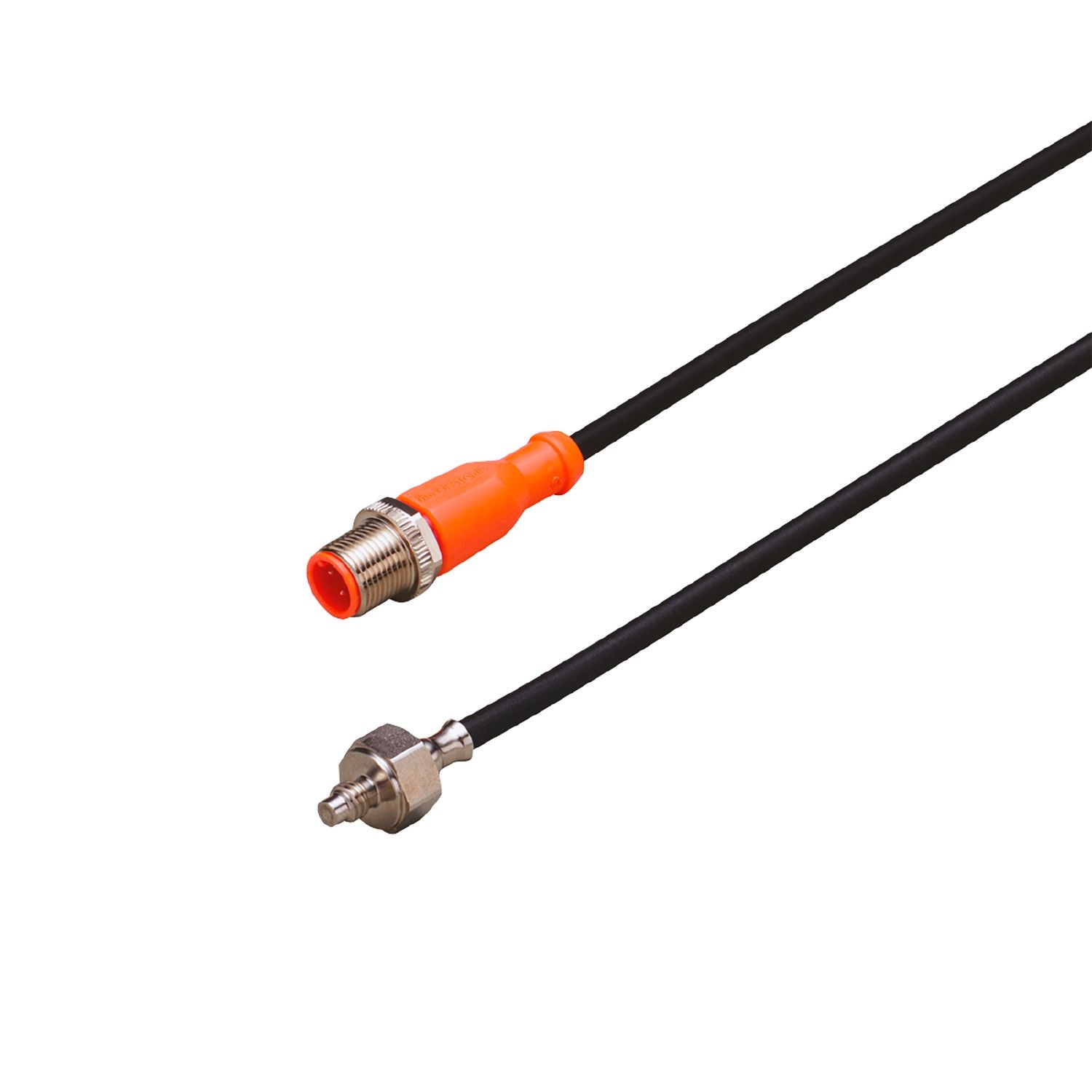

IFM TS9689 - Temperature cable sensor with process connection TS-035KLKM06...../US

Precise temperature measurement on machine surfaces.
For the connection to an evaluation unit.
Compact housing for installation where space is restricted.
High precision across the entire temperature measurement range.
Simple and 100% sealed connection via M12 connector

Measuring range	-40...90 °C -40...194 °F

Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Installation	surface mount RTD for solid bodies

Protection class	III
Connection to control monitor	TP / TR

Measuring/setting range

Measuring range	-40...90 °C -40...194 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	3 / 9;(to DIN EN 60751)

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	11415.5

Weight [g]	38.3
Housing	screw-in sensor
Dimensions [mm]	M6 / L = 26
Thread designation	M6
Materials	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.35 m, PUR
Connection	Connector: 1 x M12; coding: A
