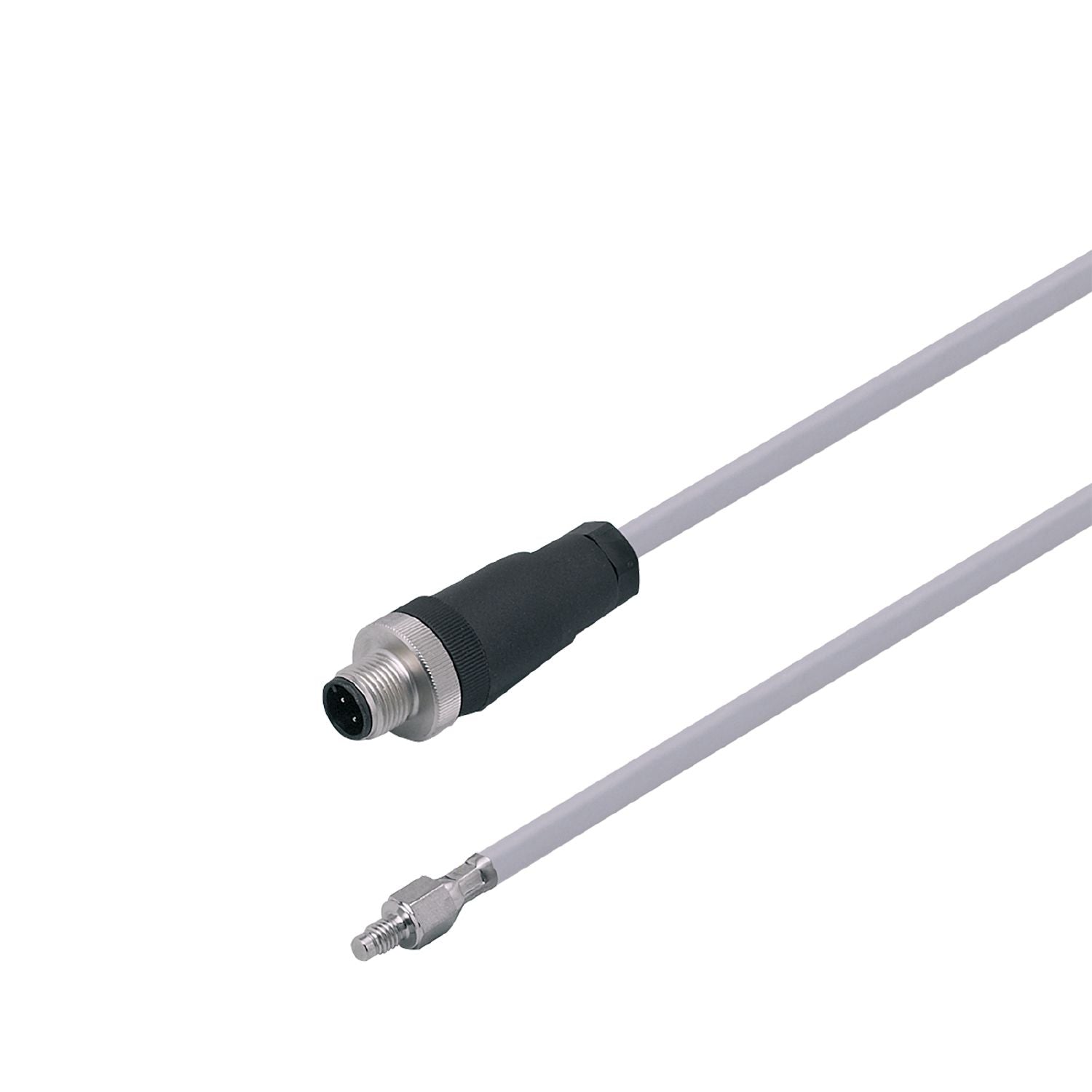

IFM TS9759 - Temperature cable sensor with process connection TS-050KL.M05-............./US/

Precise temperature measurement on machine surfaces.
For the connection to an evaluation unit.
Compact housing for installation where space is restricted.
Large temperature measurement range

Measuring range	-30...180 °C -22...356 °F

Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Installation	surface mount RTD for solid bodies

Protection class	III

Measuring/setting range

Measuring range	-30...180 °C -22...356 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	3 / 8;(to DIN EN 60751)

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	10377.8

Weight [g]	49.1
Housing	screw-in sensor
Dimensions [mm]	M5 / L = 25.7
Thread designation	M5
Materials	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.5 m, silicone
Connection	Connector: 1 x M12; coding: A
