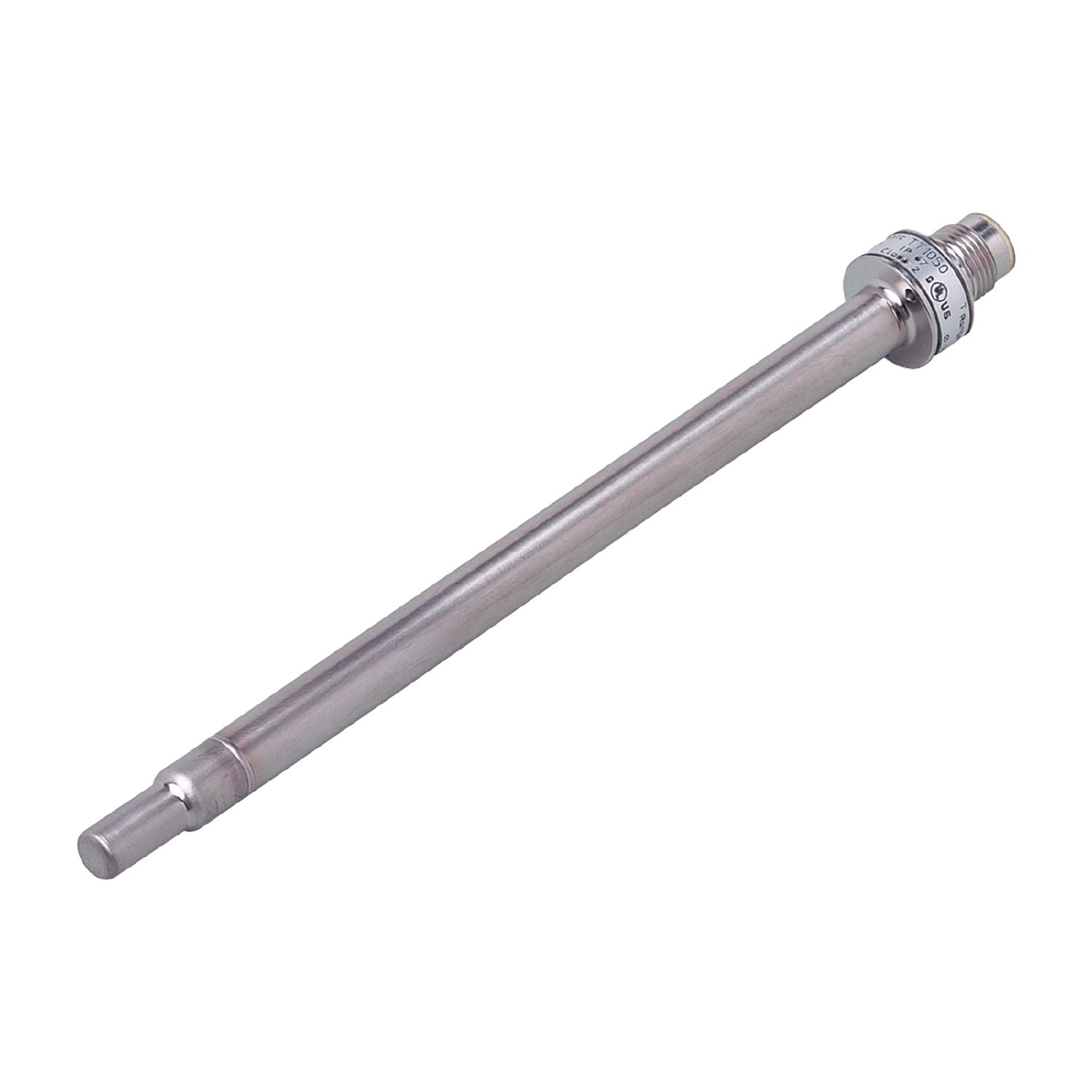

Precise temperature measurement in containers, tanks and pipes. For the connection to an evaluation unit. Very short response time for use in processes with fast temperature fluctuations. Robust stainless steel housing with high protection rating and high pressure rating. Variable process connection using adapters
Measuring range
-40...150 °C
-40...302 °F
Process connection
Ø 10 mm
Installation length EL [mm]
160
Special feature
Gold-plated contacts
Measuring element
1 x Pt 100;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
160
Minimum installation depth [mm]
15
Protection class
III
Measuring/setting range
Probe length L [mm]
160
Measuring range
-40...150 °C
-40...302 °F
Accuracy / deviations
Accuracy [K]
± (0,15 K + 0,002 x|t|)
Response times
Dynamic response T05 / T09 [s]
1 / 3;(to DIN EN 60751)
Operating conditions
Ambient temperature [°C]
-25...80
Note on ambient temperature
plug area
Storage temperature [°C]
-40...100
Protection
IP 68; IP 69K
Tests / approvals
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
10 g (10...2000 Hz)
MTTF [years]
22831
Weight [g]
54.2
Dimensions [mm]
Ø 10
Materials
stainless steel (1.4404 / 316L)
Materials (wetted parts)
stainless steel (1.4404 / 316L)
Process connection
Ø 10 mm
Probe diameter [mm]
10
Installation length EL [mm]
160
Remarks
The values for accuracy apply to flowing water.
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
