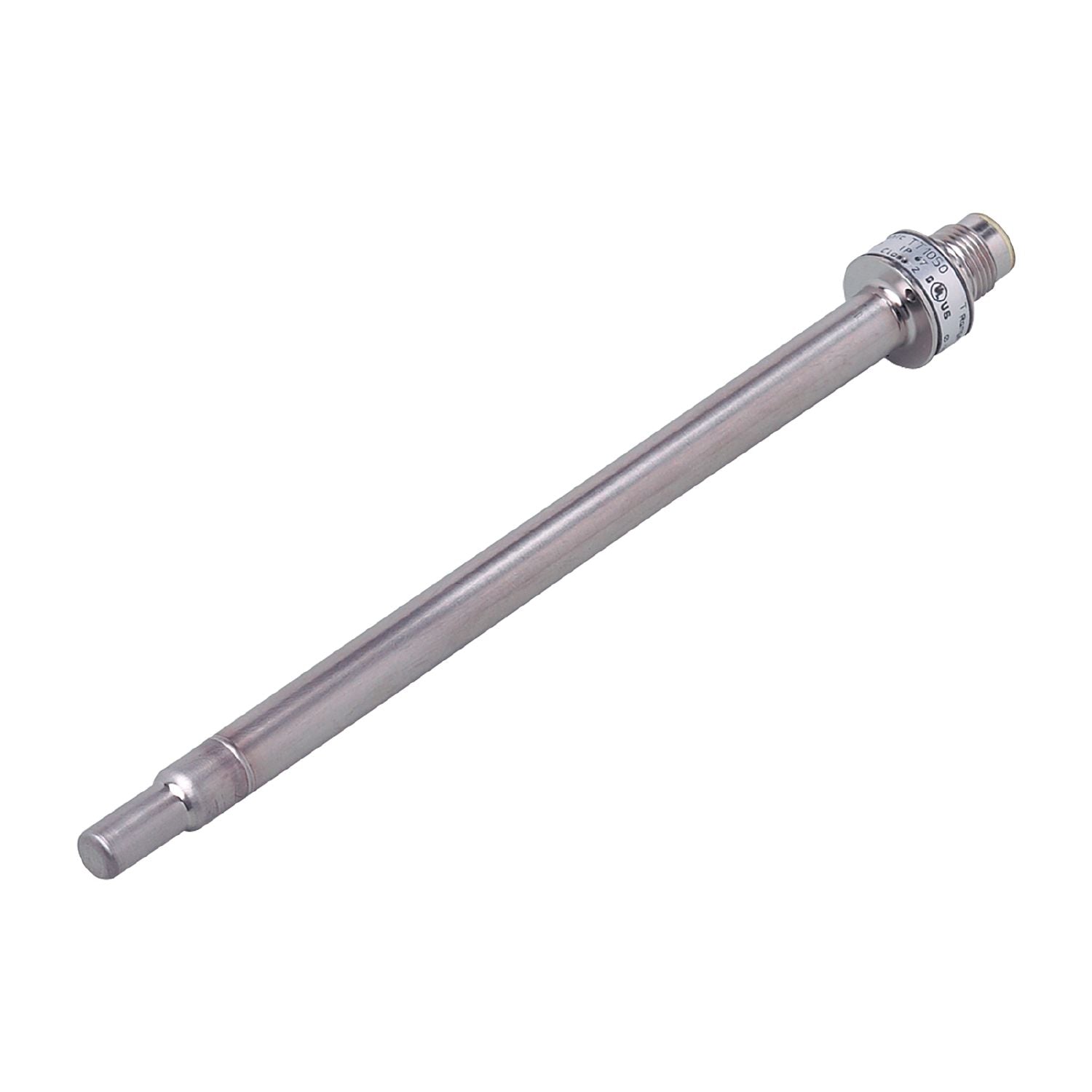

IFM TT5050 - Temperature probe sensor TT-500KBBD10-...../US/

Precise temperature measurement in containers, tanks and pipes.
For the connection to an evaluation unit.
Very short response time for use in processes with fast temperature fluctuations.
Robust stainless steel housing with high protection rating and high pressure rating.
Variable process connection using adapters

Measuring range	-40...150 °C -40...302 °F
Process connection	Ø 10 mm
Installation length EL [mm]	560

Special feature	Gold-plated contacts
Measuring element	1 x Pt 1000;(to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating [bar]	160
Minimum installation depth [mm]	15

Protection class	III

Measuring/setting range

Probe length L [mm]	560
Measuring range	-40...150 °C -40...302 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	1 / 3;(to DIN EN 60751)

Operating conditions

Ambient temperature [°C]	-25...80
Note on ambient temperature	plug area
Storage temperature [°C]	-40...100
Protection	IP 68; IP 69K

Tests / approvals

Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 5 g (10...2000 Hz)
MTTF [years]	22831

Weight [g]	147.3
Dimensions [mm]	Ø 10
Materials	stainless steel (1.4404 / 316L)
Materials (wetted parts)	stainless steel (1.4404 / 316L)
Process connection	Ø 10 mm
Probe diameter [mm]	10
Installation length EL [mm]	560

Remarks	The values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
