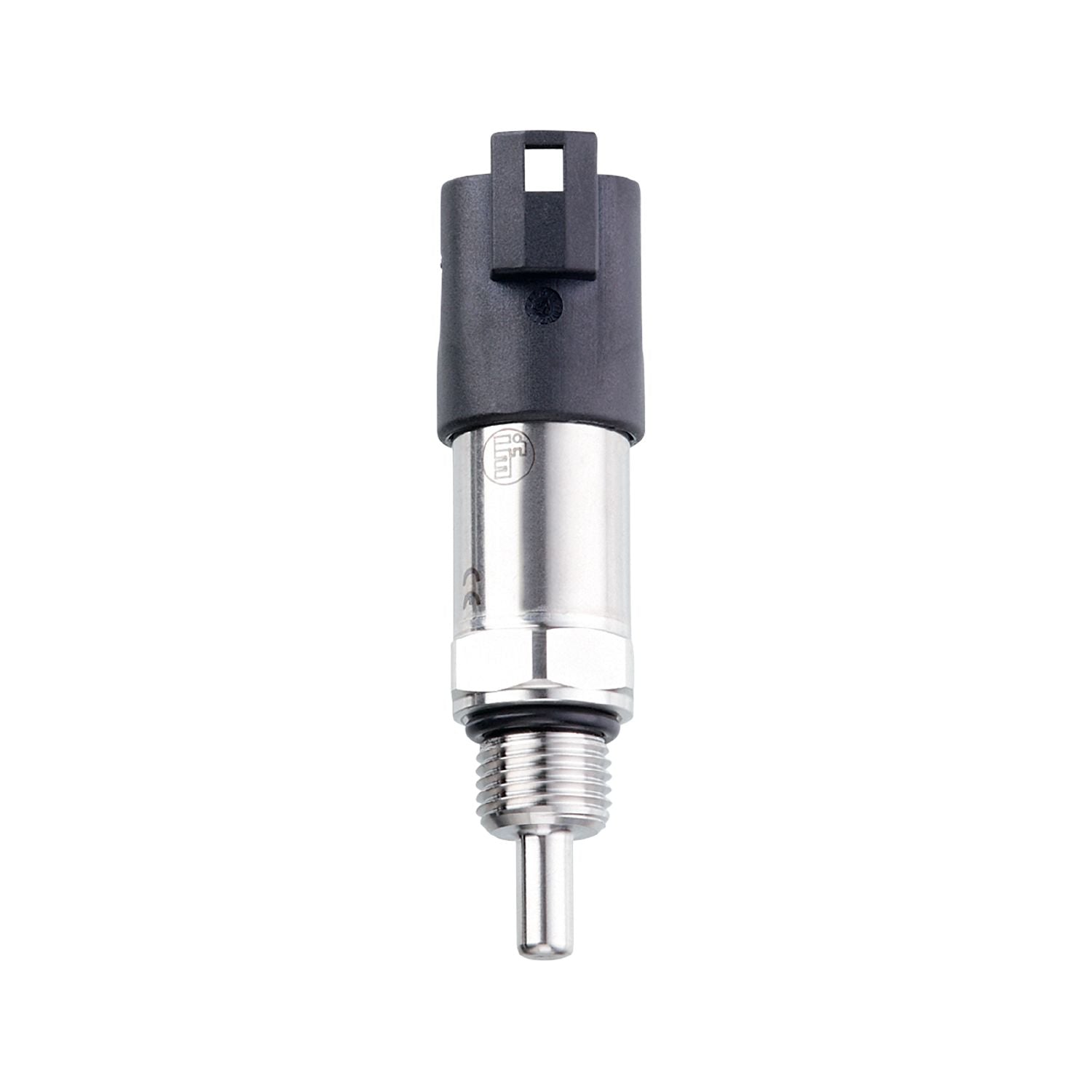

High precision across the entire temperature measurement range. AMP connector for the fast and easy connection to the on-board system. Particularly good response dynamics and very short power-on delay time. Robust stainless steel housing with very high pressure rating. High protection rating for the requirements of mobile machines
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range [°C]
0...100
Process connection
threaded connection SAE 6 external thread
Installation length EL [mm]
25
Measuring element
1 x Pt 1000;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
400
Operating voltage [V]
8...32 DC;("supply class 2" to cULus)
Current consumption [mA]
< 30
Protection class
III
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal
Number of analogue outputs
1
Analogue voltage output [V]
0.5...4.5
Min. load resistance [Ω]
2000
Short-circuit protection
yes
Overload protection
yes
Measuring/setting range
Measuring range [°C]
0...100
Resolution
Resolution of analogue output [K]
0.1
Accuracy / deviations
Precision analogue output [K]
± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]
0,1;(in case of deviation from the reference condition 25 ± 5 °C)
Response times
Dynamic response T05 / T09 [s]
1 / 3;(to DIN EN 60751)
Software / programming
Temperature range [°C]
0...100
Operating conditions
Ambient temperature [°C]
-40...100
Storage temperature [°C]
-40...100
Protection
IP 68; IP 69K
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
849
Weight [g]
105.689
Materials
stainless steel (1.4404 / 316L); PPS; FKM
Materials (wetted parts)
stainless steel (1.4404 / 316L); FKM
Process connection
threaded connection SAE 6 external thread
Probe diameter [mm]
6
Installation length EL [mm]
25
Remarks
The values for accuracy apply to flowing water.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x DEUTSCH connector (DT04-3P)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TU4707-00 — 02.10.2019 —
