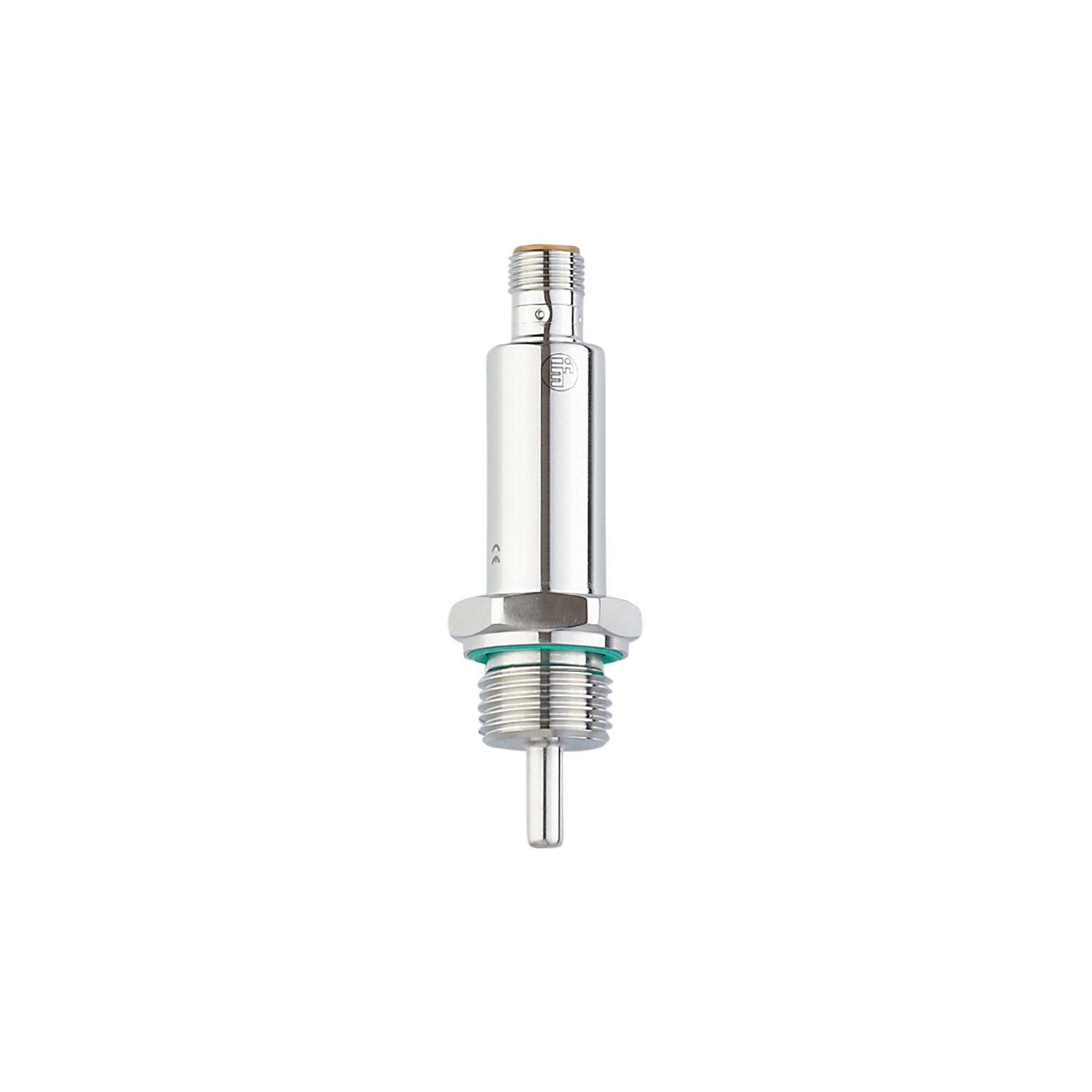

High precision across the entire temperature measurement range. Particularly good response dynamics and very short power-on delay time. Robust stainless steel housing with very high pressure rating. Two programmable switching outputs. Continuous transmission of process values via IO-Link
Number of inputs and outputs
Number of digital outputs: 2
Measuring range [°C]
-50...150
Communication interface
IO-Link
Process connection
threaded connection G 1/2
Installation length EL [mm]
30
Special feature
Gold-plated contacts
Measuring element
1 x Pt 1000;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
300
Note on pressure rating
sensor
When mounted in adapters the specifications of the adapter data sheet apply.
Operating voltage [V]
18...32 DC;("supply class 2" to cULus)
Current consumption [mA]
< 50
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
1
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Output signal
switching signal; IO-Link;(configurable)
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Measuring/setting range
Measuring range [°C]
-50...150
Set point SP [°C]
-49.8...150
Reset point rP [°C]
-50...149.8
In steps of [°C]
0.1
Resolution
Resolution of switching output [K]
0.1
Accuracy / deviations
Switch point accuracy [K]
± 0,3
Temperature drift per 10 K [K]
0.1 **)
Response times
Dynamic response T05 / T09 [s]
1 / 3;(to DIN EN 60751)
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
Operating conditions
Ambient temperature [°C]
-40...80
Note on ambient temperature
at medium temperature: < 125 °C
-40...50 °C
at medium temperature: < 150 °C
Storage temperature [°C]
-40...100
Protection
IP 69K
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
542.6
UL approval
UL Approval no.
K019
Weight [g]
110
Materials
stainless steel (1.4404 / 316L); FKM
Materials (wetted parts)
stainless steel (1.4404 / 316L); O-ring: FKM
Tightening torque [Nm]
45
Process connection
threaded connection G 1/2
Probe diameter [mm]
6
Installation length EL [mm]
30
Remarks
The values for accuracy apply to flowing water.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TV7405-00 — 13.04.2023 —
