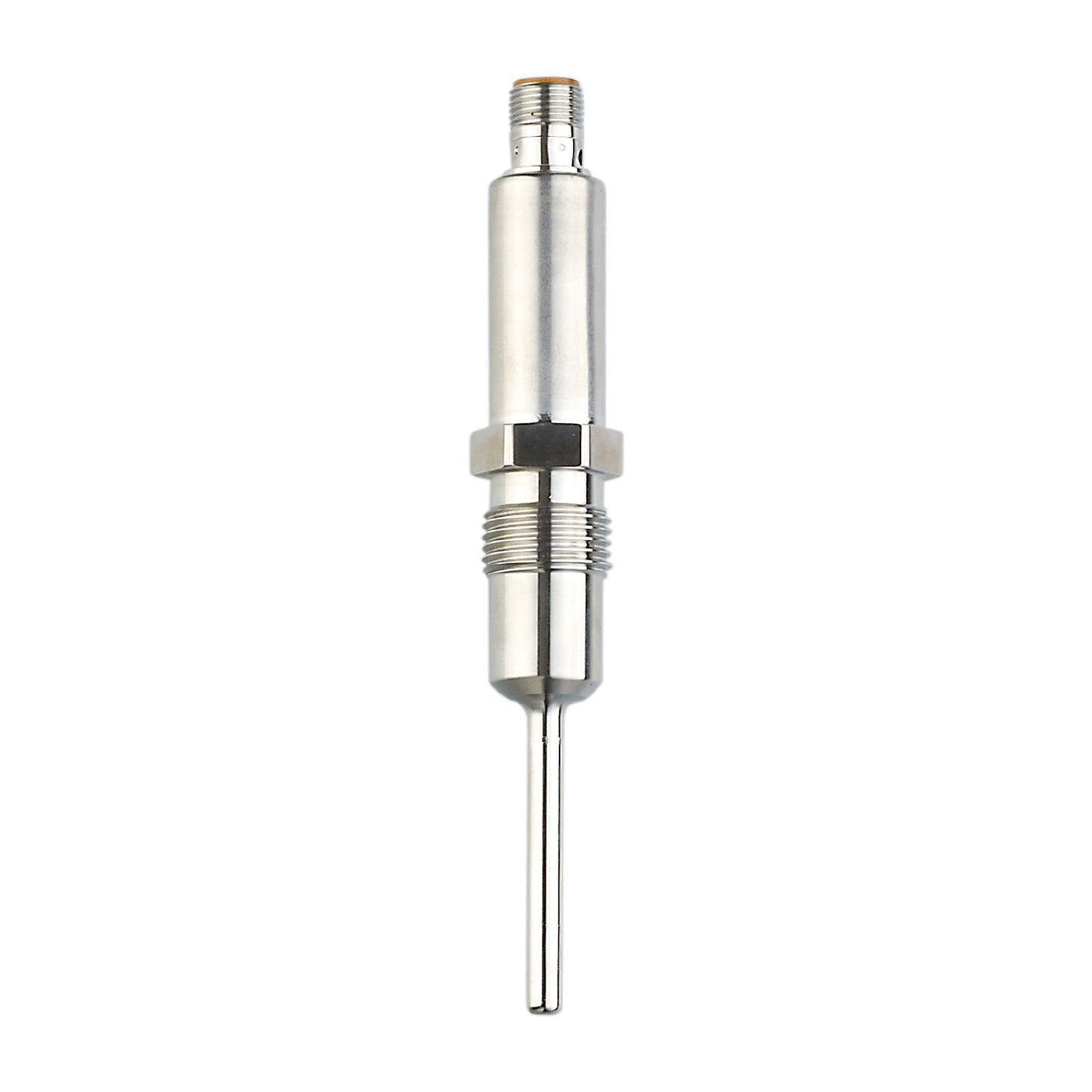

Hygienic design for the requirements of the food and beverage industry. Particularly good response dynamics and very short power-on delay time. High precision across the entire temperature measurement range. Robust stainless steel housing with high protection rating and high pressure rating
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range [°C]
-50...200
Process connection
threaded connection G 1/2 sealing cone
Installation length EL [mm]
50
Measuring element
1 x Pt 1000;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
160
Vacuum resistance [mbar]
-1000
Operating voltage [V]
18...32 DC;("supply class 2" to cULus)
Current consumption [mA]
< 50
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
2
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal
Number of analogue outputs
1
Analogue current output [mA]
4...20
Max. load [Ω]
250;((18...19 V); 19...32 V: 300 Ω)
Short-circuit protection
yes
Overload protection
yes
Measuring/setting range
Measuring range [°C]
-50...200
Factory setting
0...140 °C
Resolution
Resolution of analogue output [K]
0.04
Accuracy / deviations
Precision analogue output [K]
± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]
0,1;(in case of deviation from the reference condition 25 ± 5 °C)
Response times
Dynamic response T05 / T09 [s]
< 0,5 / < 2
Operating conditions
Ambient temperature [°C]
-25...80
Note on ambient temperature
at medium temperature: < 160 °C
-25...60 °C
at medium temperature: < 200 °C
Storage temperature [°C]
-40...100
Protection
IP 67; IP 68; IP 69K
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
10 g (10...2000 Hz)
MTTF [years]
334
Weight [g]
192
Dimensions [mm]
Ø 18.7
Materials
stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)
stainless steel (1.4404 / 316L) electropolished
Process connection
threaded connection G 1/2 sealing cone
Surface characteristics Ra/Rz of the wetted parts
Ra: < 0.8
Probe diameter [mm]
6
Installation length EL [mm]
50
Remarks
MS = set measuring span
The values for accuracy apply to flowing water.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
