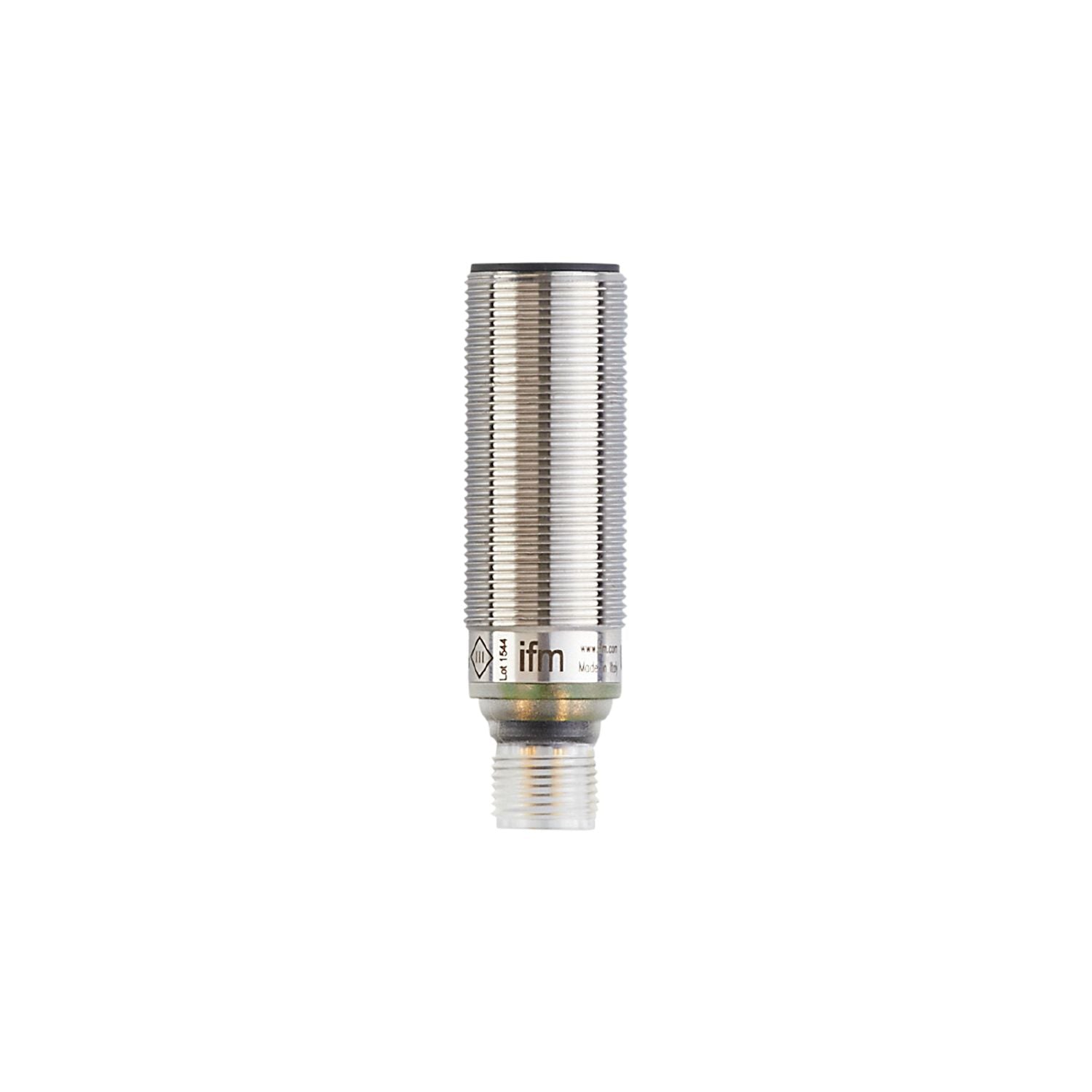

IFM UGT500 - Ultrasonic sensor UGB00300EOKG/US

Particularly space-saving design for use where space is restricted.
Output function normally open / normally closed programmable.
Non-contact detection independent of colour, transparency or surface characteristics of the object.
Easy adjustment of the device function via programming wire.
Clearly visible LED for indicating switching status and echo

Electrical design	PNP
Output function	normally open / normally closed;(parameterisable)
Sensing range [mm]	40...300;(Target: 200 x 200 mm)
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60.5

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3
Converter frequency [kHz]	300

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Inputs

Synchronisation input	no
Multiplex input	no

Outputs

Total number of outputs	1
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	8
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	40...300;(Target: 200 x 200 mm)
Blind zone [mm]	40
Angle of aperture cylindrical [°]	15;(±2)
Max. deviation from the 90° angle sensor/object [°]	± 4

Accuracy / deviations

Temperature compensation	yes
Hysteresis [%]	< 1
Switch point drift [%]	-5...5
Repeatability	1 %
Resolution [mm]	2
Notes on the accuracy / deviation	The indicated values are reached after a warm-up time of min. 20 minutes

Operating conditions

Ambient temperature [°C]	-20...70
Storage temperature [°C]	-30...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 Class A
Vibration resistance	EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance	EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
MTTF [years]	202
UL approval	Ta -20...70 °C power supply Class 2 File number UL E174191

Weight [g]	78.5
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60.5
Thread designation	M18 x 1
Materials	stainless steel (1.4404 / 316L); PA; epoxy glass ceramics
Tightening torque [Nm]	50

Displays / operating elements

Display	switching status 1 x LED, yellow echo 1 x LED, green

Accessories

Items supplied	lock nuts: 2, stainless steel

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

	1: distance 2: Detection zone 3: switch-on/switch-off graph 4: Target 100 x 100 mm 5: 50% of the target in the detection zone 6: switch point
