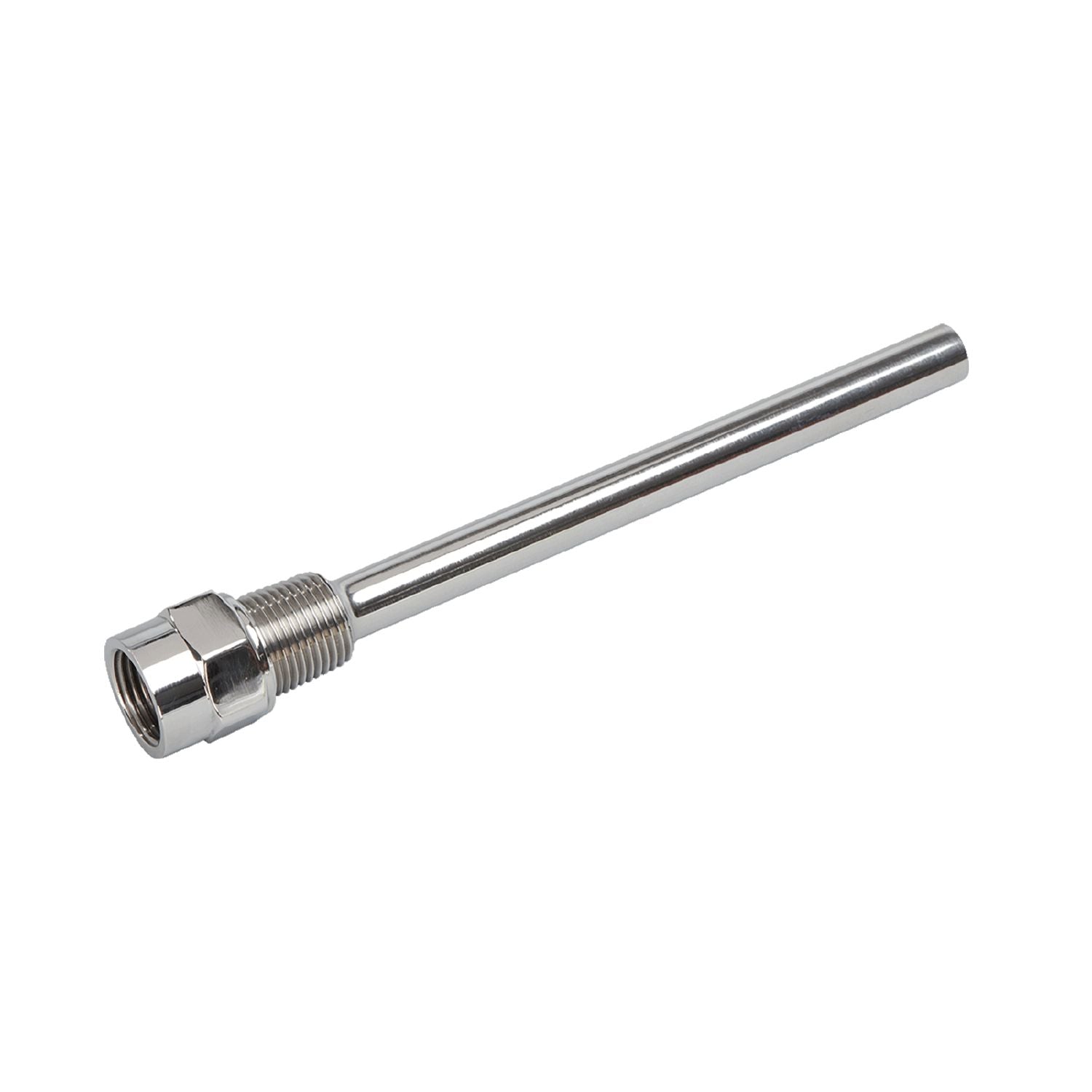

IFM UT0010 - Thermowell for temperature sensors THERMOWELL, 10MMx200MM, 1/2NPT

Efficient long-time protection of the temperature sensor.
Protection against aggressive media and high process pressures.
Easy replacement of the temperature sensor during operation

Design	for temperature sensors EL = 200 mm
Pressure rating [bar]	16

Measuring/setting range

Probe length L [mm]	172

Weight [g]	149.6
Materials	stainless steel (316 / 1.4401)
Sensor connection	1/2" NPT Ø 10 mm
Process connection	1/2" NPT

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — UT0010-00 — 06.02.2012 —
