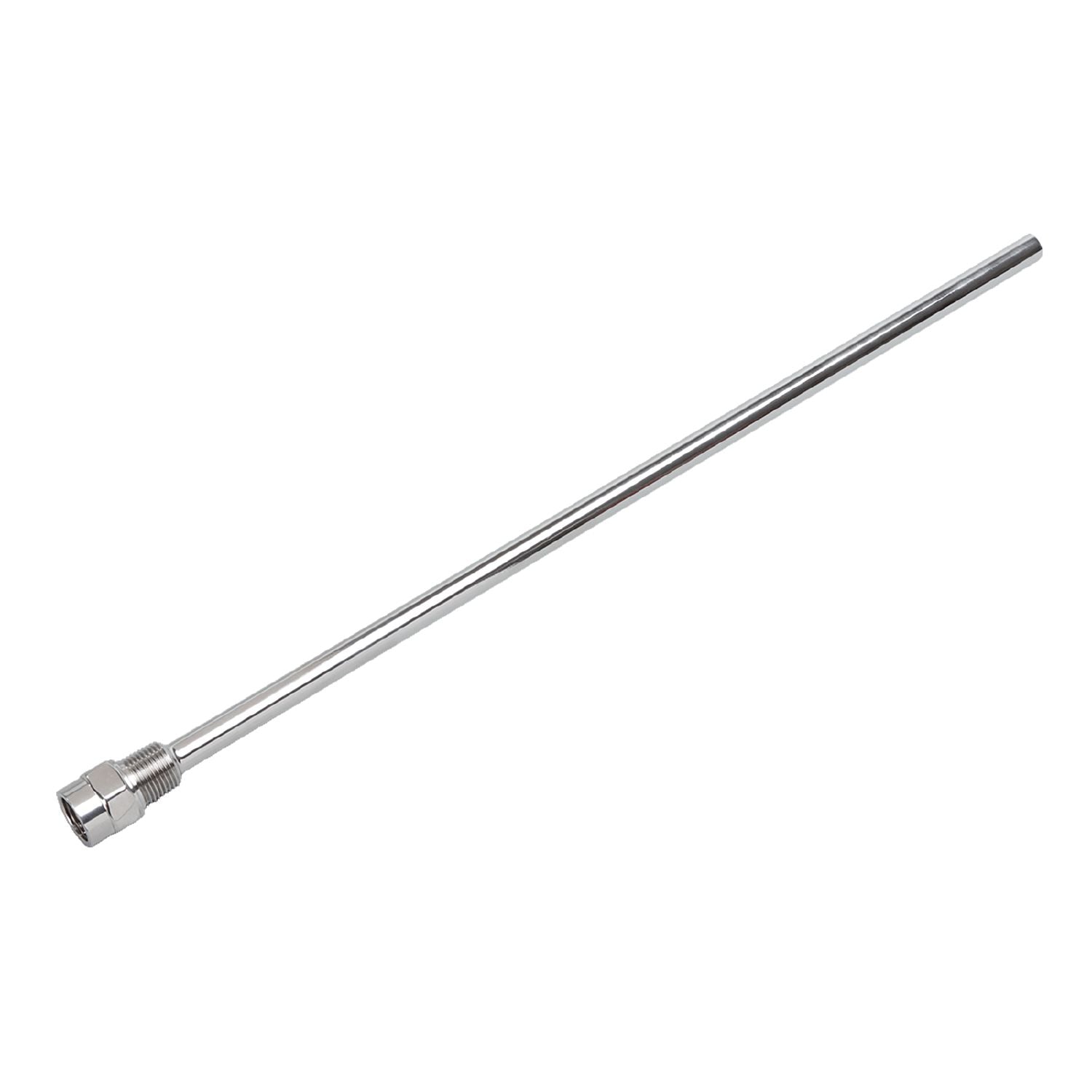

IFM UT0012 - Thermowell for temperature sensors THERMOWELL, 10MMx500MM, 1/2NPT

Efficient long-time protection of the temperature sensor.
Protection against aggressive media and high process pressures.
Easy replacement of the temperature sensor during operation

Design	for temperature sensors EL = 500 mm
Pressure rating [bar]	16

Measuring/setting range

Probe length L [mm]	472

Weight [g]	250.5
Materials	stainless steel (316 / 1.4401)
Sensor connection	1/2" NPT Ø 10 mm
Process connection	1/2" NPT

Pack quantity	1 pcs.
