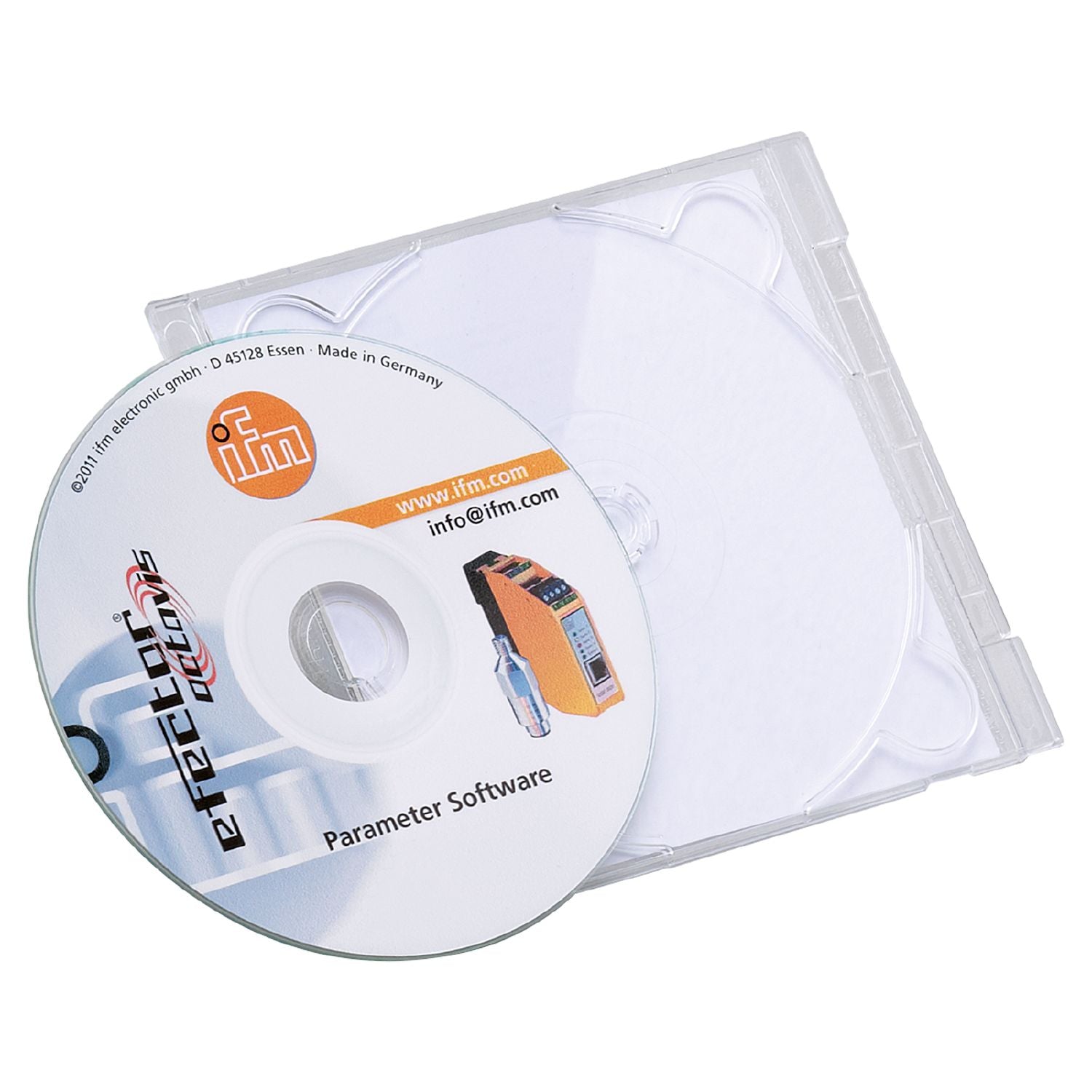

IFM VES004 - Parameter setting software for vibration diagnostic electronics PARAMETER-SW

For easy parameter setting and set-up of vibration monitoring systems.
Visualisation of the calculated object values and raw data from vibration sensors.
Configuration of the fieldbus interfaces (Profinet, EtherNet/IP, Modbus TCP).
Simple guided creation of monitoring tasks.
Tree structure for a structured administration of devices and data

Application	Parameter setting software for vibration diagnostic electronics

Software / programming

Operating system	Windows 7 SP1 / 8 / 8.1 / 10; Windows Server 2008 R2 SP1; Windows Server 2012 / R2; Windows Server 2016; Windows Server 2019

System requirements

Min. number of CPU cores	2
Min. RAM	2 GB
Min. graphic resolution	1024 x 768
Required device interface	LAN Adapter - RJ45
Additionally required software	Windows 10 required for Windows versions older than Windows 10: Visual C++ Redistributable Package

Weight [g]	22.5

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VES004-00 — 16.06.2015 —
