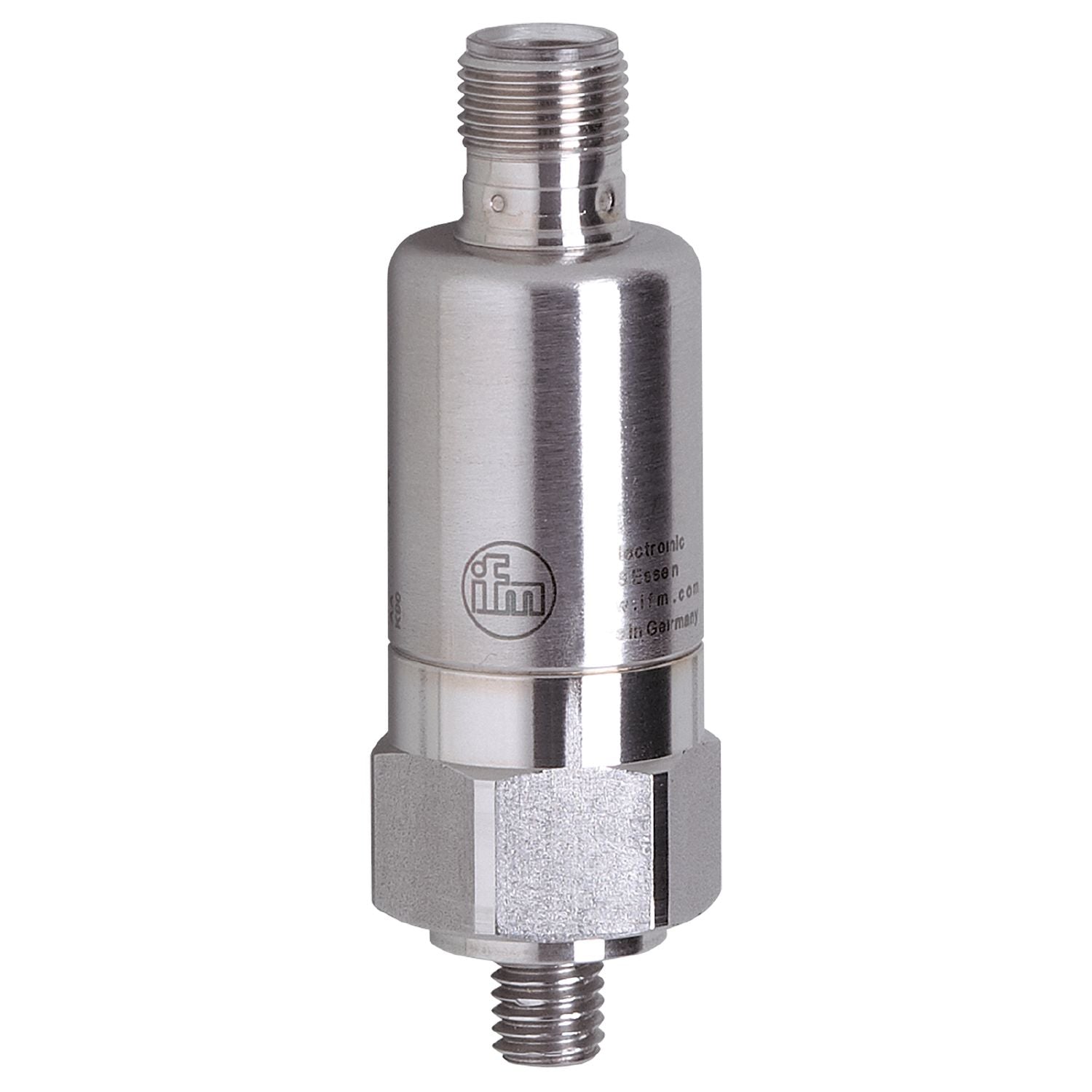

IFM VTV121 - Vibration transmitter VIBRATION TRANSMITTER

Reliable permanent monitoring of the overall vibration to DIN ISO 10816.
Two-wire technology.
Precise linearized analogue output.
Large operating temperature range and high protection rating.
Compact and robust housing for the requirements of harsh industrial environments

Measuring range of vibration [mm/s]	0...50;(RMS)
Frequency range [Hz]	10...1000

Application	vibration transmitter to ISO 10816

Operating voltage [V]	9.6...32 DC
Protection class	III
Sensor type	microelectromechanical system (MEMS)

Inputs / outputs

Total number of inputs and outputs	1

Outputs

Analogue current output [mA]	4...20
Max. load [Ω]	< (Ub - 9,6 V) x 50; Ub = 24 V: 720

Measuring/setting range

Measuring range of vibration [mm/s]	0...50;(RMS)
Frequency range [Hz]	10...1000
Number of measurement axes	1

Accuracy / deviations

Measuring error [% of the final value]	< ± 3
Repeatability	< 0,5;(% of the final value)
Linearity deviation	0,25 %

Operating conditions

Ambient temperature [°C]	-30...125
Note on ambient temperature	UL application: < 70 °C
Storage temperature [°C]	-30...125
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g 11 ms 500 g 1 ms
Vibration resistance	DIN EN 60068-2-6 20 g / 10...3000 Hz
MTTF [years]	868

Weight [g]	124
Type of mounting	set screw
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	8

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
