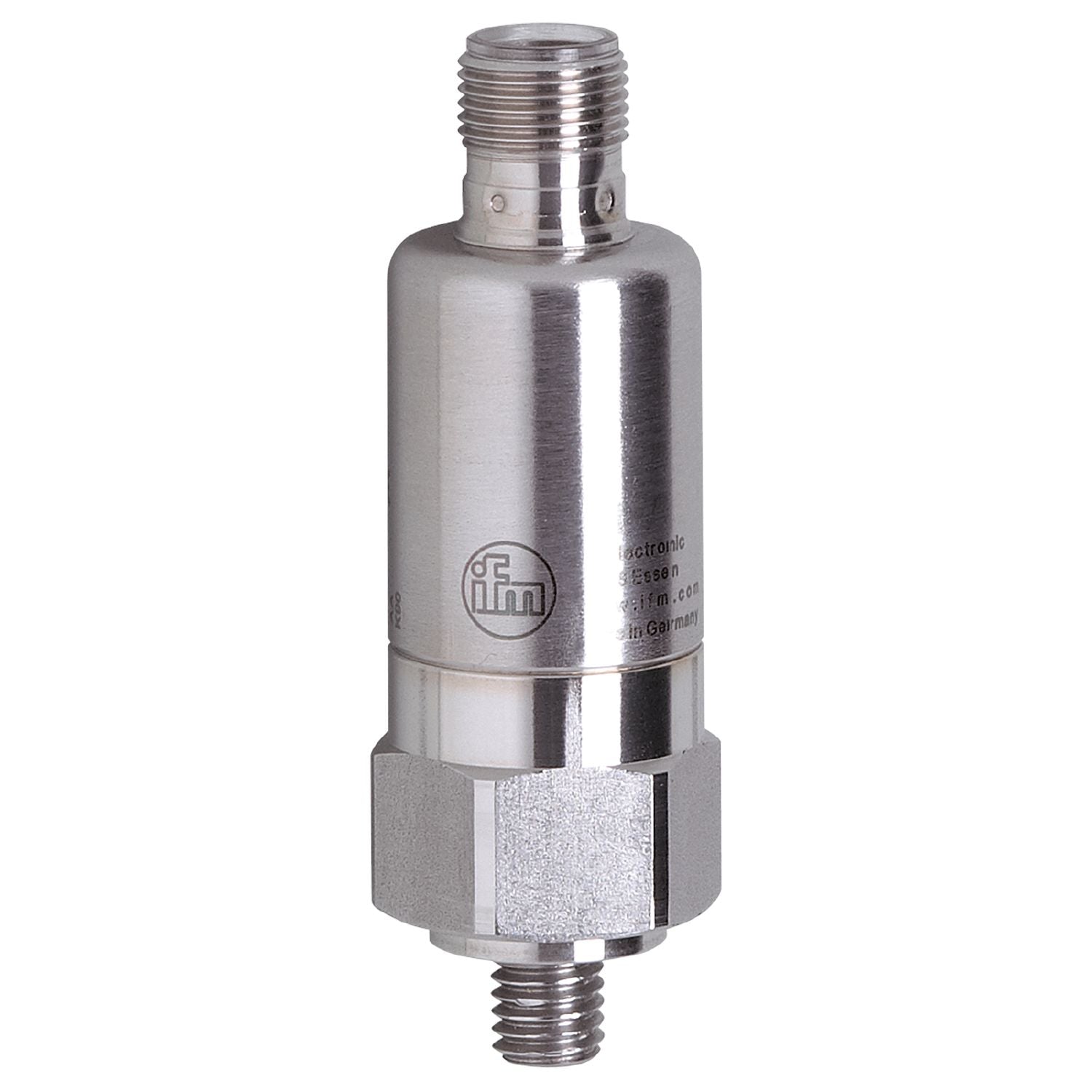

Reliable permanent monitoring of the overall vibration to DIN ISO 10816. Two-wire technology. Precise linearized analogue output. Large operating temperature range and high protection rating. Compact and robust housing for the requirements of harsh industrial environments
Measuring range of vibration [mm/s]
0...25;(RMS)
Frequency range [Hz]
10...1000
Application
vibration transmitter to ISO 10816
Operating voltage [V]
9.6...32 DC
Protection class
III
Sensor type
microelectromechanical system (MEMS)
Inputs / outputs
Total number of inputs and outputs
1
Outputs
Analogue current output [mA]
4...20
Max. load [Ω]
< (Ub - 9,6 V) x 50; Ub = 24 V: 720
Measuring/setting range
Measuring range of vibration [mm/s]
0...25;(RMS)
Frequency range [Hz]
10...1000
Number of measurement axes
1
Accuracy / deviations
Measuring error [% of the final value]
< ± 3
Repeatability
< 0,5;(% of the final value)
Linearity deviation
0,25 %
Operating conditions
Ambient temperature [°C]
-30...125
Note on ambient temperature
UL application: < 80 °C
Storage temperature [°C]
-30...125
Protection
IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
50 g 11 ms
500 g 1 ms
Vibration resistance
DIN EN 60068-2-6
20 g / 10...3000 Hz
MTTF [years]
868
Weight [g]
123.5
Type of mounting
set screw
Materials
stainless steel (1.4404 / 316L)
Tightening torque [Nm]
8
Accessories
Items supplied
set screw: 1 x 1/4"-28 UNF / M8 x 1,25 mm
set screw: 1 x 1/4"-28 UNF
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
