Rittal

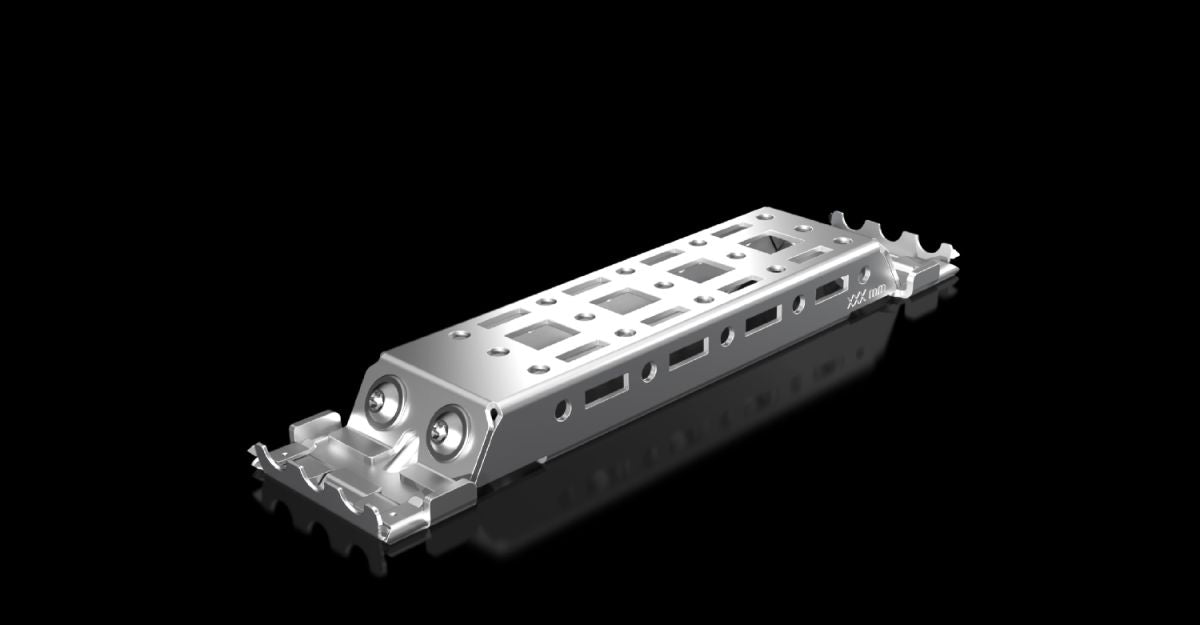

Rittal AX 2394.210, Rail for interior installation AX
Rittal AX 2394.210, Rail for interior installation AX
Regular price
€42,91
Regular price
Sale price
€42,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:AX 2394.210
For mounting in the enclosure, no machining required. Suitable for mounting on the sides and roof. Creates additional mounting space e.g. for VX punched section with mounting flange 23 x 64 mm, VX punched section with mounting flange 14 x 39 mm, enclosure lights, door-operated switch, door stay, VX cable clamp rails and support rails.
| Article number: | AX 2394.210 |
| Product description | For mounting in the enclosure, no machining required. Suitable mounting on the side, base and roof using the locators integrated into the enclosure. Variable with 2 rows of system punchings, creates additional mounting space e.g. for: Punched section with mounting flange 14 x 39 mm, enclosure lights, door-operated switch, door stay, cable conduit holder. |
| Benefits | Modular system for AX |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Rail for interior installation AXAdaptorAssembly parts |
| Note | For installing the LED system light, either VX punched sections with mounting flanges 23 x 64 mm or mounting bracket for interior installation will be required. |
| To fit | Enclosure type: AXDepth: = 210 mm |
| Packs of | 4 pc(s). |
| Net weight | 0.8 kg |
| Gross weight | 0.9 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177965683 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | Rail for interior installation in AX compact enclosure, for depth: 210 mm |
