Rittal

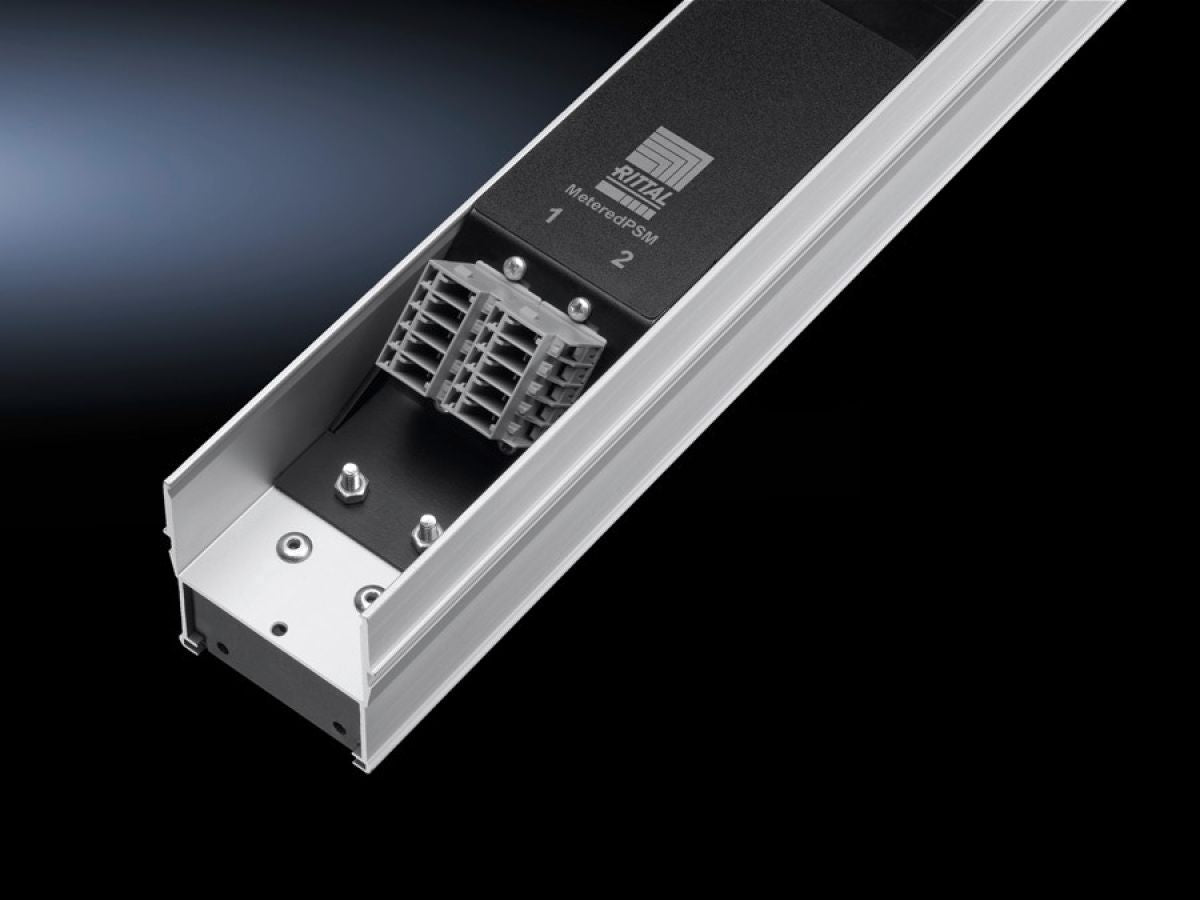

Rittal DK 7856.010, PSM busbars
Rittal DK 7856.010, PSM busbars
Regular price
€219,98
Regular price
Sale price
€219,98
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7856.010
One or two infeeds, with on or three phases, redundant after changing the plug-in module's direction of connection. With measurement option in conjunction with the CMC III system.
| Article number: | DK 7856.010 |
| Design | With 2 infeeds (jack), 3-phase redundancy |
| Product description | The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. This can even be done whilst the system is operational, because the support section is shock hazard-protected. |
| Benefits | Modules may be retrofitted whilst operational. |
| Technical specifications | Each plug-in module picks off a phase on the support rail, either from infeed or from the redundant infeed, depending on the direction of connection. |
| Material | Aluminium section, natural anodised |
| Type of electrical connection | WAGO X-COM |
| Qty. | 2 |
| Phases per infeed | 3~ |
| Rated current (max.) | 16 A |
| Module slots (max.) | 4 |
| To fit | Enclosure type: TS 8TS ITVX ITHeight: 1,200 mm |
| Operating temperature range | 5 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Storage temperature range | -20 °C...60 °C |
| Packs of | 1 pc(s). |
| Net weight | 2.089 kg |
| Gross weight | 2.24 kg |
| Customs tariff number | 85369001 |
| EAN | 4028177402461 |
| ETIM 9 | EC002762 |
| ECLASS 8.0 | 27371306 |
| Product description | DK PSM busbar, 4-way, 3~, 16 A, Infeed: 2, For H: 1200 mm |
