Rittal DK 7856.100, PSM socket modules
Rittal DK 7856.100, PSM socket modules
Regular price
€67,61
Regular price
Sale price
€67,61
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:DK 7856.100
The various modules may be inserted into the support rail in any combination.
| Article number: | DK 7856.100 |
| Design | non-switchable |
| Product description | The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. The various modules, earthing pins, IEC320 etc. may be inserted into the support rail in any combination. This is easily achieved, even by non-electricians, thanks to the shock hazard protected plug & play system. |
| Material | Section: Aluminium, anodisedSocket inserts: Plastic (PA6 GF 30 V1) |
| Length | 250 mm |
| Type of electrical connection | WAGO WINSTA MIDI |
| Phases per infeed | 1~ |
| Thermal overcurrent protection | – |
| Rated operating voltage | 110 V – 230 V AC, 50/60 Hz |
| Rated current (max.) | 16 A |
| Required number of module slots | 1 |
| Dimensions | Length: 250 mm |
| Operating temperature range | 5 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Sockets | 4 x D, earthing-pin (type F, CEE 7/4) |
| Packs of | 1 pc(s). |
| Net weight | 0.3 kg |
| Gross weight | 0.36 kg |
| Customs tariff number | 85369001 |
| EAN | 4028177402553 |
| ETIM 9 | EC000330 |
| ECLASS 8.0 | 27142604 |

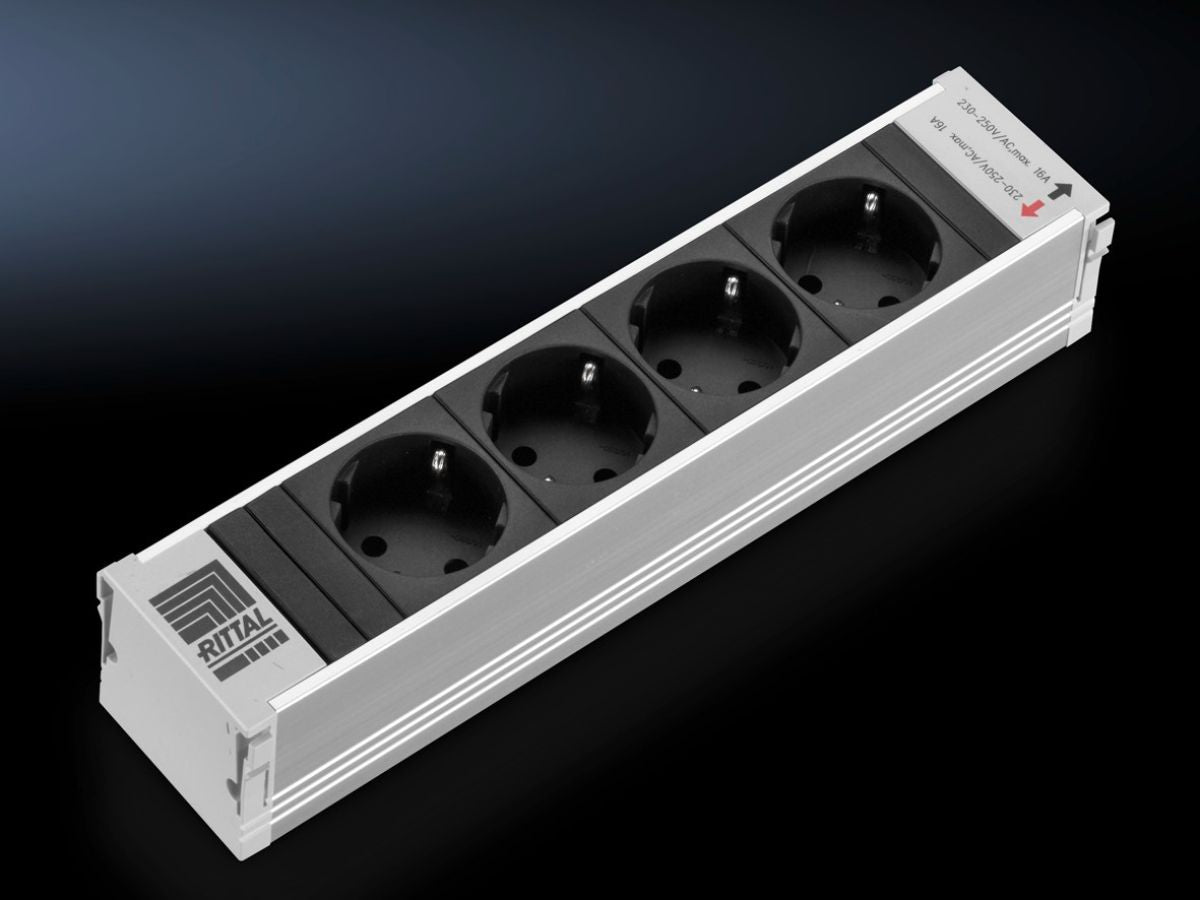

| Product description | DK PSM Plus socket module, CEE 7/3 (type F), 4-way, black, non-switchable |
