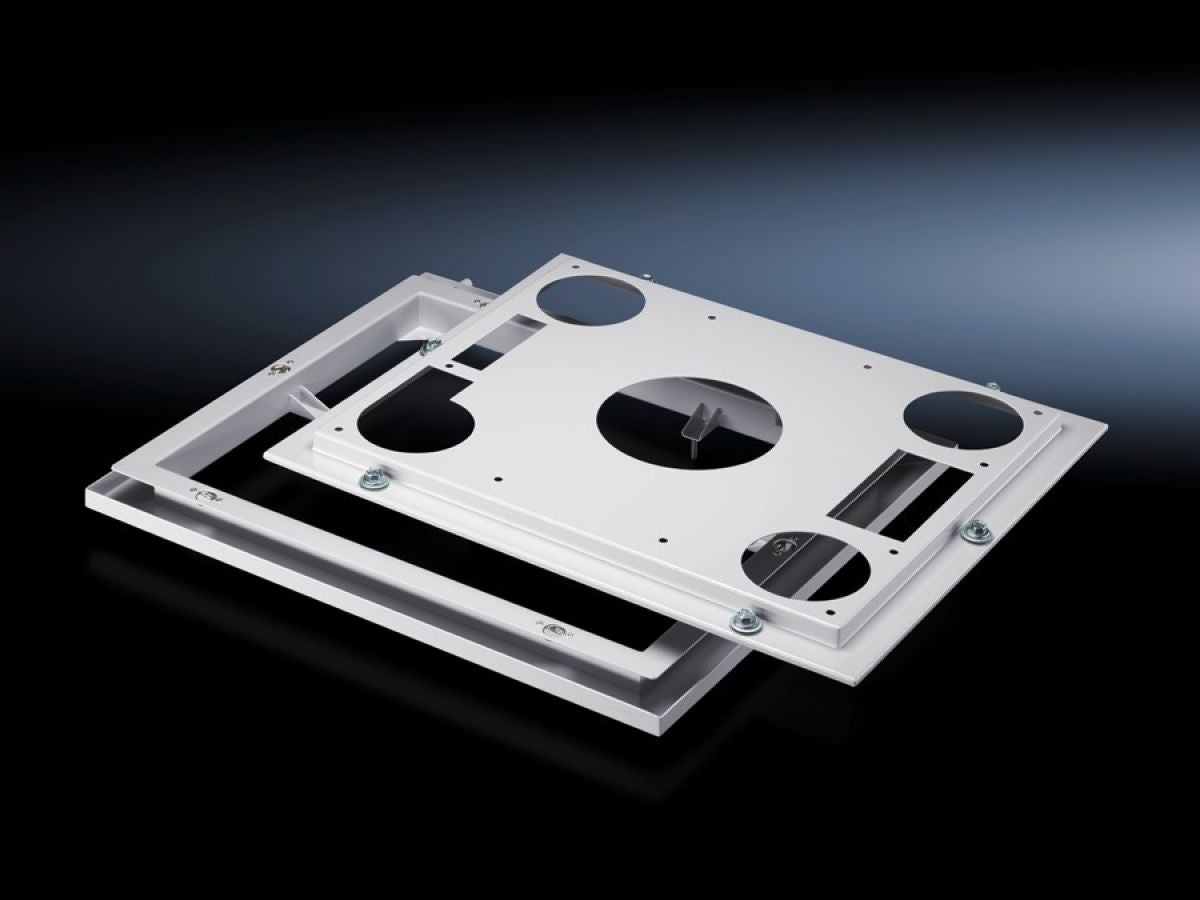

Rittal SK 3286.800, Quick-change frame for roof-mounted cooling units
Rittal SK 3286.800, Quick-change frame for roof-mounted cooling units
Regular price
€252,96
Regular price
Sale price
€252,96
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3286.800
Together with the seal, the lower part of the alternate frame is screw-fastened to the enclosure. In this way, it is possible to install and remove the connector-ready cooling unit with quick-release fasteners with the upper part of the alternate frame pre-fitted on the cooling unit.
| Article number: | SK 3286.800 |
| Product description | The quick-change frame is more than just an alternate frame. Together with the seal, the lower part of the frame is screw-fastened to the enclosure. In this way, it is possible to install and remove the connector-ready cooling unit with the upper part of the alternate frame previously mounted on the cooling unit with quick-release fasteners. During servicing work, this means shorter assembly times and hence minimised downtime. What is more, the quick-change frame offers effective protection against the ingress of oil into the enclosure in oily atmospheres, thanks to its integral drainage trough. |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Quick-change frameSealQuick-release fasteners |
| To fit Model No. | 3209.... |
| Packs of | 1 pc(s). |
| Net weight | 7.073 kg |
| Gross weight | 7.4 kg |
| PCF per pack (cradle-to-gate) | 28.6 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177325418 |
| ETIM 9 | EC000331 |
| ETIM 8 | EC000331 |
| ECLASS 8.0 | 27189272 |
| Product description | SK Quick-change frame, for cooling unit SK 3209/10, 3383/84/85, Sheet steel |
