Rittal SK 3342.024, Rack-mounted fans for 482.6 mm (19") Air throughput 320 – 480 m³/h
Rittal SK 3342.024, Rack-mounted fans for 482.6 mm (19") Air throughput 320 – 480 m³/h
Regular price
€419,70
Regular price
Sale price
€419,70
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SK 3342.024

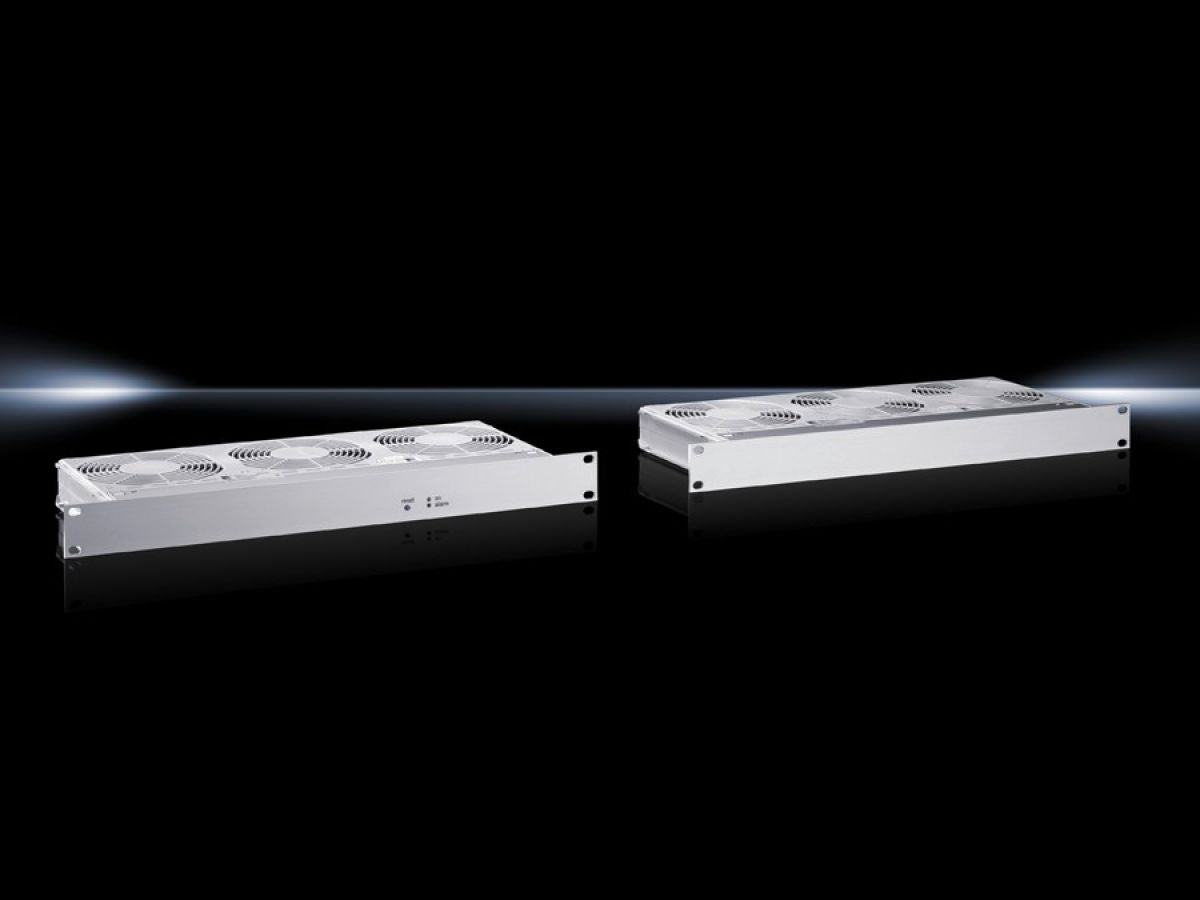

Rack-mounted fan for direct installation in the 482.6 mm (19") level. Installation allows air to circulate permanently inside the enclosure, thus preventing the formation of hot spots.
| Article number: | SK 3342.024 |
| Product description | Rack-mounted fan for direct installation in the 482.6 mm (19") level. Installation allows air to circulate permanently inside the enclosure, thus preventing the formation of hot spots. |
| Colour | RAL 7035 |
| Supply includes | Fully wired unit ready for connectionTerminal strip and assembly parts |
| Air throughput (unimpeded air flow) | 480 m³/h |
| Note on Model No. | Extended delivery times. |
| Rated operating voltage | 24 V (DC) |
| Rated current max. | With DC: 0.74 A |
| Pre-fuse | Miniature circuit-breaker/fuse: 6 A |
| Dimensions | Width: 482.6 mmHeight: 44 mmDepth: 200 mm |
| Distance between axes of fans | 105 mm |
| No. of fans | 3 |
| Noise level | With DC: 51 dB(A) |
| Operating temperature range | -10 °C...55 °C |
| Packs of | 1 pc(s). |
| Net weight | 1.75 kg |
| Gross weight | 1.86 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177041509 |
| ETIM 9 | EC000320 |
| ETIM 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
| Product description | SK rack-mounted fan, for 482.6 mm (19"), 480 m³/h, 24 V (DC), WHD: 482.6 x 44 x 200 mm |
