Rittal

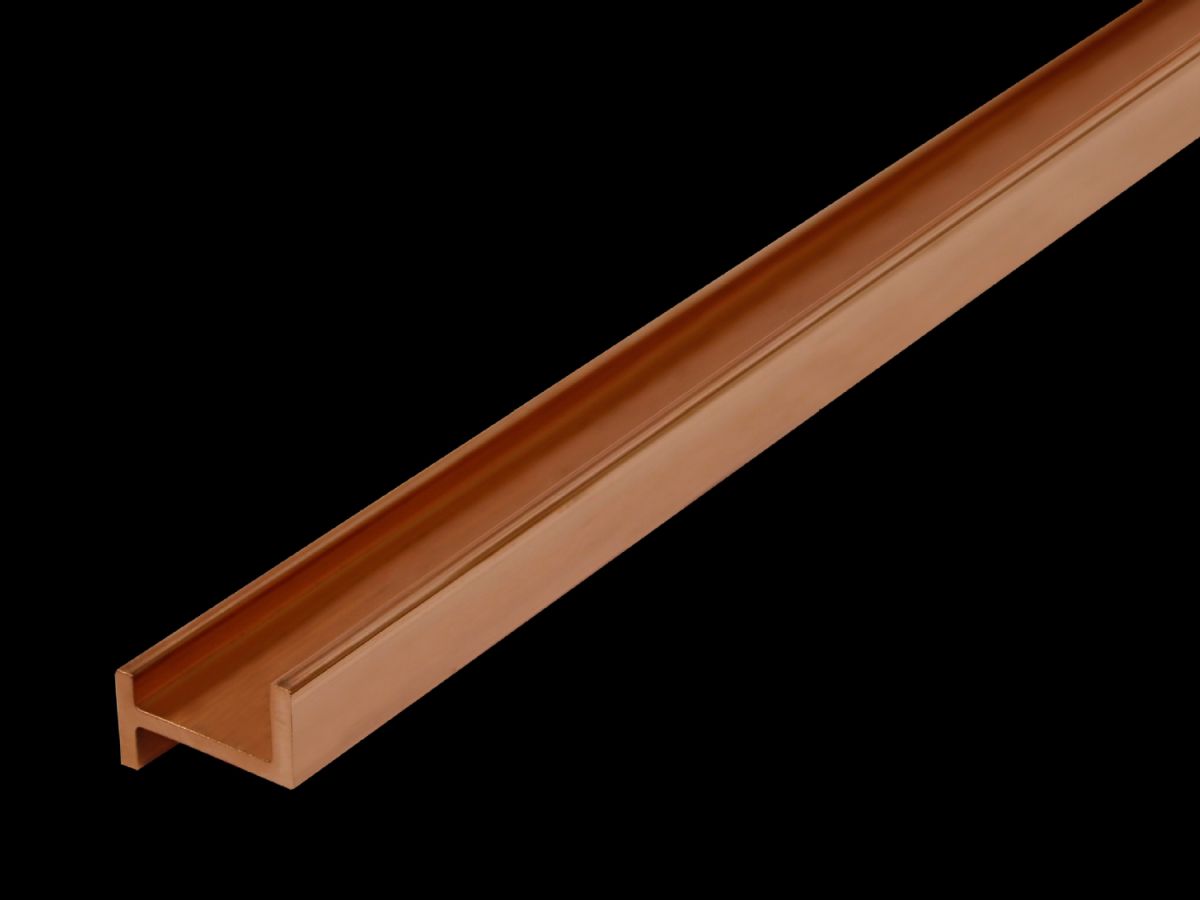

Rittal SV 3525.010, PLS special busbars E-Cu
Rittal SV 3525.010, PLS special busbars E-Cu
Regular price
€146,29
Regular price
Sale price
€146,29
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SV 3525.010
Lengths range from 495 mm to 2400 mm.
| Article number: | SV 3525.010 |
| Material | E-Cu |
| Bar thickness | 5 mm |
| Cross-section | 300 mm² |
| Note | May be cut individually to required length |
| Busbar type | Busbar E-Cu |
| To fit busbar system | PLS 800 |
| Dimensions | Length: 895 mm |
| To fit | Width: = 1,000 mm |
| Packs of | 3 pc(s). |
| Net weight | 6.57 kg |
| Gross weight | 6.88 kg |
| Copper weight (kg per piece) | 2.32 |
| Customs tariff number | 74071000 |
| EAN | 4028177504004 |
| ETIM 9 | EC001522 |
| ETIM 8 | EC001522 |
| ECLASS 8.0 | 27370303 |
| Product description | SV PLS special busbar E-Cu, L: 895 mm, PLS 800, bar thickness: 5 mm, 300 mm² bar cross-section |
