Rittal

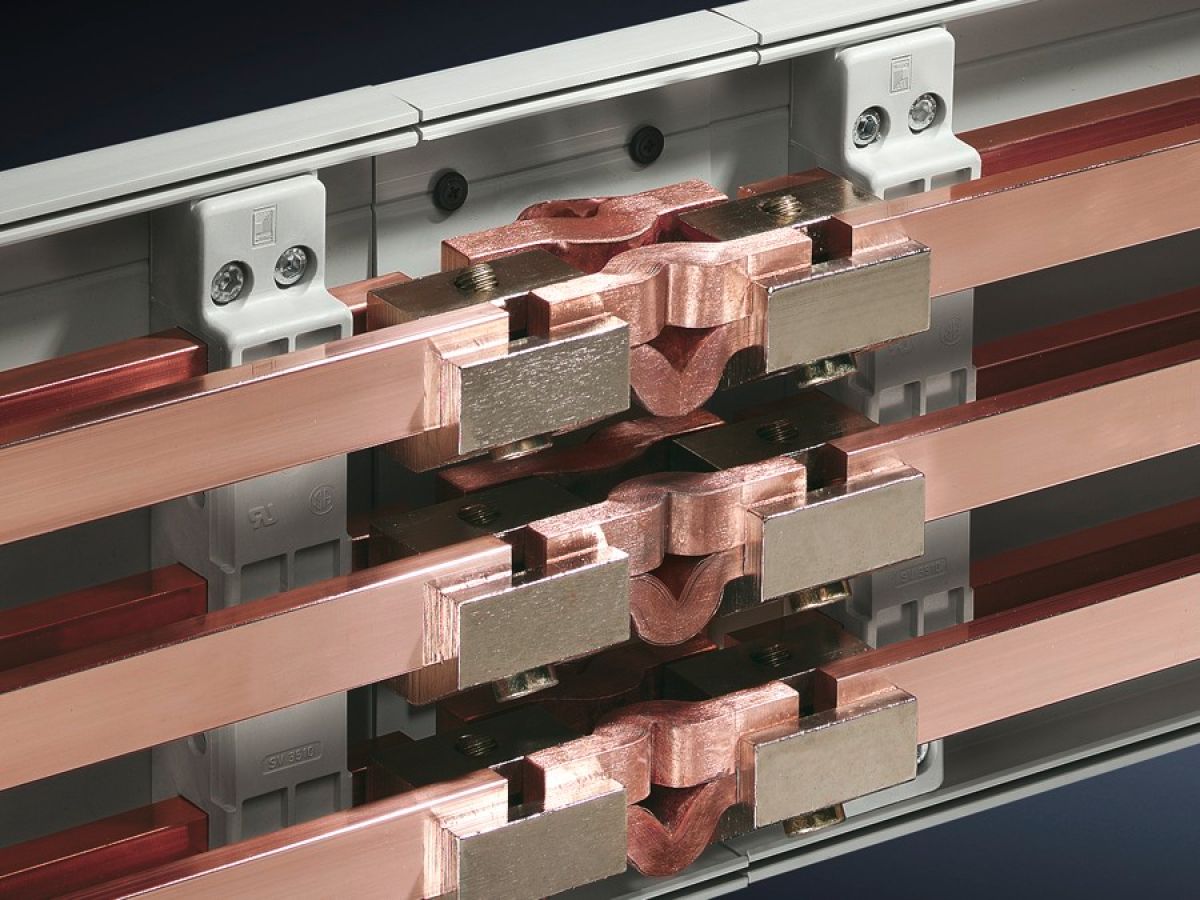

Rittal SV 9320.070, PLS expansion connectors
Rittal SV 9320.070, PLS expansion connectors
Regular price
€276,24
Regular price
Sale price
€276,24
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 09.12.2025
Couldn't load pickup availability
SKU: SKU:SV 9320.070
For thermal and mechanical compensation during connection of PLS special busbars from enclosure to enclosure.
| Article number: | SV 9320.070 |
| Product description | For thermal and mechanical compensation when connecting PLS special busbars from enclosure to enclosure. |
| Material | E-Cu |
| Assembly instruction | Two busbar connectors are needed to fit one expansion connector. |
| Note | At a temperature increase of 30 K, there is an expansion in the length of the busbars by approximately 0.5 mm/m. For this reason, it is advisable to use an expanding connection for thermal compensation in busbar systems with busbar sections > 3600 mm. |
| To fit busbars | PLS 1600 |
| Packs of | 3 pc(s). |
| Net weight | 1.8 kg |
| Gross weight | 1.937 kg |
| Copper weight (kg per piece) | 0.6 |
| Customs tariff number | 85369010 |
| EAN | 4028177162372 |
| ETIM 9 | EC000713 |
| ECLASS 8.0 | 27400606 |
| Product description | SV Expansion connector E-Cu, PLS 1600 |
