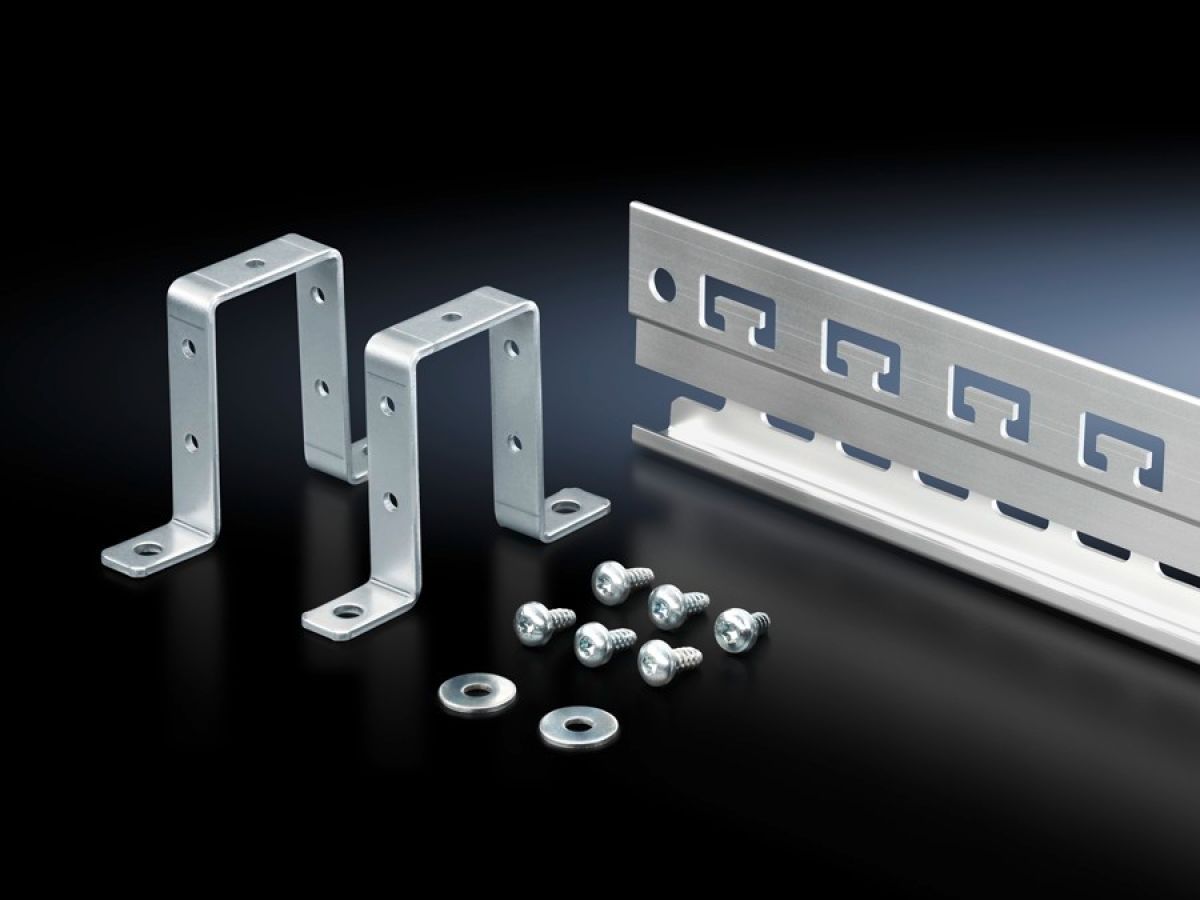

Rittal SZ 2388.650, Rail for EMC shielding bracket and strain relief
Rittal SZ 2388.650, Rail for EMC shielding bracket and strain relief
Regular price
€50,19
Regular price
Sale price
€50,19
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2388.650
Combined rail for strain relief and EMC contacting of inserted cables.
| Article number: | SZ 2388.650 |
| Design | C rail to accommodate cable clampsT-head cut-outs on a 40 mm pitch pattern for cable clamping using cable ties |
| Product description | Combined rail for strain relief and EMC contacting of inserted cables. |
| Benefits | Additional contacting on the left or right of the rail via existing holes (9 mm diameter) |
| Material | Extruded aluminium section |
| Surface finish | Chromium-free passivated |
| Supply includes | 1 rail2 retaining bracketsAssembly parts |
| Length | 553 mm |
| Installation options | on the horizontal/vertical enclosure section |
| To fit | Enclosure type: VXTSWidth: = 600 mm |
| Packs of | 1 pc(s). |
| Net weight | 0.5 kg |
| Gross weight | 0.58 kg |
| Customs tariff number | 76042990 |
| EAN | 4028177698918 |
| ETIM 9 | EC002625 |
| ETIM 8 | EC002625 |
| ECLASS 8.0 | 27189234 |
| Product description | SZ Rail, for EMC rail and stain relief, for W: 600 mm |
