Rittal

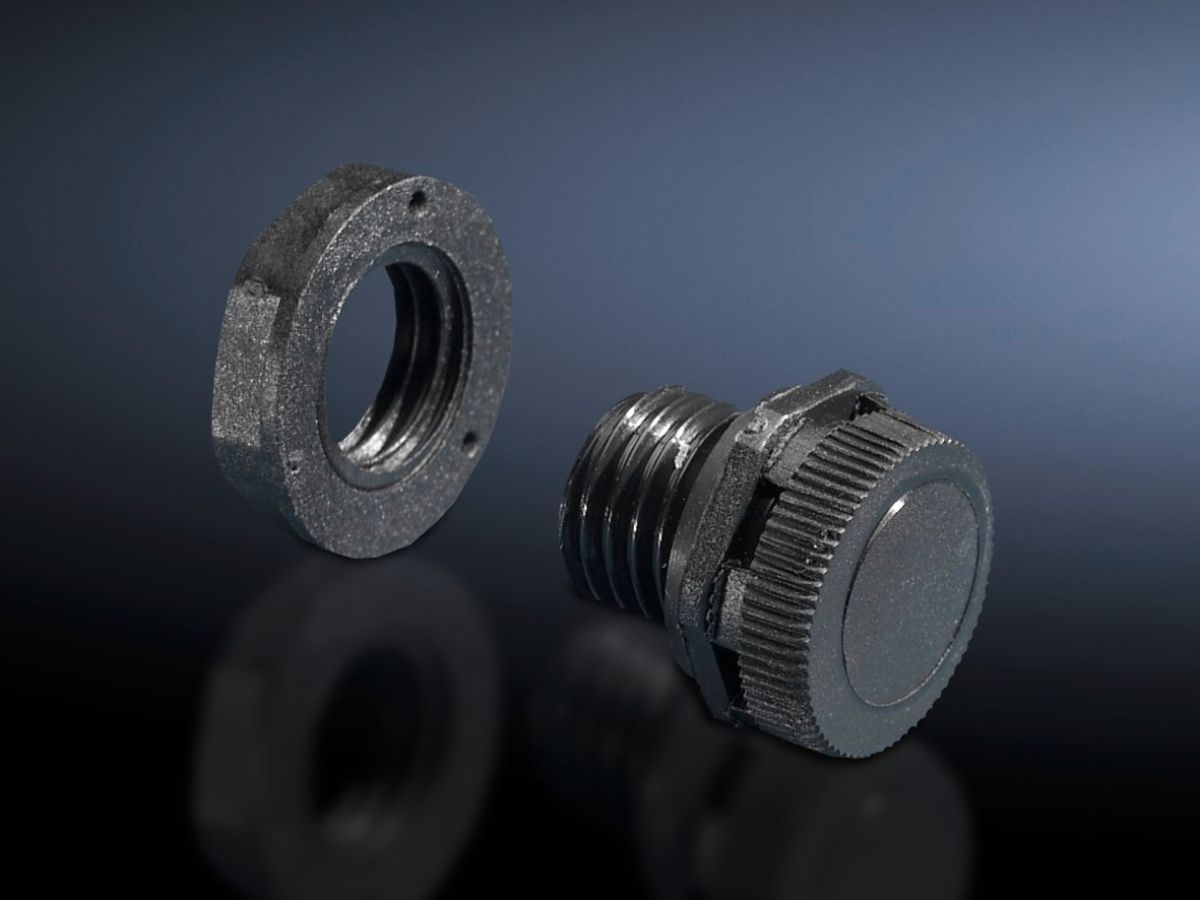

Rittal SZ 2459.500, Pressure relief stoppers
Rittal SZ 2459.500, Pressure relief stoppers
Regular price
€32,48
Regular price
Sale price
€32,48
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2459.500
Pressure relief stoppers in polyamide with integral sealing membrane, especially for enclosures which are exposed to changing climatic conditions (e.g. with outdoor siting).
| Article number: | SZ 2459.500 |
| Product description | Especially when enclosures are exposed to changing climatic conditions, pressure differences may cause condensation to form in sealed enclosures. The integral sealing membrane in the pressure relief stopper largely prevents such pressure differences and hence eliminates condensation, additionally, it also prevents the ingress of moisture from the outside. Installed in vertical surfaces to protect against dirt. |
| Technical specifications | Air permeability up to 120 litres/hour with a pressure difference of 70 mbar |
| Material | Polyamide |
| Colour | Similar to RAL 9005 |
| Supply includes | Lock nut |
| Type rating to UL 50E | Type 1 |
| IP protection category to IEC 60 529 | IP 68 |
| Packs of | 5 pc(s). |
| Net weight | 0.015 kg |
| Gross weight | 0.02 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177516960 |
| ETIM 9 | EC002009 |
| ETIM 8 | EC002009 |
| ECLASS 8.0 | 27180715 |
| Product description | SZ Pressure relief stoppers |
