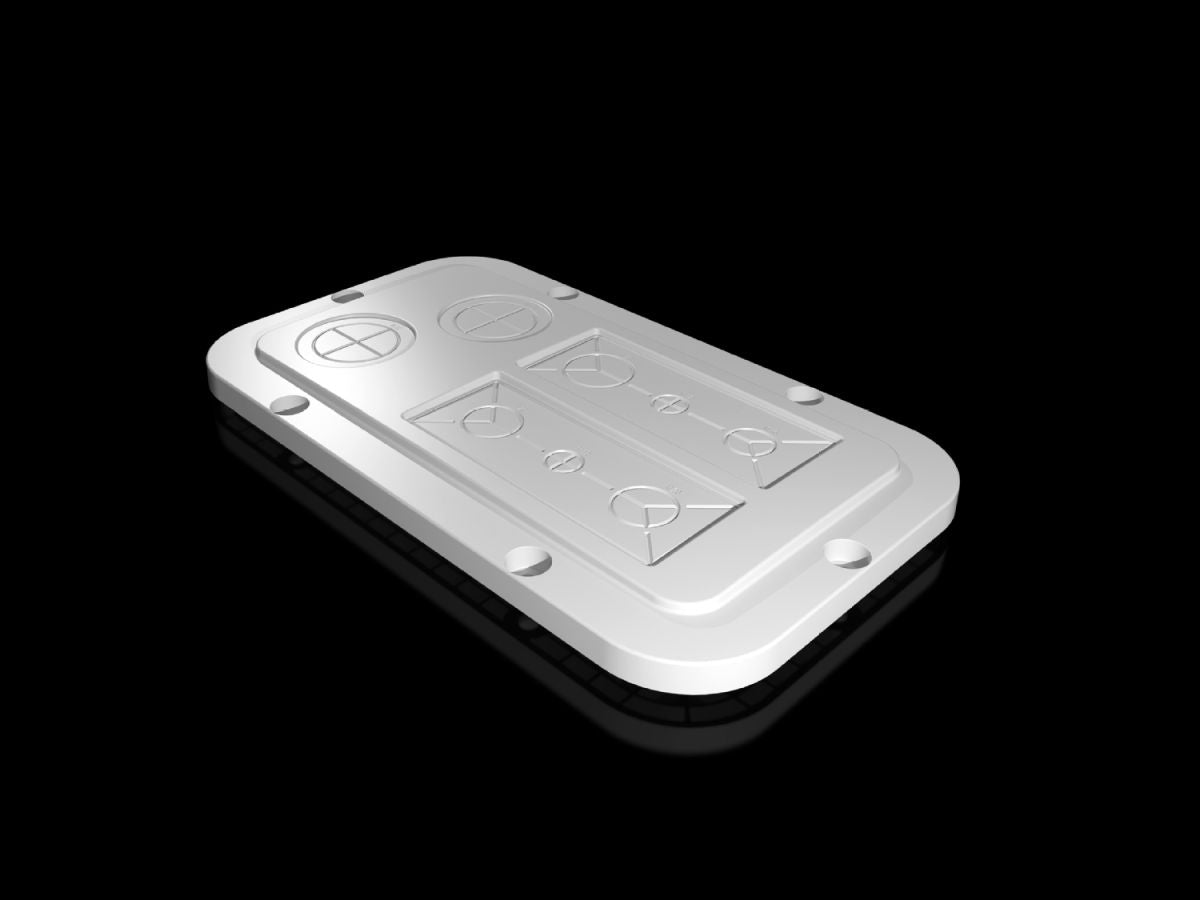

Rittal SZ 2561.200, Plastic gland plate, modular with metric knockouts, for AX
Rittal SZ 2561.200, Plastic gland plate, modular with metric knockouts, for AX
Regular price
€27,91
Regular price
Sale price
€27,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2561.200
Simply break through the plastic on the knockouts for cable glands. Additional rectangular cut-outs and reinforcement frame allow the cable gland to be installed directly (modular).
| Article number: | SZ 2561.200 |
| Product description | Simply break through the plastic on the knockouts for cable glands. Additional rectangular cut-outs and reinforcement frame allow the cable gland to be installed directly (modular). |
| Material | Plastic to UL 94-V0 |
| Colour | RAL 7035 |
| Number of rectangular cutouts information | 1 rectangular cut-out can hold 10 small seal inserts |
| Number of rectangular cutouts | 2 |
| Note | The allocation of gland plate sizes is indicated on the relevant enclosures |
| No. of metric knockouts | 2 x M121 x M162 x M201 x M252 x M32 |
| Dimensions | Width: 256 mmDepth: 149 mm |
| To fit | Enclosure type: AX |
| Gland plate | Size: 1 |
| Operating temperature range | -40 °C...80 °C |
| Protection category to IEC 60 529 | IP 66 if installed correctly |
| Type rating to UL 50E | Type 1 |
| Number knockouts | 21212 |
| Metric diameter | M12 |
| Packs of | 1 pc(s). |
| Net weight | 0.24 kg |
| Gross weight | 0.25 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177938397 |
| ETIM 9 | EC000211 |
| ETIM 8 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | SZ Plastic gland plates, for AX, for cable entry, modular, pre-punched, WD: 256x149 mm, for gland plates size 1 |
