Rittal

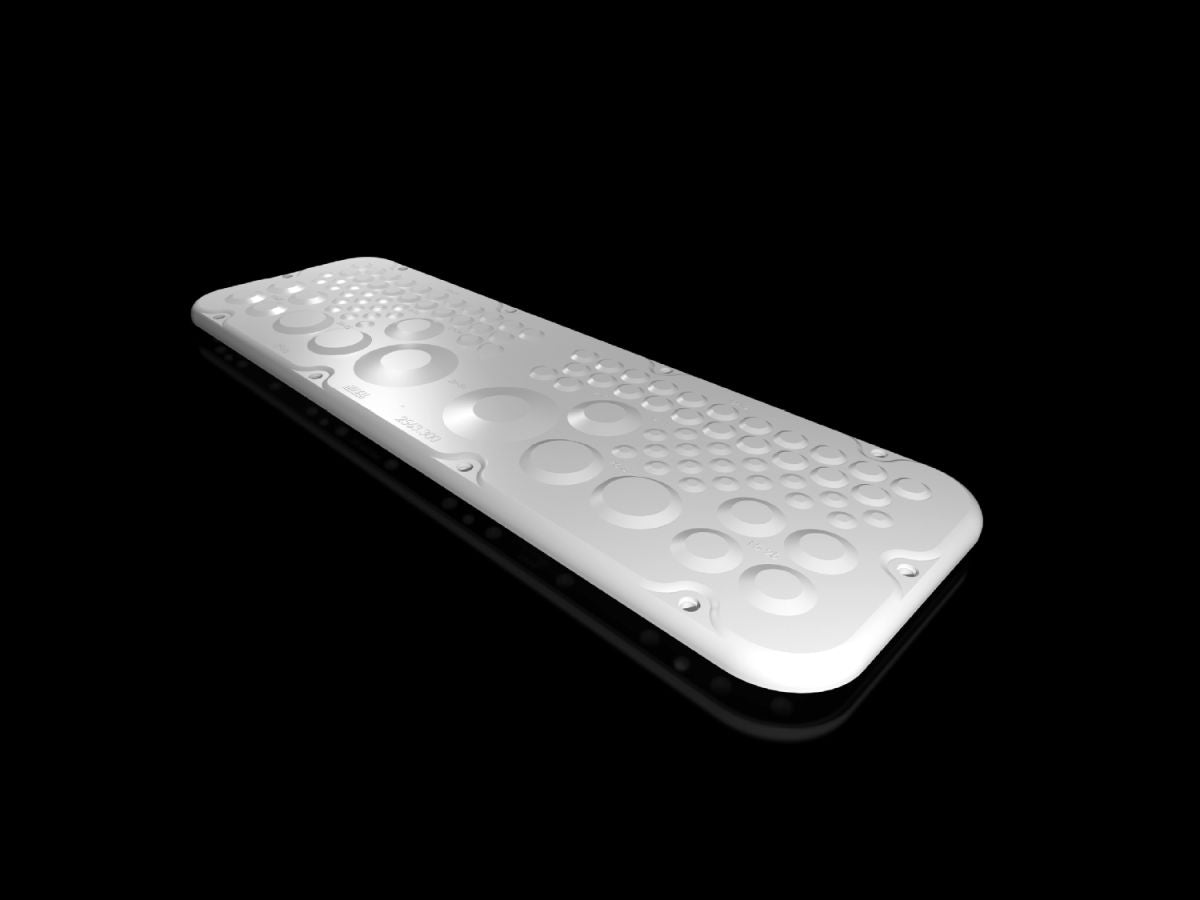

Rittal SZ 2563.300, Plastic gland plate with membranes, for AX
Rittal SZ 2563.300, Plastic gland plate with membranes, for AX
Regular price
€48,62
Regular price
Sale price
€48,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 2563.300
Simply pierce the plastic with a sharp object, and pull through the cable.
| Article number: | SZ 2563.300 |
| Product description | Simply pierce the plastic with a sharp object, and pull through the cable. |
| Material | Plastic to UL 94-V0 |
| Colour | Similar to RAL 7035 |
| Note | The allocation of gland plate sizes is indicated on the relevant enclosures |
| Dimensions | Width: 447 mmDepth: 149 mm |
| To fit | Enclosure type: AX |
| Gland plate | Size: 3 |
| Protection category to IEC 60 529 | IP 66 if installed correctly |
| Type rating to UL 50E | Type 1 |
| No. of cable entries and Ø (mm) min.-max. | 36 x 5-11 |
| Packs of | 1 pc(s). |
| Net weight | 0.61 kg |
| Gross weight | 0.63 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177935754 |
| ETIM 9 | EC000211 |
| ETIM 8 | EC000211 |
| ECLASS 8.0 | 27142421 |
| Product description | SZ Plastic gland plates, for AX, with membranes, WD: 447x149 mm, for gland plates size 3 |
