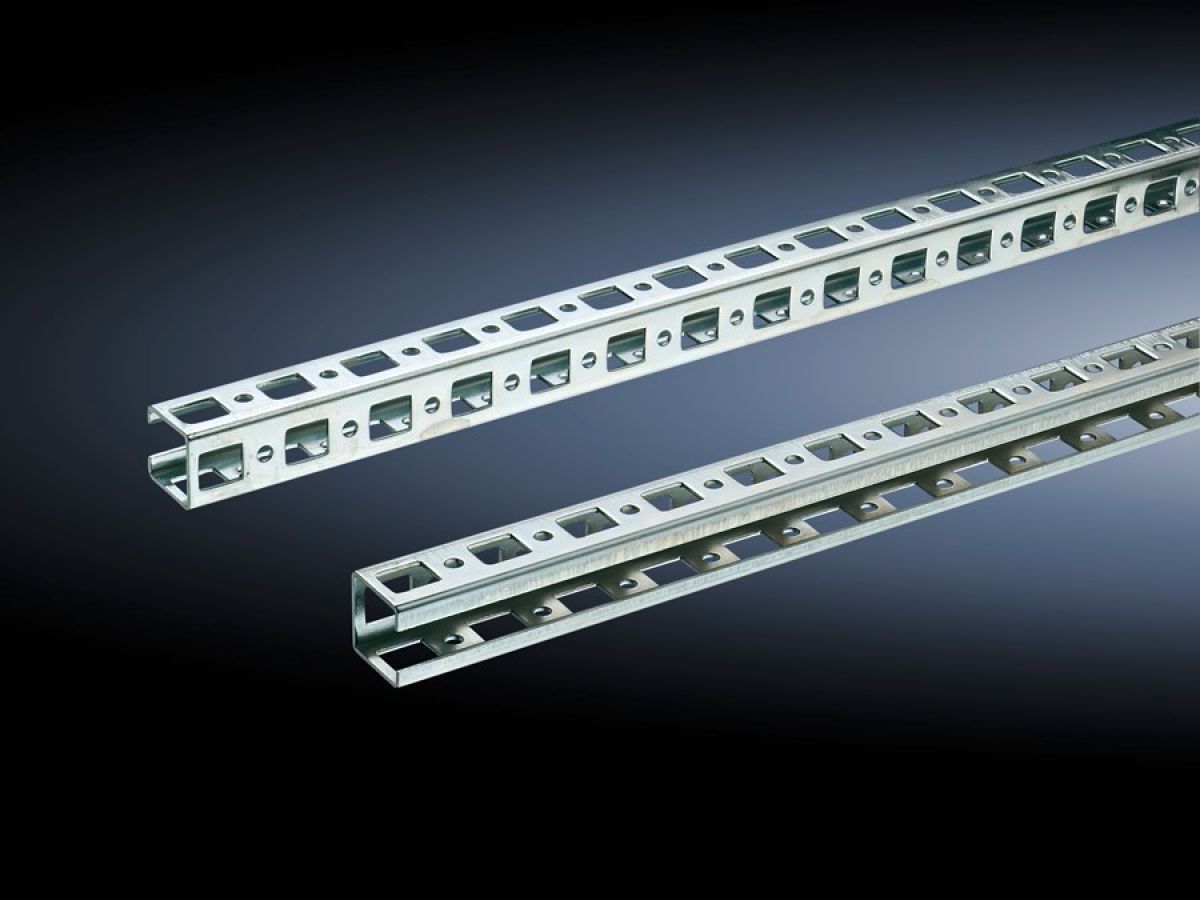

Rittal SZ 4177.000, Punched rail 23 x 23 mm for VX, TS, VX SE
Rittal SZ 4177.000, Punched rail 23 x 23 mm for VX, TS, VX SE
Regular price
€116,73
Regular price
Sale price
€116,73
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:SZ 4177.000
For mounting on the horizontal and vertical enclosure sections via additional assembly components.
| Article number: | SZ 4177.000 |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Length | 1,895 mm |
| Installation options | On the vertical enclosure section: Directly via support brackets TS, via adaptor rail for PS compatibility in conjunction with angle brackets, mounting brackets or support brackets PS |
| To fit | Enclosure type: VXTSVX SESuitable for width or height or depth: 2,000 mm |
| Packs of | 6 pc(s). |
| Net weight | 6.966 kg |
| Gross weight | 7.36 kg |
| PCF per pack (cradle-to-gate) | 28 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 73269098 |
| EAN | 4028177093263 |
| ETIM 9 | EC002620 |
| ETIM 8 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | SZ Punched rail 23 x 23 mm, for TS, SE, for WHD: 2000 mm, L: 1895 mm |
