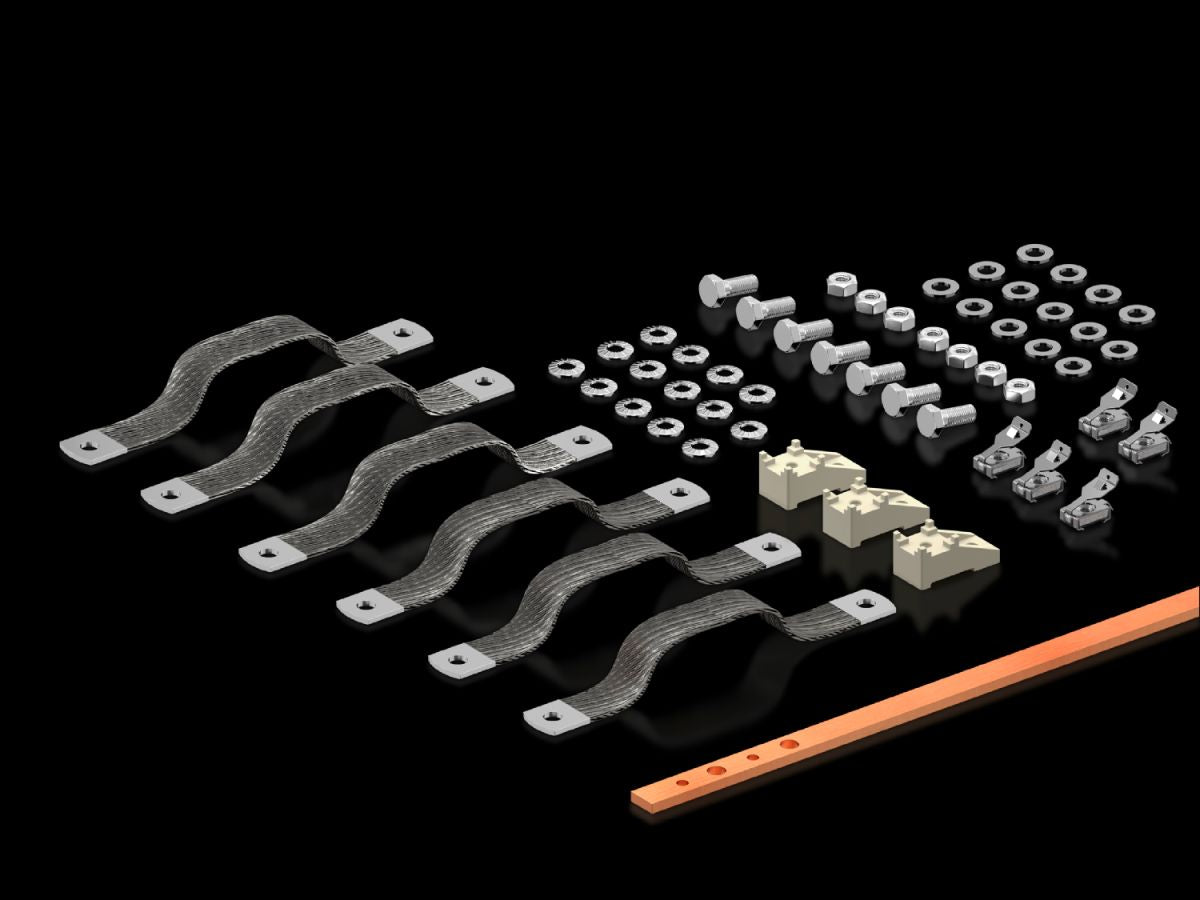

Rittal VX 5302.028, Potential equalisation kit, Plus version for VX IT
Rittal VX 5302.028, Potential equalisation kit, Plus version for VX IT
Regular price
€137,87
Regular price
Sale price
€137,87
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:VX 5302.028
For improved EMC.
| Article number: | VX 5302.028 |
| Product description | For improved EMC. |
| Benefits | All enclosure elements are connected via earthing braids to a central, vertical potential equalisation rail (rack bonding busbar, RBB) via the frame structure as central consolidation point |
| Applications | Ensures continuous potential equalisation and/or functional earthing |
| Function principle | Potential equalisation rail for central potential equalisation of all installed equipment on the enclosure and components connected to the potential equalisation |
| Supply includes | 6 earthing braids (M8), 16 mm², for sheet steel doors, side panels, potential equalisation railPotential equalisation rail, length 1545 mm, for height 1800 – 2000 mmAssembly parts |
| Assembly instruction | The specific connection cables between the installed equipment and the potential equalisation rail must be supplied by the user |
| Note | If a risk assessment of the ultimate application has been carried out by a qualified electrician and no extended risk potential has been identified, no protective earthing measures are required |
| Packs of | 1 pc(s). |
| Net weight | 1.7 kg |
| Gross weight | 1.9 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177955349 |
| ETIM 9 | EC001503 |
| ECLASS 8.0 | 27149219 |
| Product description | Potential equalisation kit, Plus version, for VX IT, for improved EMC. Potential equalisation rail for central potential equalisation of all installed equipment on the enclosure and components connected to the potential equalisation, 6 earthing braids (M8), 16 mm², for sheet steel doors, side panels, potential equalisation rail, length 1545 mm, for height 1800 – 2000 mm, incl. assembly parts, approvals: UL |
