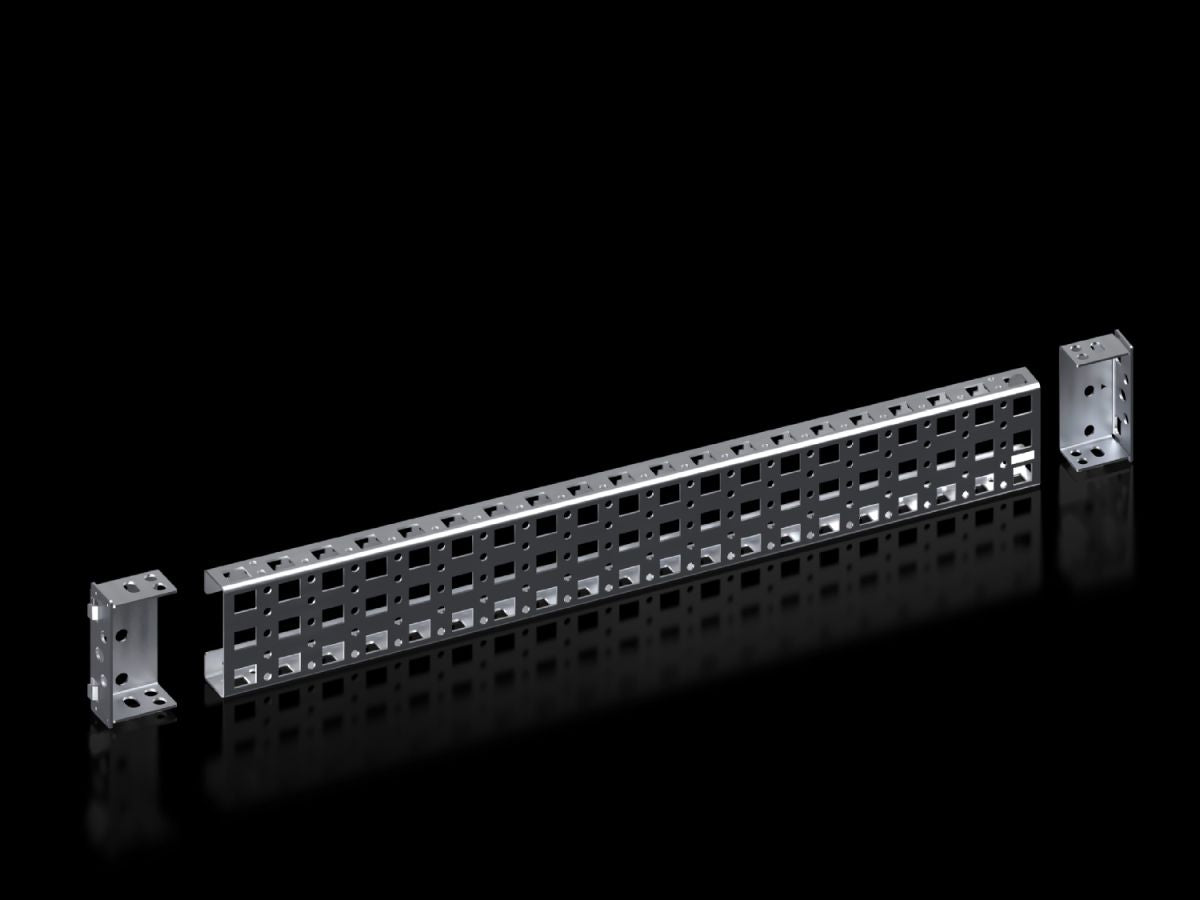

Rittal VX 8100.742, Punched section without mounting flange, 23 x 64 mm for VX, VX SE
Rittal VX 8100.742, Punched section without mounting flange, 23 x 64 mm for VX, VX SE
Regular price
€87,32
Regular price
Sale price
€87,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8100.742
For variable, individual interior installation of the enclosure frame on the inner mounting level.
| Article number: | VX 8100.742 |
| Product description | For variable, individual interior installation of the enclosure frame on the inner mounting level. Mounted flush with enclosure frame The additional mounting brackets mean it can also be used with a pre-installed mounting plate, and is also prepared for cutting to any required length. |
| Benefits | System punchings on all four sides |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | 2 punched sections without mounting flanges4 mounting bracketsAssembly parts |
| Installation options | In VX on the inner mounting level, on the VX enclosure section |
| To fit | Enclosure type: VXVX SETo fit width/depth: 600 mm |
| Packs of | 2 pc(s). |
| Net weight | 0.998 kg |
| Gross weight | 1.44 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177924499 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | VX Punched section, without mounting flange 23 x 64mm, for WD: 600 mm |
