Rittal

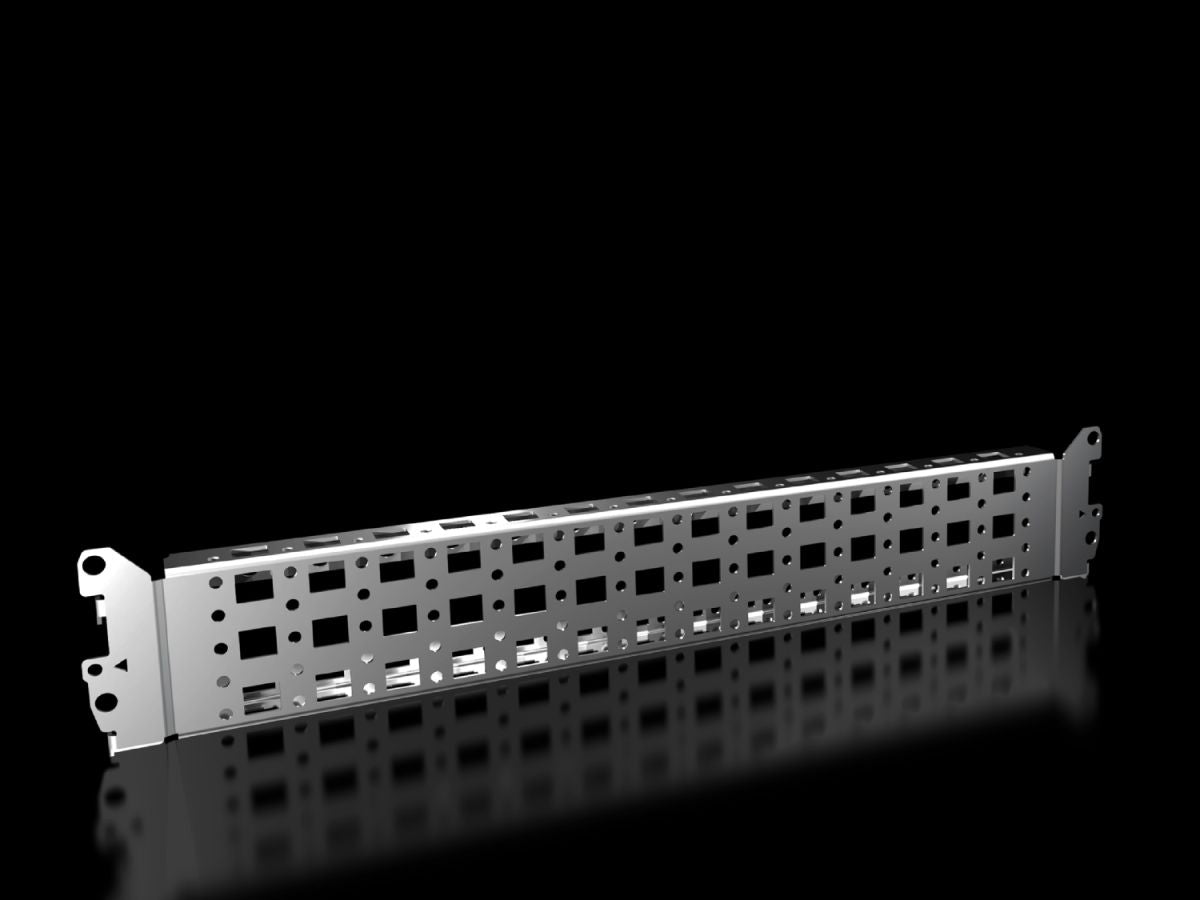

Rittal VX 8617.120, Punched section with mounting flange, 23 x 64 mm for VX, VX IT, VX SE, AX plastic
Rittal VX 8617.120, Punched section with mounting flange, 23 x 64 mm for VX, VX IT, VX SE, AX plastic
Regular price
€59,18
Regular price
Sale price
€59,18
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8617.120
For variable, individual interior installation of the enclosure frame on the inner mounting level, and for installation in compact enclosures.
| Article number: | VX 8617.120 |
| Product description | For variable, individual interior installation of the enclosure frame on the inner mounting level, and for installation in compact enclosures. |
| Benefits | Simply locate into the system punchings and screw-fasten |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| VX installation options | In enclosure depth 500 mm, on the inner mounting level |
| VX SE installation options | In enclosure depth 500 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility |
| AX installation options | In enclosure width/height 500 mm, in conjunction with rail for interior installation AX and base configuration rail for AX |
| AX stainless steel installation options | In enclosure width/height 500 mm, in conjunction with the base configuration rail |
| Installation options, AX plastic | In enclosure width 500 mm, in conjunction with universal bracket |
| CX installation options | In the pedestal, in the enclosure depth, 500 mm |
| VX base/plinth installation options | In base/plinth width/depth 600 mm for mounting on the base/plinth corner pieces |
| To fit | Enclosure type: VXVX ITVX SEAXAX plasticSuitable for width or height or depth: 500 mm |
| To fit | Base/plinth system VX |
| Packs of | 4 pc(s). |
| Net weight | 1.6 kg |
| Gross weight | 1.98 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177829121 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level, for W/H/D: 500 mm |
