Rittal

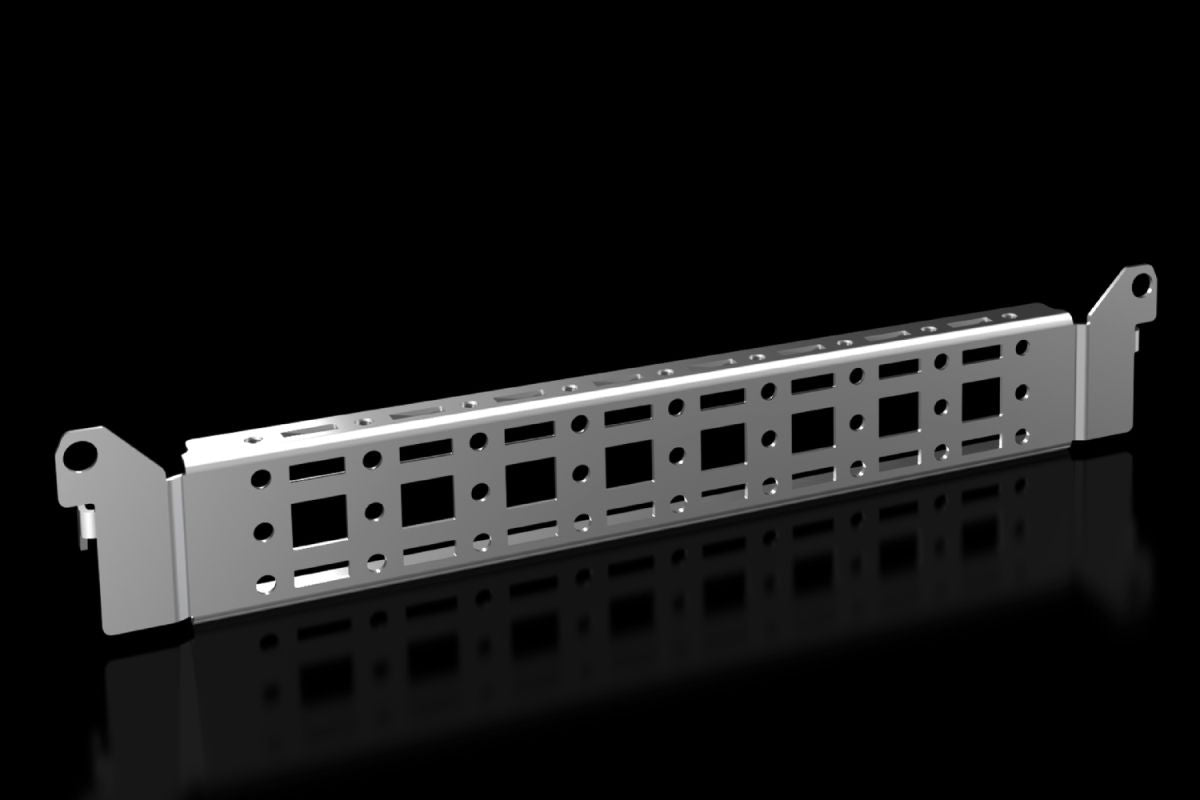

Rittal VX 8619.700, Punched section with mounting flange, 14 x 39 mm for VX, VX SE, PC, IW, AX
Rittal VX 8619.700, Punched section with mounting flange, 14 x 39 mm for VX, VX SE, PC, IW, AX
Regular price
€50,05
Regular price
Sale price
€50,05
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.700
For securing cable ducts, cable conduit holders, equipment installed on the door, etc.
| Article number: | VX 8619.700 |
| Product description | For attaching cable ducts, cable conduit holders, equipment installed on the door, etc. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Distance between fixing points | 275 mm |
| To fit door width | 400 mm |
| VX installation options | In door width 400 mm |
| AX installation options | In enclosure width 300 mm and in enclosure height 400 mm, in conjunction with rail for interior installation AX |
| AX stainless steel installation options | In enclosure width 300 mm |
| Installation options, AX plastic | In door width 400 mm |
| Installation options for 3-part AX | In enclosure depth 473 mm |
| CX installation options | In the pedestal, in the enclosure depth, 400 mm |
| Assembly instruction | For installation in AX sheet steel, only in conjunction with rail for interior installation AX |
| Note | For installing your own components on the punched section with mounting flange, metal screws or self-tapping M5 screws are required |
| To fit | Enclosure type: VXAXAX plasticAX wall-mounted enclosure, 3-partCX one-piece consoleCX pedestalSuitable for width or height or depth: 400 mm |
| Packs of | 4 pc(s). |
| Net weight | 0.68 kg |
| Gross weight | 0.686 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177924659 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | VX Punched section, with mounting flange 14 x 39 mm, for door width: 400 mm |
