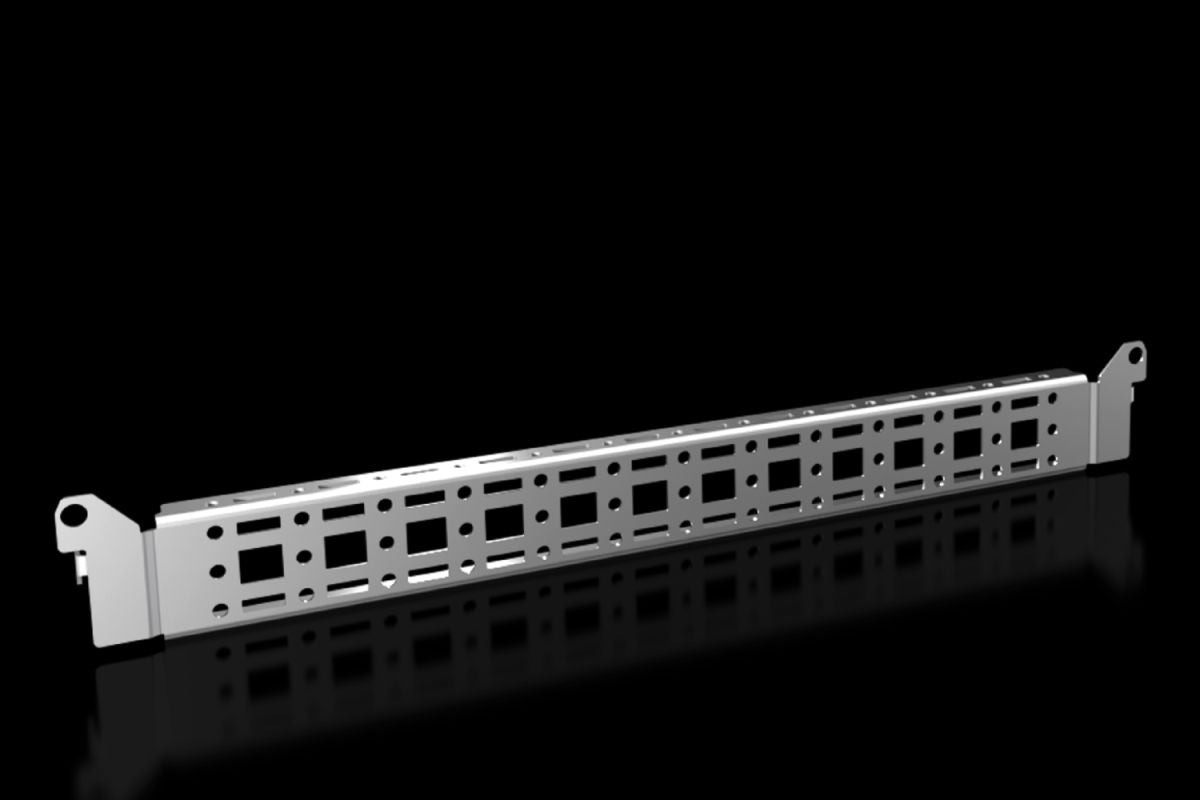

Rittal VX 8619.710, Punched section with mounting flange, 14 x 39 mm for VX, VX SE, PC, IW, AX
Rittal VX 8619.710, Punched section with mounting flange, 14 x 39 mm for VX, VX SE, PC, IW, AX
Regular price
€55,61
Regular price
Sale price
€55,61
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 05.12.2025
Couldn't load pickup availability
SKU: SKU:VX 8619.710
For securing cable ducts, cable conduit holders, equipment installed on the door, etc.
| Article number: | VX 8619.710 |
| Product description | For attaching cable ducts, cable conduit holders, equipment installed on the door, etc. |
| Material | Sheet steel |
| Surface finish | Zinc-plated |
| Supply includes | Assembly parts |
| Distance between fixing points | 375 mm |
| To fit door width | 500 mm |
| VX installation options | In door width 500 mm |
| VX SE installation options | In door width 500 mm |
| AX installation options | In enclosure width 400 mm and in enclosure height 500 mm, in conjunction with rail for interior installation AX |
| AX stainless steel installation options | In enclosure height 500 mm |
| Installation options, AX plastic | In door width 500 mm |
| Installation options for 3-part AX | In enclosure depth 573 mm |
| CX installation options | In console and desk unit in the depth, in conjunction with the CX rail for interior installation |
| TP installation options | In consoles for 3-part assembly in enclosure width 600 mm, in conjunction with rail for interior installation TP, compact enclosure HD |
| Assembly instruction | For installation in AX sheet steel, only in conjunction with rail for interior installation AX |
| Note | For installing your own components on the punched section with mounting flange, metal screws or self-tapping M5 screws are required |
| To fit | Enclosure type: VXVX SETPAXAX plasticAX wall-mounted enclosure, 3-partCX one-piece consoleCX console systemSuitable for width or height or depth: 500 mm |
| Packs of | 4 pc(s). |
| Net weight | 0.8 kg |
| Gross weight | 0.92 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177924635 |
| ETIM 9 | EC002620 |
| ECLASS 8.0 | 27189234 |
| Product description | VX Punched section, with mounting flange 14 x 39 mm, for door width: 500 mm |
