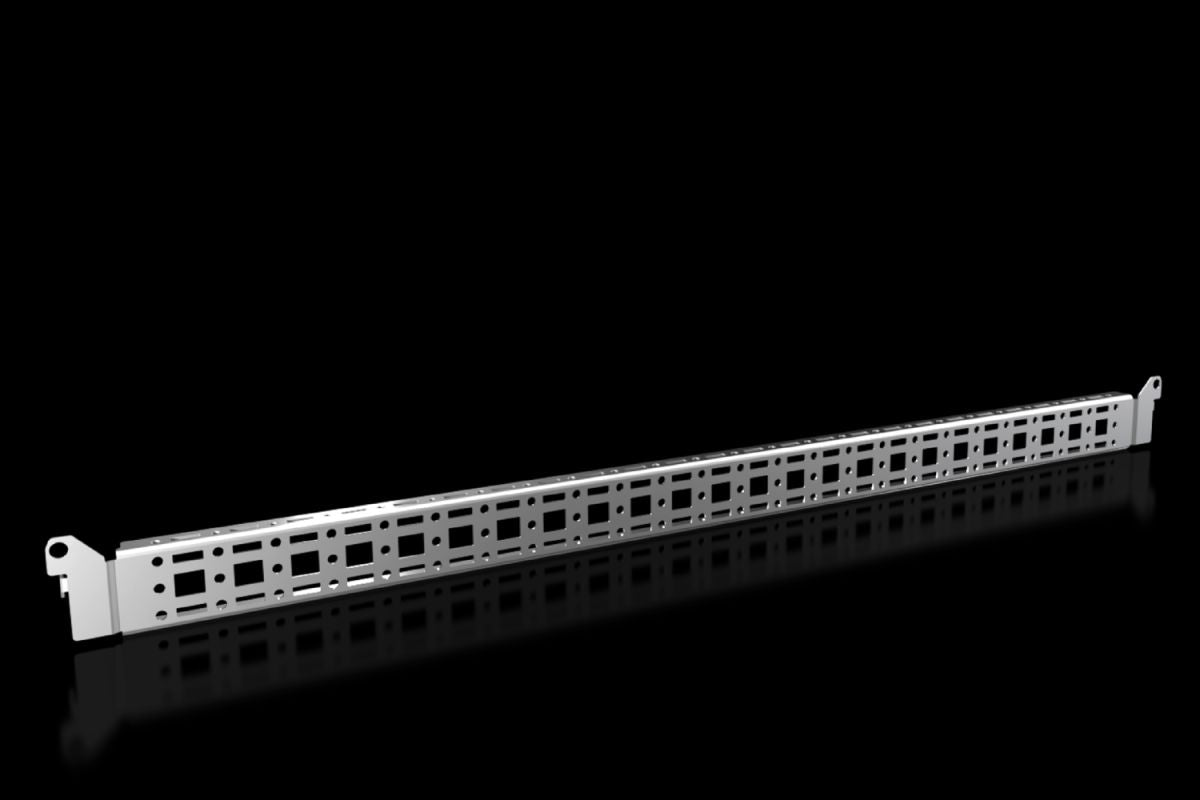

Rittal VX 8619.730, Punched section with mounting flange, 14 x 39 mm for VX, VX SE, PC, IW, AX

Rittal VX 8619.730, Punched section with mounting flange, 14 x 39 mm for VX, VX SE, PC, IW, AX

€72,32
€72,32
Sale Sold out
Taxes included.

📦 Ready for dispatch: 05.12.2025

SKU: VX 8619.730

For securing cable ducts, cable conduit holders, equipment installed on the door, etc.

Article number: VX 8619.730
Product description For attaching cable ducts, cable conduit holders, equipment installed on the door, etc.
Material Sheet steel
Surface finish Zinc-plated
Supply includes Assembly parts
Distance between fixing points 675 mm
To fit door width 800 mm
VX installation options In door width 800 mm
VX SE installation options In door width 800 mm
AX installation options In enclosure height 800 mm, in conjunction with rail for interior installation AX
AX stainless steel installation options In enclosure height 800 mm
Installation options, AX plastic In door width 800 mm
PC installation options In door width 800 mm
CX installation options In door width 800 mm
VX base/plinth installation options In base/plinth width 850 mm for mounting on the base/plinth corner pieces
Assembly instruction For installation in AX sheet steel, only in conjunction with rail for interior installation AX
Note For installing your own components on the punched section with mounting flange, metal screws or self-tapping M5 screws are required
To fit Enclosure type: VXVX SEPCAXAX plasticCX one-piece consoleCX pedestalSuitable for width or height or depth: 800 mm
To fit Base/plinth system VX
Packs of 4 pc(s).
Net weight 1.4 kg
Gross weight 1.588 kg
Customs tariff number 73269098
EAN 4028177924666
ETIM 9 EC002620
ECLASS 8.0 27189234
Product description VX Punched section, with mounting flange 14 x 39 mm, for door width: 800 mm
