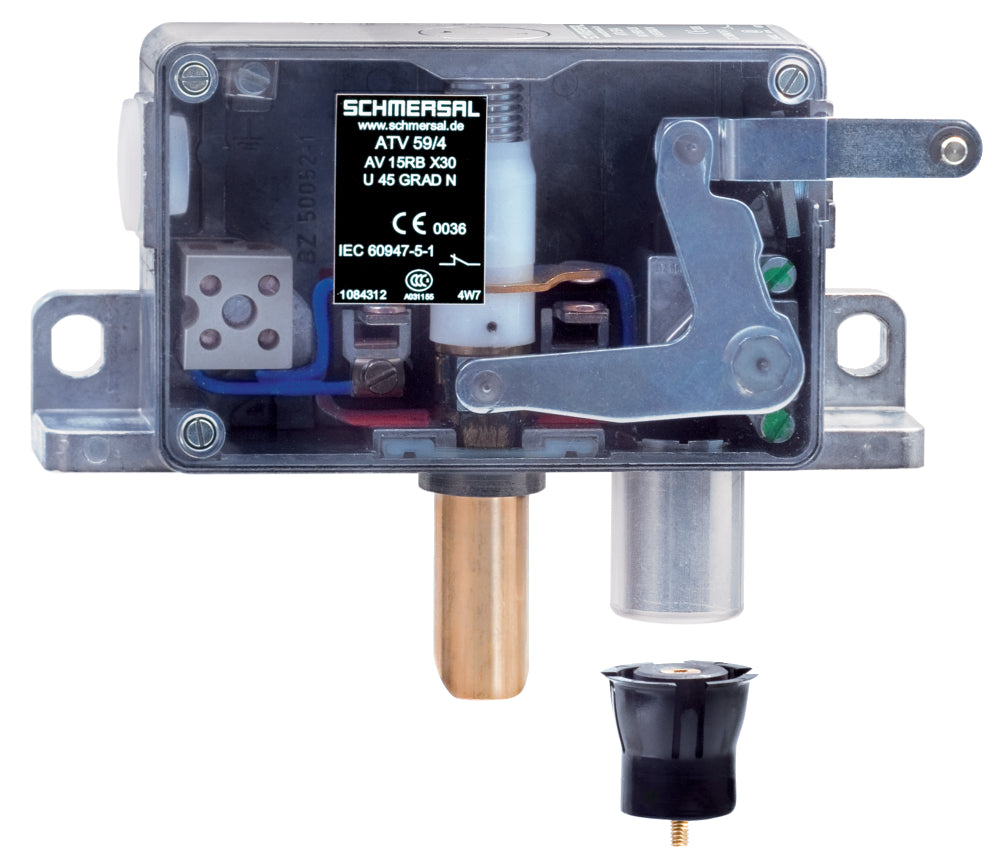

Schmersal AV15RHKX30U-GB215 Türverriegelung, sku: 103030686

Schmersal AV15RHKX30U-GB215 Türverriegelung, sku: 103030686

€496,15
€496,15
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 103030686

  • Rechtsausführung
  • Metallgehäuse
  • Fehlschließsicherung
  • für 1-flügelige Türen
  • für den Einsatz in Personenaufzügen zugelassen
  • Hilfsentriegelung durch Dreikantschlüssel M5
  • Product type description: AV15RHKX30U-GB215
  • Article number (order number): 103030686
  • EAN (European Article Number): 4030661542690
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Certificates: TÜV, CCC
  • Standards: EN 81-20, EN 81-50
  • Enclosure material: Light alloy die-casting
  • Material of the latching bolt: Brass
  • Gross weight: 1,040 g
  • Manual release: Yes
  • With fail-safe locking system (Y/N) : Yes
  • Safety functions: Yes
  • Number of auxiliary contacts: 1
  • Number of door leafs: 1
  • Number of safety contacts: 1
  • Actuating element: Roller lever H65
  • Orientation / Alignment: right-hand model
  • Mounting: rear-side mounting holes
  • Permanent magnet: Ceramic oxide magnets with high coercive field strength
  • Cable entry: without cable gland
  • Note (Cable entry): Graphic representation: left version mirror image
  • Width: 165 mm
  • Height: 80 mm
  • Depth: 36 mm
  • Diameter of the latching bolt: 18 mm
  • X-dimension of the latching bolt: 30 mm
  • Note (X-dimension of the latching bolt): The entire locking bolt length results from the prescribed insertion depth of the locking bolt into the door leaf of 21 mm and dimension X. Dimension X represents the distance between the bottom of the enclosure of the door closing device and the top of the door.
  • Latching bolt bevelling, bottom: 45 °
  • Degree of protection: IP20
  • Ambient temperature: -15 ... +70 °C
  • Rated insulation voltage Ui: 400 VAC
  • Rated impulse withstand voltage Uimp: 6 kV
  • Thermal test current: 10 A
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 2 A
  • Utilisation category DC-13: 200 VDC
  • Utilisation category DC-13: 2 A
  • Switching element: NC contact, NO contact
  • Switching principle: Slow action
  • Material of the contacts, electrical: Silver
  • Note (Accessories): Solenoid SOL-AV15/AV18 for electrical actuation available as accessory
  • Note (Manual release): For manual release using M5 triangular key, available as accessory
