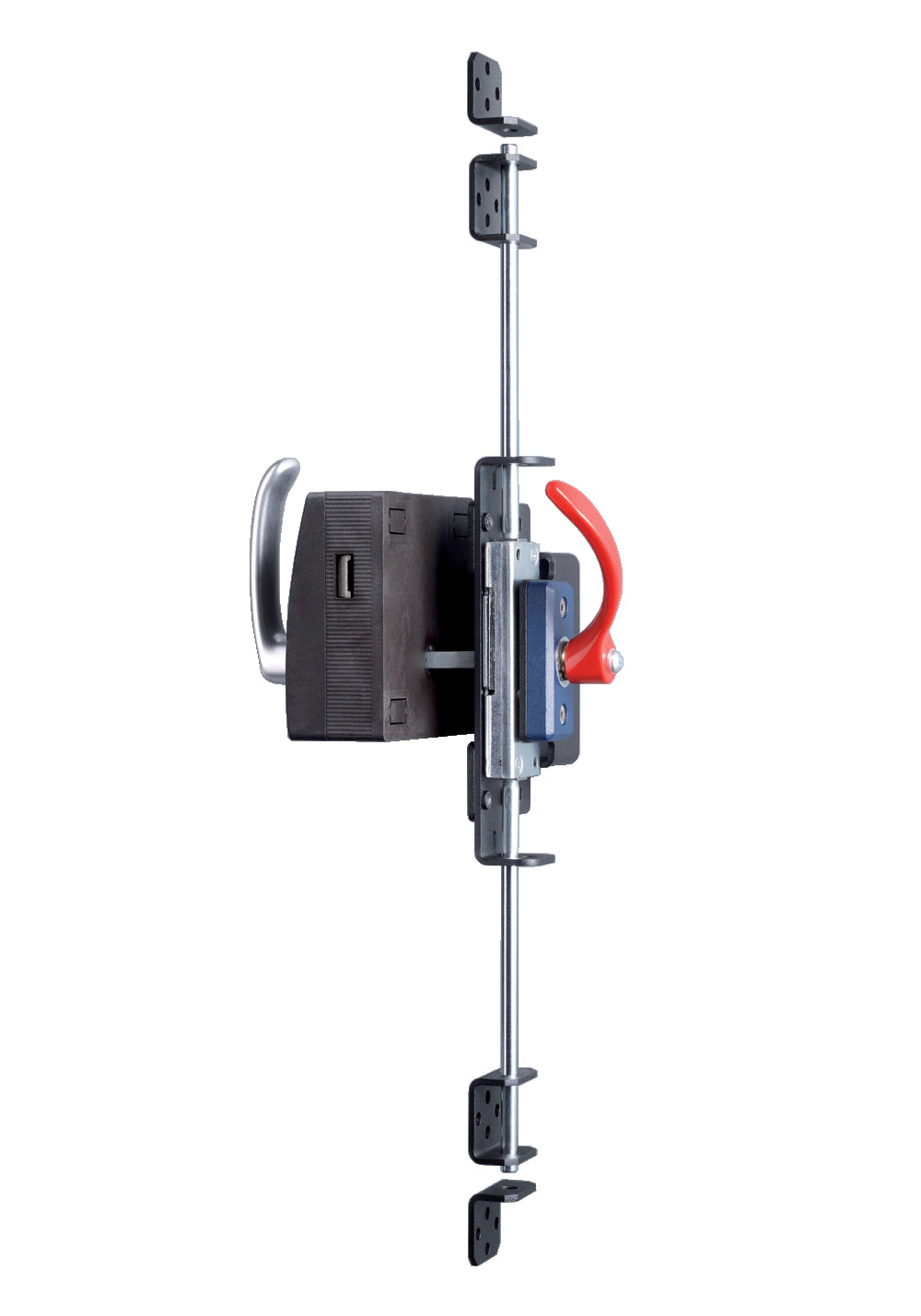

Schmersal AZ/AZM201-B30-LTAG1P31 Door handle actuator, sku: 103015821
Schmersal AZ/AZM201-B30-LTAG1P31 Door handle actuator, sku: 103015821
Regular price
€663,23
Regular price
Sale price
€663,23
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 02.12.2025
Couldn't load pickup availability
SKU: SKU:103015821
- für links angeschlagene Türen
- mit Türgriff und Fluchtentriegelungsgriff
- Betätiger für drehbare Schutzeinrichtung
- Einfache und intuitive Betätigung
- Keine Verletzungsgefahr an hervorstehendem Betätiger
- Erspart zusätzliche Türgriffe
- ragt nicht in den Türdurchgang hinein
- Product type description: AZ/AZM201-B30-LTAG1P31
- Article number (order number): 103015821
- EAN (European Article Number): 4030661504230
- eCl@ss number, version 12.0: 27-27-26-06
- eCl@ss number, version 11.0: 27-27-26-06
- eCl@ss number, version 9.0: 27-27-26-06
- ETIM number, version 7.0: EC001487
- ETIM number, version 6.0: EC001487
- Note: Certification in combination with the AZ /AZM 201 devices
- Housing material: Glass-fibre, reinforced thermoplastic
- Material of the actuator: Zinc die-cast
- Material of the operators: Aluminium, plastic coating
- Emergency exit material: Metal film
- Gross weight: 2,432 g
- Emergency exit: Yes
- Grip: handle
- Mechanical life, minimum: 1,000,000 Operations
- Door hinge: Left
- Holding force FZhin accordance with EN ISO 14119: 5,500 N
- Holding force Fmax, maximum: 7,150 N
- Actuator mounted: Outside
- Length of the actuator: 94 mm
- Width of the actuator: 115 mm
- Height of the actuator: 115 mm
- Length of the locking linkage: 83 mm
- Width of the locking rod: 75 mm
- Height of the locking linkage: 2,600 mm
- Note (Height of the locking linkage): Locking bars can be shortened by the customer
- Scope of delivery: Actuator unit AZ/AZM201-B30 incl. square rod, Rod lock with guide plate, 4 x M5x10 countersunk screws, 4 x U-pieces, 2 x M8 hexagon nuts, 2 x locking bars, 1200 mm, galvanised, Counter bearing (for P30) or complete emergency exit release (for P31)
