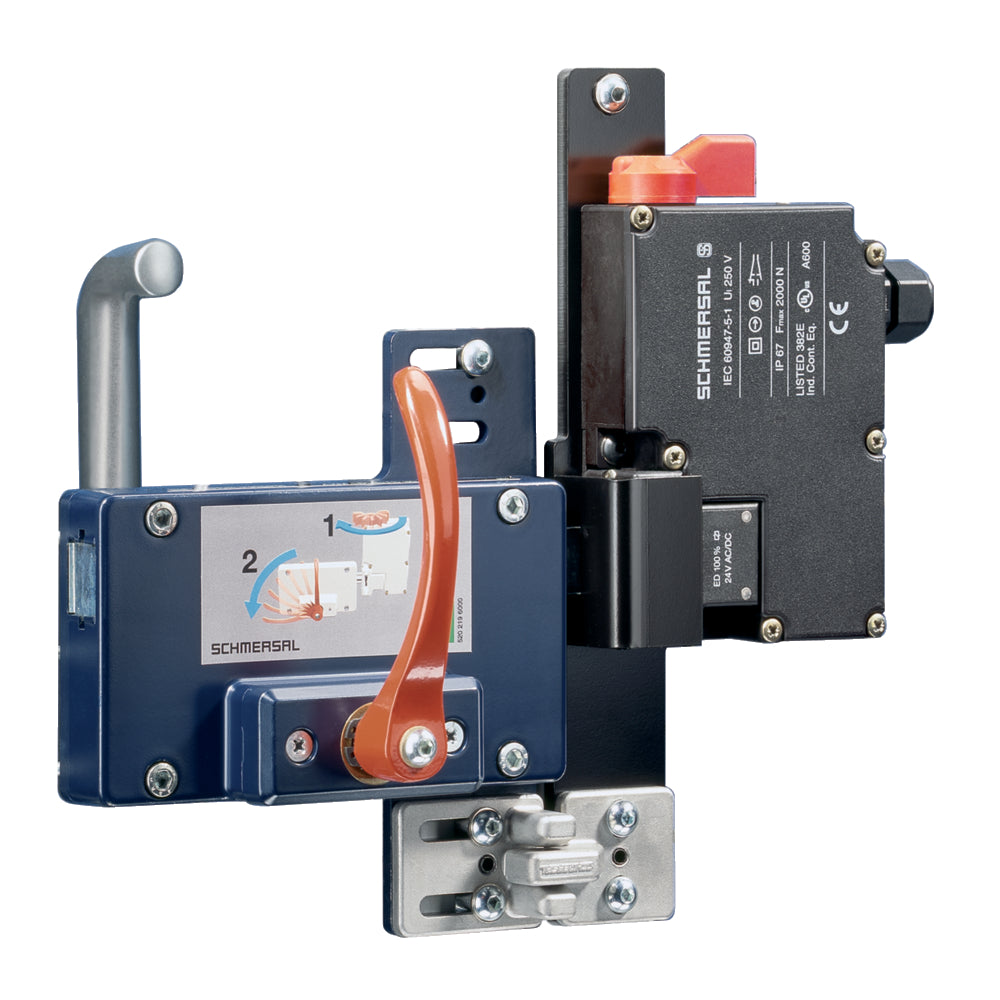

Schmersal AZM 161-STS30-03 Sicherheitszuhaltungen, sku: 101175481

Schmersal AZM 161-STS30-03 Sicherheitszuhaltungen, sku: 101175481

€450,85
€450,85
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 101175481

  • Türgriff rastend
  • geeignet für alle Schutzeinrichtungen
  • bis 110 °C einsetzbar
  • Product type description: AZM 161-STS30-03
  • Article number (order number): 101175481
  • EAN (European Article Number): 4030661305394
  • eCl@ss number, version 12.0: 27-27-26-06
  • eCl@ss number, version 11.0: 27-27-26-06
  • eCl@ss number, version 9.0: 27-27-26-06
  • ETIM number, version 7.0: EC001487
  • ETIM number, version 6.0: EC001487
  • Gross weight: 1,580 g
  • Door hinge: Right
  • Shearing force: 15,000 N
  • Actuator mounted: Inside
  • Scope of delivery: The door latch is not included in the scope of delivery
  • Note (scope of delivery, number and type): (parts marked grey in the dimensional drawing)
  • Scope of delivery of mounting material: Mounting plate for safety switch
  • Note (General): For actuators mounted on the inside, mounting plate MP TG-01 must be used to fix the door handle to the profile (101174965). When using door handle systems with a panic handle, the use of a solenoid interlock with escape release is always required.
