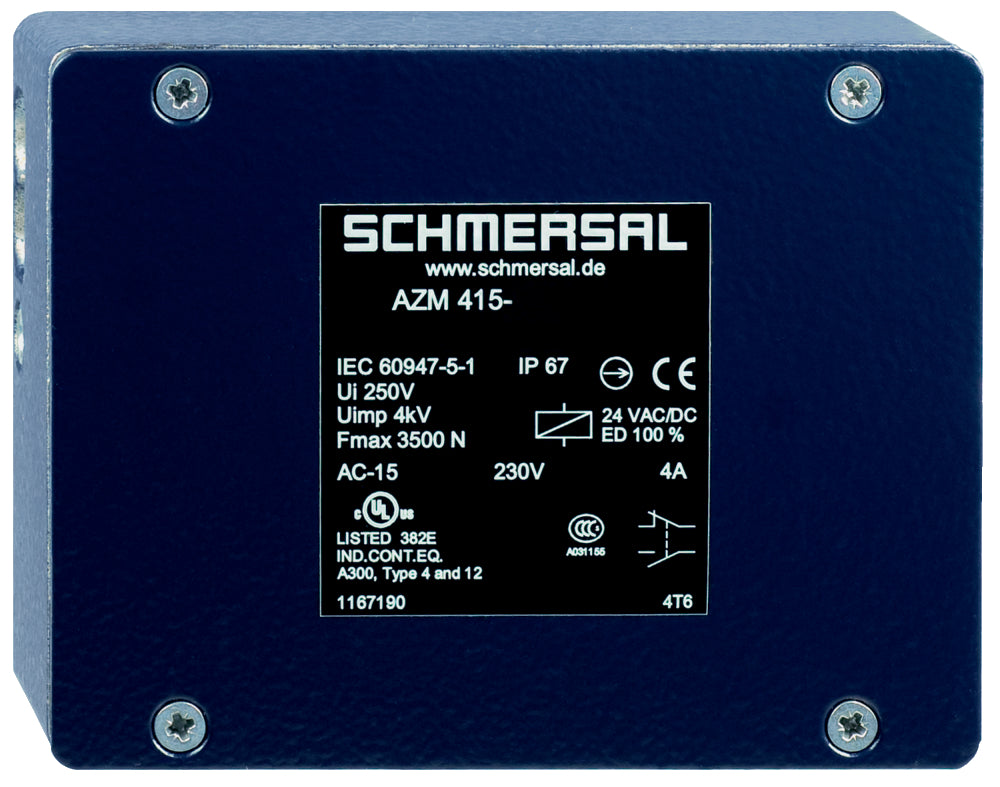

Schmersal AZM 415-11/11ZPK 24VAC/DC Sicherheitszuhaltungen, sku: 101167205

Schmersal AZM 415-11/11ZPK 24VAC/DC Sicherheitszuhaltungen, sku: 101167205

€624,75
€624,75
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 101167205

  • einstellbare Kugelrastung bis 400 N
  • 2 Schalter in einem Gehäuse
  • problemloses Öffnen verspannter Türen durch Kniehebelsystem
  • Ex-Version erhältlich
  • 130 mm x 100 mm x 46,5 mm
  • Metallgehäuse
  • Fehlschließsichere Zuhaltung
  • robuste Ausführung
  • hohe Lebensdauer
  • 2 Leitungseinführungen M 20 x 1.5
  • Schraubklemmenanschluss
  • Product type description: AZM 415-11/11ZPK 24VAC/DC
  • Article number (order number): 101167205
  • EAN (European Article Number): 4030661218199
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Certificates: BG, cULus, CCC
  • Standards: BG-GS-ET-19, EN IEC 60947-5-1
  • Working principle: electromechanical
  • Enclosure material: Aluminium
  • Enclosure coating material: painted
  • Gross weight: 1,000 g
  • Power to unlock: Yes
  • Number of actuating directions: 1
  • Number of auxiliary contacts: 2
  • Number of safety contacts: 2
  • Number of guard doors: 1
  • Safety classification: 1
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 2,000,000 Operations
  • Mechanical life, minimum: 1,000,000 Operations
  • Holding force FZh in accordance with EN ISO 14119: 3,500 N
  • Latching force, minimum: 150 N
  • Latching force, maximum: 400 N
  • Positive break travel: 5 mm
  • Positive break force, minimum: 15 N
  • Actuating speed, maximum: 0.2 m/s
  • Termination: Screw terminals M20 x 1.5
  • Cable section, minimum: 2 x 0.75 mm²
  • Cable section, maximum: 2 x 2.5 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Length of sensor: 46.5 mm
  • Width of sensor: 130 mm
  • Height of sensor: 100 mm
  • Degree of protection: IP67
  • Ambient temperature: -25 ... +50 °C
  • Rated insulation voltage Ui: 250 VAC
  • Rated impulse withstand voltage Uimp: 4 kV
  • Thermal test current: 6 A
  • Rated control voltage: 24 VAC/DC
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 4 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 1 A
  • Electrical power consumption, maximum: 10 W
  • Switching element: NO contact, NC contact
  • Switching principle: Slow action
  • Material of the contacts, electrical: Silver
  • Note (applications): sliding safety guard, hinged safety guard
