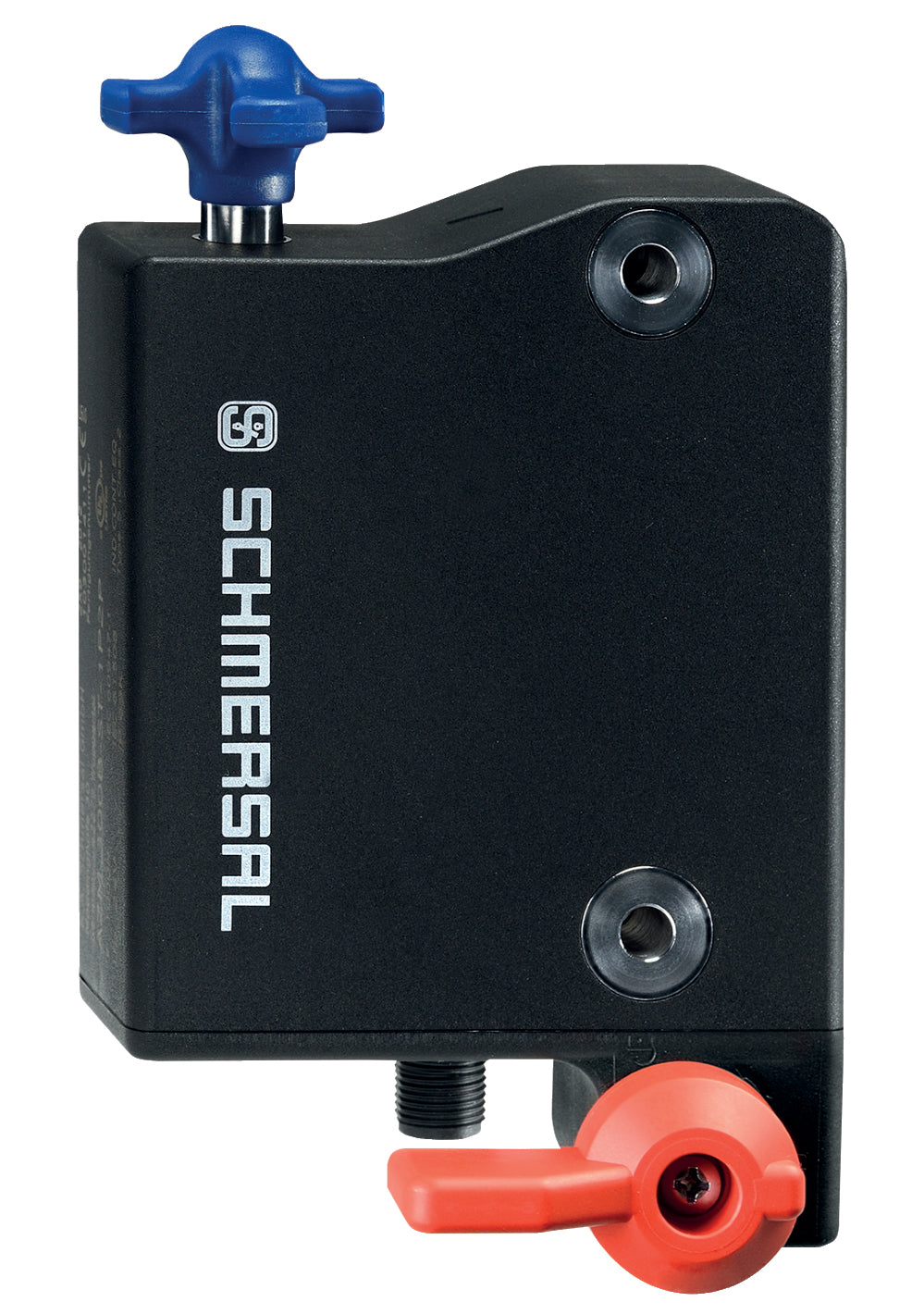

Schmersal AZM300B-I2-ST-SD2P-T Sicherheitszuhaltungen, sku: 103008179

Schmersal AZM300B-I2-ST-SD2P-T Sicherheitszuhaltungen, sku: 103008179

€735,66
€735,66
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 103008179

  • Mehrfach anlernbare individuelle Codierung mit RFID-Technologie
  • Codierstufe HOCH gemäß ISO 14119
  • Steckverbinder M12, 8-polig
  • Ruhestromprinzip
  • Betätiger-Überwachung
  • serieller Diagnoseausgang
  • Fluchtentriegelung
  • hygienegerechtes Design
  • Schutzart IP 69
  • Geeignet zum Anbau an Profilsysteme
  • Kunststoffgehäuse
  • Bedarfsgerechter Manipulationsschutz durch RFID-Technologie
  • 3 verschiedene Betätigungsrichtungen
  • kompakte Bauform
  • 3 LEDs zur Anzeige der Betriebszustände
  • für Dreh- und Schiebetüren geeignet
  • Reihenschaltung
  • Hilfsentriegelung
  • Product type description: AZM300B-I2-ST-SD2P-T
  • Article number (order number): 103008179
  • EAN (European Article Number): 4030661452203
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Certificates: TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
  • Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
  • Coding: Individual coding, multiple teaching
  • Coding level according to EN ISO 14119: High
  • Working principle: RFID
  • Frequency band RFID: 125 kHz
  • Transmitter output RFID, maximum: -6 dB/m
  • Housing material: Glass-fibre, reinforced thermoplastic
  • Duration of risk, maximum: 200 ms
  • Reaction time, switching off safety outputs via actuator, maximum: 100 ms
  • Reaction time, switching off safety outputs via safety inputs, maximum: 1.5 ms
  • Gross weight: 645 g
  • Power to unlock: Yes
  • Actuator monitored: Yes
  • Serial diagnostics: Yes
  • Latching: Yes
  • Emergency exit: Yes
  • Short circuit detection: Yes
  • Cross-circuit detection: Yes
  • Series-wiring: Yes
  • Safety functions: Yes
  • Integral system diagnostics, status: Yes
  • Number of actuating directions: 3
  • Number of fail-safe digital outputs: 2
  • Safety classification
  • Standards: EN ISO 13849-1, EN IEC 61508
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 5.20 x 10⁻¹⁰ /h
  • PFD value: 4.50 x 10⁻⁵
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Mechanical life, minimum: 1,000,000 Operations
  • Note (Mechanical life): When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
  • Angular misalignment between solenoid interlock and actuator, maximum: 2 °
  • Holding force FZhin accordance with EN ISO 14119: 1,150 N
  • Holding force Fmax, maximum: 1,500 N
  • Latching force, adjustable, position 1: 25 N
  • Latching force, adjustable, position 2: 50 N
  • Type of the fixing screws: 2x M6
  • Tightening torque of the fixing screws, minimum: 6 Nm
  • Tightening torque of the fixing screws, maximum: 7 Nm
  • Switch distance, typical: 2 mm
  • Assured switching distance "ON" Sao: 1 mm
  • Assured switching distance "OFF" Sar: 20 mm
  • Length of sensor chain, maximum: 200 m
  • Note (length of the sensor chain): Cable length and cross-section change the voltage drop dependiing on the output current
  • Note (series-wiring): Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
  • Termination: Connector M12, 8-pole, A-coded
  • Length of sensor: 146 mm
  • Width of sensor: 87.5 mm
  • Height of sensor: 55 mm
  • Degree of protection: IP66, IP67, IP69
  • Ambient temperature: +0 ... +60 °C
  • Storage and transport temperature: -10 ... +90 °C
  • Relative humidity, maximum: 93 %
  • Note (Relative humidity): non-condensing, non-icing
  • Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm
  • Restistance to shock: 30 g / 11 ms
  • Protection class: III
  • Permissible installation altitude above sea level, maximum: 2,000 m
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Operating voltage: 24 VDC -15 % / +10 % (stabilised PELV power supply)
  • No-load supply current I0, typical: 100 mA
  • Current consumption with magnet ON, average : 200 mA
  • Current consumption with magnet ON, peak: 350 mA / 200 ms
  • Rated operating voltage: 24 VDC
  • Operating current: 800 mA
  • Required rated short-circuit current: 100 A
  • External wire and device fuse rating: 2 A gG
  • Time to readiness, maximum: 5,000 ms
  • Switching frequency, maximum: 0.5 Hz
  • Electrical fuse rating, maximum: 2 A
  • Designation, Magnet control: IN
  • Switching thresholds: -3 V … 5 V (Low), 15 V … 30 V (High)
  • Magnet switch-on time: 100 %
  • Test pulse duration, maximum: 5 ms
  • Test pulse interval, minimum: 40 ms
  • Classification ZVEI CB24I, Sink: C0
  • Classification ZVEI CB24I, Source: C1, C2, C3
  • Designation, Safety inputs: X1 and X2
  • Switching thresholds: −3 V … 5 V (Low), 15 V … 30 V (High)
  • Current consumption at 24 V: 5 mA
  • Test pulse duration, maximum: 1 ms
  • Test pulse interval, minimum: 100 ms
  • Classification ZVEI CB24I, Sink: C1
  • Classification ZVEI CB24I, Source: C1, C2, C3
  • Designation, Safety outputs: Y1 and Y2
  • Design of control elements: short-circuit proof, p-type
  • Voltage drop Ud, maximum: 2 V
  • Leakage current Ir, maximum: 0.5 mA
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 0.25 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 0.25 A
  • Test pulse interval, typical: 1000 ms
  • Test pulse duration, maximum: 0.5 ms
  • Classification ZVEI CB24I, Source: C2
  • Classification ZVEI CB24I, Sink: C1, C2
  • Designation, Serial diagnostic SD: OUT
  • Operation current: 150 mA
  • Design of control elements: short-circuit proof, p-type
  • Wiring capacitance: 50 nF
  • Note (LED switching conditions display): Operating condition: LED green, Error / functional defect: LED red, Supply voltage UB: LED green
  • PIN 1: A1 Supply voltage UB
  • PIN 2: X1 Safety input 1
  • PIN 3: A2 GND
  • PIN 4: Y1 Safety output 1
  • PIN 5: OUT serial diagnostic output
  • PIN 6: X2 Safety input 2
  • PIN 7: Y2 Safety output 2
  • PIN 8: IN serial diagnostic input
  • Scope of delivery: Actuator must be ordered separately.
  • Recommendation (actuator): AZ/AZM300-B1
  • Note (General): For doors that are flush with the door frame, the optional mounting plate MP-AZ/AZM300-1 can be used. For glass and Makrolon doors, the optional mounting kit MS-AZ/AZM300-B1-1 can be used. As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.
