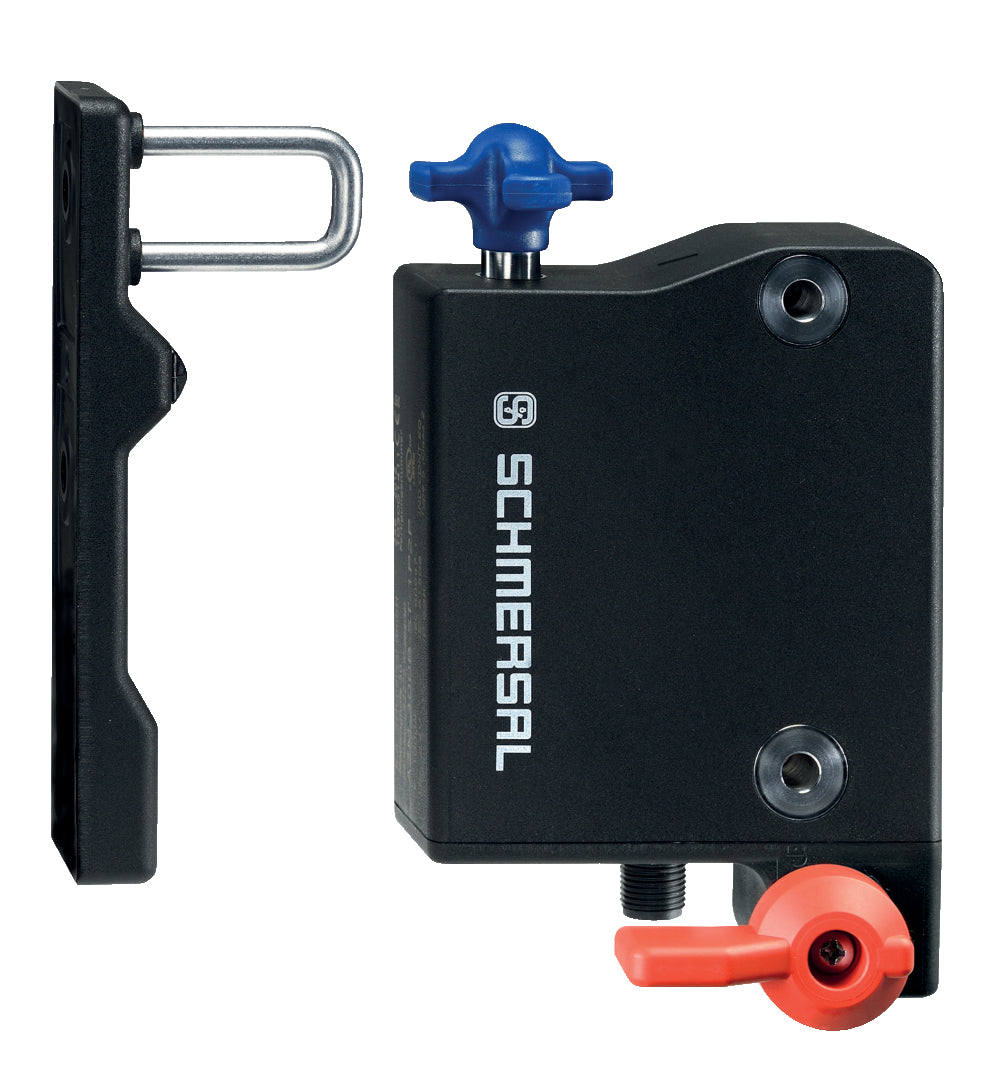

Schmersal AZM300Z-I2-ST-AS-T AS-Interface Safety at Work, sku: 103011892

Schmersal AZM300Z-I2-ST-AS-T AS-Interface Safety at Work, sku: 103011892

€735,66
€735,66
Sale Sold out
Taxes included.

📦 Ready for dispatch: 28.12.2025

SKU: 103011892

  • Kunststoffgehäuse
  • Mehrfach anlernbare individuelle Codierung mit RFID-Technologie
  • Codierstufe HOCH gemäß ISO 14119
  • für Dreh- und Schiebetüren geeignet
  • 3 verschiedene Betätigungsrichtungen
  • Zuhaltungs-Überwachung
  • Ruhestromprinzip
  • Fluchtentriegelung
  • Magnetversorgung aus AS-Interface
  • hygienegerechtes Design
  • Schutzart IP 69
  • Sicherheitszuhaltung mit integrierter AS-i Safety Schnittstelle
  • Universelle, mehrfach anlernbare oder individuelle Codierung durch RFID-Technologie
  • I-Varianten mit Codierstufe HOCH gemäß ISO 14119
  • 2 Raststufen integriert
  • Product type description: AZM300Z-I2-ST-AS-T
  • Article number (order number): 103011892
  • EAN (European Article Number): 4030661480428
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Certificates: TÜV, cULus, ASi-SaW, ECOLAB, FCC
  • Standards: EN IEC 62026-2, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
  • Coding: Individual coding, multiple teaching
  • Coding level according to EN ISO 14119: High
  • Working principle: RFID
  • Frequency band RFID: 125 kHz
  • Transmitter output RFID, maximum: -6 dB/m
  • Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Gross weight: 644 g
  • Reaction time, maximum: 120 ms
  • Duration of risk, maximum: 200 ms
  • Power to unlock: Yes
  • Solenoid interlock monitored: Yes
  • Latching: Yes
  • Emergency exit: Yes
  • Safety functions: Yes
  • Integral system diagnostics, status: Yes
  • Number of actuating directions: 3
  • Safety classification: 3
  • Standards: EN ISO 13849-1, EN IEC 61508
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 4.00 x 10⁻¹⁰ /h
  • PFD value: 7.00 x 10⁻⁵
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Mechanical life, minimum: 1,000,000 Operations
  • Note (Mechanical life): When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
  • Angular misalignment between solenoid interlock and actuator, maximum: 2 °
  • Holding force FZh in accordance with EN ISO 14119: 1,150 N
  • Holding force Fmax, maximum: 1,500 N
  • Latching force, adjustable, position 1: 25 N
  • Latching force, adjustable, position 2: 50 N
  • Type of the fixing screws: 2x M6
  • Tightening torque of the fixing screws, minimum: 6 Nm
  • Tightening torque of the fixing screws, maximum: 7 Nm
  • Switch distance, typical: 2 mm
  • Assured switching distance "ON" Sao: 1 mm
  • Assured switching distance "OFF" Sar: 20 mm
  • Termination: Connector plug M12, 4-pole, (A-coding)
  • Length of sensor: 146 mm
  • Width of sensor: 87.5 mm
  • Height of sensor: 55 mm
  • Degree of protection: IP67, IP69, IP66
  • Ambient temperature: +0 ... +60 °C
  • Storage and transport temperature, minimum: -10 °C
  • Storage and transport temperature, maximum: +90 °C
  • Relative humidity, maximum: 93 %
  • Note (Relative humidity): non-condensing, non-icing
  • Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm
  • Restistance to shock: 30 g / 11 ms
  • Protection class: III
  • Permissible installation altitude above sea level, maximum: 2,000 m
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Time to readiness, maximum: 5,000 ms
  • Rated operating voltage: 26.5 ... 31.6 VDC (Protection against polarity reversal)
  • AS-i Current consumption, maximum: 200 mA
  • AS-i Specification: Safety-Slave
  • AS-i Version : V 3.0
  • AS-i Profile : S-7.B.F.E
  • AS-i Input, Channel 1: Data bits DI 0 / DI 1 = dynamic code transmission
  • AS-i Input, Channel 2: Data bits DI 2 / DI 3 = dynamic code transmission
  • AS-i Outputs, DO 0: Solenoid control
  • AS-i Outputs, DO 1: No Function
  • AS-i Outputs, DO 2: No Function
  • AS-i Outputs, DO 3: No Function
  • AS-i Parameter bits, P0: Safety guard closed and can be locked
  • AS-i Parameter bits, P1: Solenoid interlock locked
  • AS-i Parameter bits, P2: Auxiliary voltage in
  • AS-i Parameter bits, P3: Internal device error (FID)
  • Note (AS-i Parameter bits): Set the parameter outputs to "1111" (0xF) , FID: periphery error
  • AS-i Input module address: 0
  • Note (AS-i Input module address): Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
  • Magnet switch-on time: 100 %
  • Note (LED switching conditions display): (1) green/red LED (AS-i duo LED): Supply voltage/communication error/slave address = 0/periphery error detected/device error detected/manipulation protection active, (2) LED yellow: Device condition (Enabling status), (3) LED red: Internal device error
  • PIN 1: AS-Interface +
  • PIN 2: Aux - (P)
  • PIN 3: AS-Interface -
  • PIN 4: Aux + (P)
  • Scope of delivery: Actuator must be ordered separately.
  • Recommendation (actuator): AZ/AZM300-B1
  • Note (General): For doors that are flush with the door frame, the optional mounting plate MP-AZ/AZM300-1 can be used., For glass and Makrolon doors, the optional mounting kit MS-AZ/AZM300-B1-1 can be used., As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.
