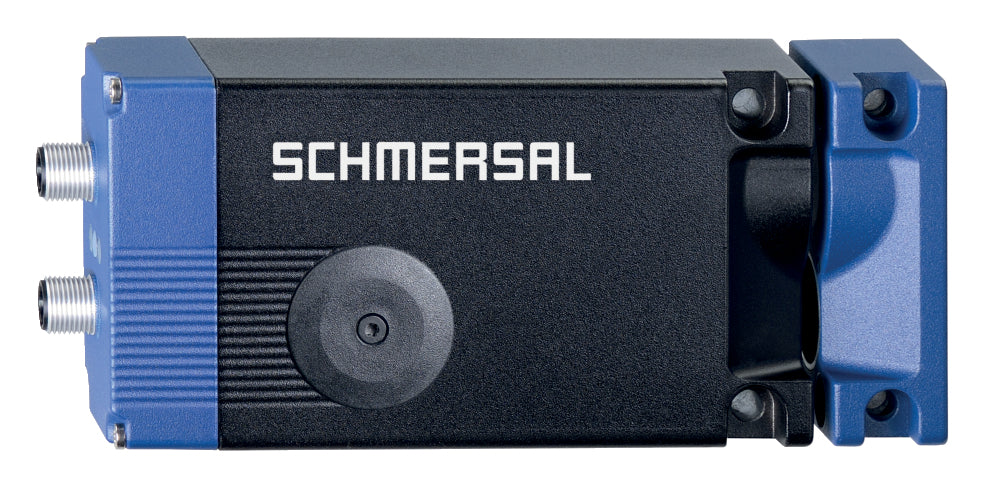

Schmersal AZM400Z-ST2-I2-2P2P-E Sicherheitszuhaltungen, sku: 103003725

Schmersal AZM400Z-ST2-I2-2P2P-E Sicherheitszuhaltungen, sku: 103003725

€949,14
€949,14
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 103003725

  • Mehrfach anlernbare individuelle Codierung mit RFID-Technologie
  • Codierstufe HOCH gemäß ISO 14119
  • 2 Steckverbinder M12, 8- und 5-polig
  • Zuhaltungs-Überwachung
  • 2 Diagnoseausgänge
  • Manuelle Hilfsentriegelung
  • Elektrische Hilfsentriegelung mit Hilfsspannung
  • Bistabiles, motorgetriebenes System
  • Zuhaltekraft 10.000 N
  • Entsperren gegen Querkraft bis 300 N möglich
  • PL e / Kat. 4 / SIL 3 für Verriegelungs- und Zuhaltefunktion
  • Zweikanalige Ansteuerung der Zuhaltefunktion
  • Betrieb an P/P- und P/N-schaltenden Ausgängen
  • Großes Betätigerspiel
  • Product type description: AZM400Z-ST2-I2-2P2P-E
  • Article number (order number): 103003725
  • EAN (European Article Number): 4030661472676
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Certificates: TÜV, cULus, FCC, IC, UKCA, ANATEL
  • Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
  • Coding: Individual coding, multiple teaching
  • Coding level according to EN ISO 14119: High
  • Working principle: Magnetic field, RFID
  • Frequency band RFID: 125 kHz
  • Transmitter output RFID, maximum: -6 dB/m
  • Housing material: Light alloy die-casting
  • Reaction time, switching off safety outputs via actuator, maximum: 100 ms
  • Gross weight: 692 g
  • Solenoid interlock monitored: Yes
  • Electronic manual release: Yes
  • Manual release: Yes
  • Short circuit detection: Yes
  • Cross-circuit detection: Yes
  • Safety functions: Yes
  • Integral system diagnostics, status: Yes
  • Number of diagnostic signals: 2
  • Number of safety contacts: 2
  • Safety classification
  • Standards: EN ISO 13849-1, EN IEC 61508
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 1.00 x 10⁻⁹ /h
  • PFD value: 9.00 x 10⁻⁵
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Performance Level, up to: e
  • Category: 4
  • PFH value: 1.80 x 10⁻⁹ /h
  • PFD value: 1.60 x 10⁻⁴
  • Safety Integrity Level (SIL), suitable for applications in: 3
  • Mission time: 20 Year(s)
  • Interlocking principle: bistable
  • Mechanical life, minimum: 1,000,000 Operations
  • Note (Mechanical life): Which have a lateral force Ftrans = 100 N: 100.000 operations
  • Allowed distance interlock to actuator, minimum: 1 mm
  • Allowed distance interlock to actuator, maximum: 7 mm
  • Angular misalignment between solenoid interlock and actuator, maximum: 2 °
  • Minimum distance devices: 30 mm
  • Holding force FZhin accordance with EN ISO 14119: 10,000 N
  • Holding force Fmax, maximum: 13,000 N
  • Lateral force at bolt return, maximal (against locked door): 300 N
  • Note (Lateral force at bolt return): Does not apply to emergency exit, Bowden cable and manual release
  • Type of the fixing screws: 2x M6
  • Note (Type of the fixing screws): Property class min. 10.9
  • Tightening torque of the screw: 8 Nm
  • Note: The maximum tightening torque of the cover screw (cover triangle) is 0.55 Nm.
  • Termination: 2 connector M12, 8 and 5 pin. both A-coded
  • Length of sensor: 46.7 mm
  • Width of sensor: 77.8 mm
  • Height of sensor: 156.7 mm
  • Degree of protection: IP66, IP67
  • Ambient temperature: -20 ... +55 °C
  • Storage and transport temperature: -40 ... +85 °C
  • Relative humidity, maximum: 93 %
  • Note (Relative humidity): non-condensing, non-icing
  • Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm
  • Restistance to shock: 30 g / 11 ms
  • Protection class: III
  • Permissible installation altitude above sea level, maximum: 2,000 m
  • Rated insulation voltage Ui: 32 VDC
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Operating voltage: 24 VDC -15 % / +10 % (stabilised PELV power supply)
  • Auxiliary power supply Uhe: 24 VDC -15 % / +10 % (UPS / uninterruptable power supply)
  • No-load supply current I0, typical: 100 mA
  • Operating current while bolt movement, peak: 600 mA / 100 ms
  • Rated operating voltage: 24 VDC
  • Required rated short-circuit current: 100 A
  • External wire and device fuse rating: 2 A gG
  • Time to readiness, maximum: 1,500 ms
  • Switching frequency, maximum: 0.3 Hz
  • Open / close cycle (motor), minimum: 3
  • Minimal average cycle time (with continuous operation): 20 s
  • Utilisation category DC-12: 24 VDC / 0.05 A
  • Electrical fuse rating, maximum: 2 A
  • Designation, Control inputs: E1 und E2 (p-schaltend), E3 (n-schaltend)
  • Switching thresholds of the control inputs: −3 V … 5 V (Low), 15 V … 30 V (High)
  • Classification ZVEI CB24I, Sink: C0
  • Classification ZVEI CB24I, Source: C1, C2, C3
  • Current consumption at 24V, minimum: 5 mA
  • Current consumption at 24V, maximum: 10 mA
  • Allowable discrepancy time (input), maximum: 10 s
  • Test pulse interval, maximum: 40 ms
  • Test pulse duration, maximum: 5 ms
  • Permissible residual drive current: 1.5 mA
  • Designation, Safety outputs: Y1 and Y2
  • Design of control elements: short-circuit proof, p-type
  • Voltage drop Ud, maximum: 2 V
  • Leakage current Ir, maximum: 0.5 mA
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 0.25 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 0.25 A
  • Test pulse interval, typical: 1000 ms
  • Test pulse duration, maximum: 0.5 ms
  • Classification ZVEI CB24I, Source: C2
  • Classification ZVEI CB24I, Sink: C1, C2
  • Designation, Diagnostic outputs: OUT1 / OUT2
  • Design of control elements: short-circuit proof, p-type
  • Voltage drop Ud, maximum: 2 V
  • Voltage, Utilisation category DC-12: 24 VDC
  • Current, Utilisation category DC-12: 0.05 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 0.05 A
  • Note: The diagnostic output are not safety relevant outputs!
  • Note (LED switching conditions display): Operating condition: LED green, Error / functional defect: LED red, Supply voltage UB: LED green
  • Connection: Connector 1
  • PIN 1: OUT2 Diagnostic output 2
  • PIN 2: E1 Control input 1
  • PIN 3: n.c.
  • PIN 4: Y1 Safety output 1
  • PIN 5: OUT1 Diagnostic output 1
  • PIN 6: E3 Control input 3
  • PIN 7: Y2 Safety output 2
  • PIN 8: E2 Control input 2
  • Connection: Connector 2
  • PIN 1: A1 Supply voltage UB
  • PIN 2: H2 GND
  • PIN 3: A2 GND
  • PIN 4: H1 Auxiliary voltage Uhe
  • PIN 5: FE (functional earth connection)
  • Scope of delivery: Actuator must be ordered separately.
  • Recommendation (actuator): AZM400-B1
