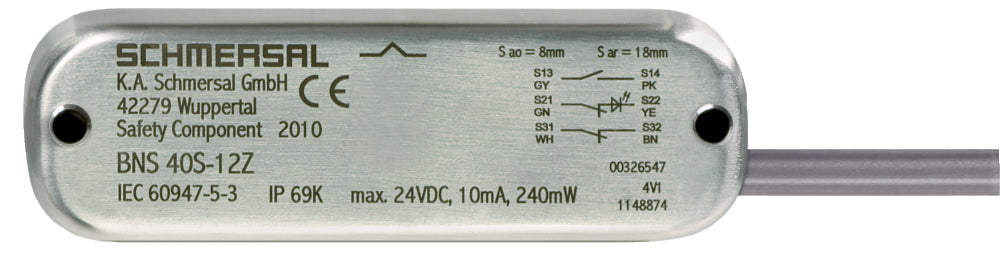

Schmersal BNS 40S-12Z 10,0M Sicherheits-Sensoren, sku: 103000652

Schmersal BNS 40S-12Z 10,0M Sicherheits-Sensoren, sku: 103000652

€233,64
€233,64
Sale Sold out
Taxes included.

📦 Ready for dispatch: 06.12.2025

SKU: 103000652

  • Edelstahlgehäuse
  • lebensmittelechte Anschlussleitung
  • verdeckter Einbau möglich
  • 88 mm x 27 mm x 14,5 mm
  • hohe Lebensdauer
  • kein mechanischer Verschleiß
  • unempfindlich gegen Verschmutzung
  • unempfindlich gegen seitlichen Versatz
  • für Nahrungsmittelbereich geeignet
  • Product type description: BNS 40S-12Z 10,0M
  • Article number (order number): 103000652
  • EAN (European Article Number): 4030661421025
  • eCl@ss number, version 11.0: 27-27-24-02
  • eCl@ss number, version 9.0: 27-27-24-02
  • ETIM number, version 7.0: EC002544
  • ETIM number, version 6.0: EC002544
  • Certificates: TÜV, BG, cULus, ECOLAB
  • Standards: BG-GS-ET-14, EN IEC 60947-5-3
  • Coding level according to EN ISO 14119: Low
  • Working principle: Magnetic drive
  • Installation conditions (mechanical): not flush
  • Enclosure material: Stainless steel (V4A)
  • Gross weight: 665 g
  • Concealed, threaded holes on the back : No
  • Prerequisite evaluation unit: Yes
  • Number of normally closed (NC): 2
  • Number of normally open (NO): 1
  • Number of cable wires: 6
  • Safety classification: 6
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • Actuating element: Magnet
  • Direction of motion: Head-on to the active surface
  • Assured switching distance "ON" Sao: 8 mm
  • Assured switching distance "OFF" Sar: 18 mm
  • Termination: Cable
  • Length of cable: 10 m
  • Wire cross-section: 0.25 mm2
  • Wire cross-section: 23 AWG
  • Material of the Cable mantle: LiYY
  • Length of sensor: 14.5 mm
  • Width of sensor: 88 mm
  • Height of sensor: 27 mm
  • Degree of protection: IP69
  • Ambient temperature: -25 ... +80 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +80 °C
  • Resistance to vibrations: 10 … 55 Hz, amplitude 1 mm
  • Restistance to shock: 30 g / 11 ms
  • Switching current, maximum: 0.25 A
  • Switching capacity, maximum: 3 W
  • Switching frequency, maximum: 5 Hz
  • Design of control elements: Miscellaneous, Reed contacts
  • Scope of delivery: Actuator must be ordered separately.
  • Recommendation (actuator): BPS 40S-2, BPS 40S-1-C, BPS 40S-2-C
  • Recommended safety switchgear: SRB-E-301ST, SRB-E-201LC
  • Note (General): Contact symbols shown for the closed condition of the guard device., The contact configuration for versions with or without LED is identical.
  • Note (Wiring diagram): Contact S21-S22 must be integrated in the safety circuit.
