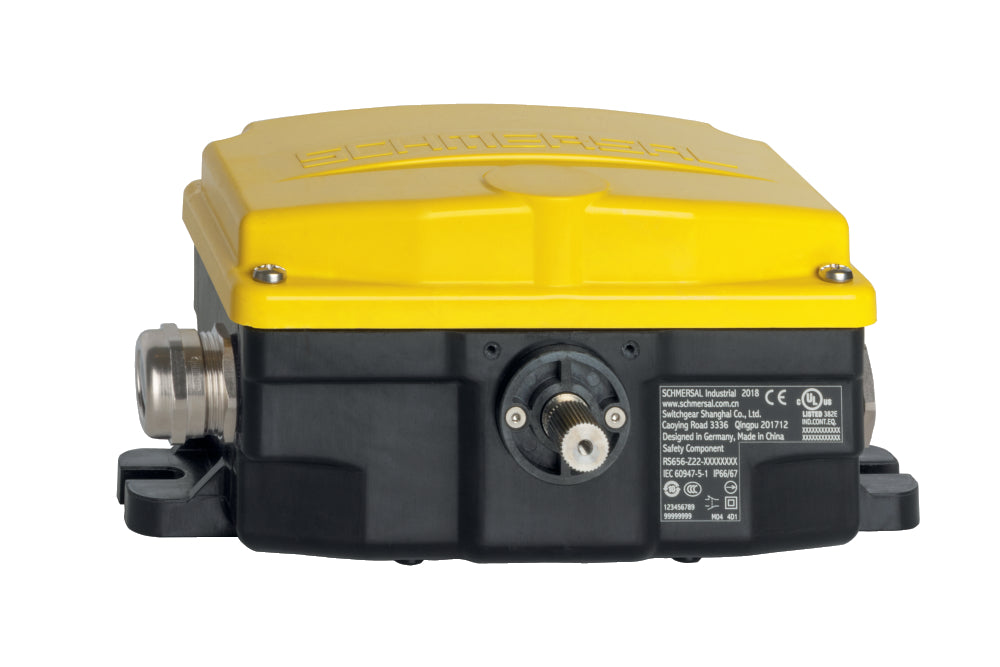

Schmersal BS655-Z22 Positionsschalter, sku: 153031621

Schmersal BS655-Z22 Positionsschalter, sku: 153031621

€515,98
€515,98
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 153031621

  • Plattformkonzept mit unterschiedlichen Funktionseinheiten
  • Metallgehäuse
  • große Auswahl an Betätigungselementen
  • Schutzart IP66, IP67
  • Schaltpunkteinstellung
  • Symmetrie durch verzahnte, zentral angeordnete Welle
  • Zentrale Anschlussklemme
  • Product type description: BS655-Z22
  • Article number (order number): 153031621
  • EAN (European Article Number): 4030661533049
  • eCl@ss number, version 12.0: 27-27-06-01
  • eCl@ss number, version 11.0: 27-27-06-01
  • eCl@ss number, version 9.0: 27-27-06-01
  • ETIM number, version 7.0: EC000030
  • ETIM number, version 6.0: EC000030
  • Certificates: TÜV, cULus
  • Standards: EN 620, EN IEC 60947-5-1
  • Housing material: Grey cast iron, painted
  • Material of the housing cover: Grey cast iron, painted
  • Gross weight: 5,072 g
  • Number of auxiliary contacts: 2
  • Number of safety contacts: 2
  • Safety classification
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10DNormally-closed contact (NC): 2,000,000 Operations
  • Mechanical life, minimum: 1,000,000 Operations
  • Positionierschritte für den Betätiger: 10 °
  • Cable entry: 2 x M25 x 1.5
  • Cable section, minimum: 0.5 mm², flexible
  • Cable section, maximum: 2.5 mm², flexible
  • Degree of protection: IP66, IP67
  • Ambient temperature: -40 ... +70 °C
  • Protection class: I
  • Rated insulation voltage Ui: 300 V
  • Rated impulse withstand voltage Uimp: 4 kV
  • Degree of pollution: 3
  • Thermal test current: 6 A
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 3 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 3 A
  • Material of the contacts, electrical: Silver
