Schmersal

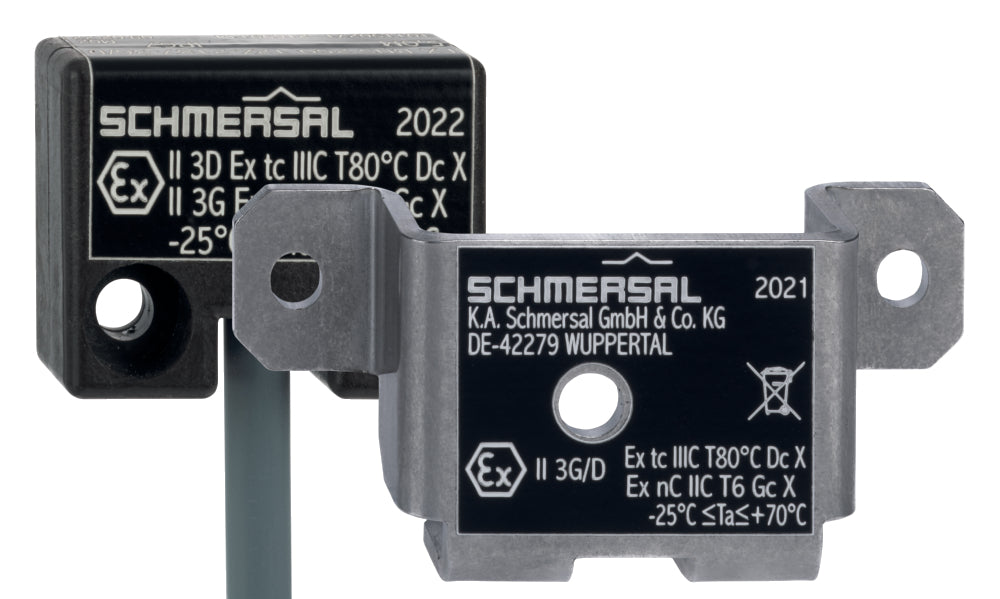

Schmersal EX-BNS 250-12Z-2187-3GD 25M Sicherheits-Sensoren, sku: 103045526
Schmersal EX-BNS 250-12Z-2187-3GD 25M Sicherheits-Sensoren, sku: 103045526
Regular price
€290,76
Regular price
Sale price
€290,76
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 15.12.2025
Couldn't load pickup availability
SKU: SKU:103045526
- EX-Schutz für die ATEX Zonen 2 und 22
- Kunststoffgehäuse
- unempfindlich gegen seitlichen Versatz
- kein mechanischer Verschleiß
- 64 mm x 29,5 mm x 15,5 mm (inkl. Schutzgehäuse)
- Product type description: EX-BNS 250-12Z-2187-3GD 25M
- Article number (order number): 103045526
- EAN (European Article Number): 4030661565149
- Explosion protection: regulations: EN IEC 60079-0, EN IEC 60079-15, EN IEC 60079-31
- Explosion protection zones: 22, 2
- Explosion protection category: 3D, 3G
- Explosion protection designation: D II 3G Ex nC IIC T6 Gc X, D II 3D Ex tc IIIC T80°C Dc X
- Manufacturer declaration: Additional simple electrical apparatus (Zone 0 and 20)
- Housing construction form: Block
- Installation conditions (mechanical): not flush
- Enclosure material: Glass-fibre, reinforced thermoplastic
- Gross weight: 1,030 g
- Coding: Yes
- Short circuit detection: Yes
- Cross-circuit detection: Yes
- Prerequisite evaluation unit: Yes
- Number of normally closed (NC): 2
- Number of normally open (NO): 1
- Number of cable wires: 6
- Safety classification: 6
- Standards: EN ISO 13849-1
- Mission time: 20 Year(s)
- B10D- Value Normally-closed contact/Normally open contact (NC/NO): 25,000,000 Operations
- Actuating element: Magnet
- Impact energy, maximum: 7 J
- Direction of motion: Head-on to the active surface
- Assured switching distance "ON" Sao: 4 mm
- Assured switching distance "OFF" Sar: 14 mm
- Termination: Cable
- Wire cross-section: 0.25 mm2
- Wire cross-section: 23 AWG
- Material of the Cable mantle: PVC
- Length of sensor: 13 mm
- Width of sensor: 33 mm
- Height of sensor: 25 mm
- Degree of protection: IP67
- Ambient temperature: -25 ... +70 °C
- Storage and transport temperature, minimum: -25 °C
- Storage and transport temperature, maximum: +70 °C
- Resistance to vibrations: 10 … 55 Hz, amplitude 1 mm
- Restistance to shock: 30 g / 11 ms
- Switching voltage, maximum: 24 VDC
- Switching current, maximum: 0.1 A
- Switching capacity, maximum: 1 W
- Switching frequency, maximum: 5 Hz
- Design of control elements: Miscellaneous, Reed contacts
- Scope of delivery: Actuator must be ordered separately.
- Recommendation (actuator): EX-BPS 250-3G/D
- Recommended safety switchgear: SRB-E-301ST, SRB-E-201LC
- Note (General): Contact symbols shown for the closed condition of the guard device., The contact configuration for versions with or without LED is identical.
