Schmersal

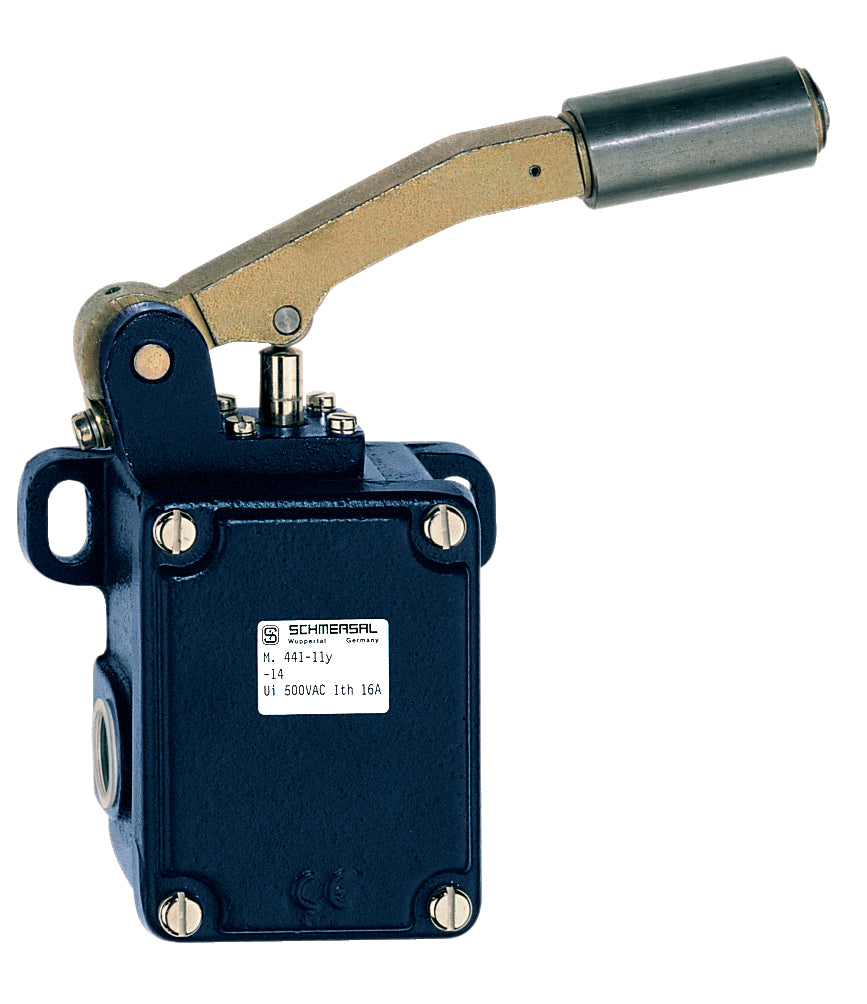

Schmersal EX-M. 441-11Y-14-1276-2 Schlafseilschalter, sku: 103011173

Schmersal EX-M. 441-11Y-14-1276-2 Schlafseilschalter, sku: 103011173

€446,25
€446,25
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 103011173

  • 2 Leitungseinführungen
  • für schweren Betrieb geeignet
  • Product type description: EX-M. 441-11Y-14-1276-2
  • Article number (order number): 103011173
  • EAN (European Article Number): 4030661476476
  • eCl@ss number, version 12.0: 27-27-06-01
  • eCl@ss number, version 11.0: 27-27-06-01
  • eCl@ss number, version 9.0: 27-27-06-01
  • ETIM number, version 7.0: EC000030
  • ETIM number, version 6.0: EC000030
  • Certificates: IEC Ex, INMETRO, DEKRA
  • Explosion protection: regulations: EN IEC 60079-0, EN IEC 60079-31
  • Explosion protection zones: 21
  • Explosion protection category: 2D
  • Explosion protection designation: D II 2D Ex tb IIIC T90°C Db
  • Manufacturer declaration: Additional simple electrical apparatus (Zone 0 and 20)
  • Standards: EN IEC 60947-5-1
  • Working principle: mechanical
  • Enclosure material: Grey cast iron, galvanised
  • Enclosure coating material: painted
  • Gross weight: 1,785 g
  • Number of normally closed (NC): 1
  • Number of normally open (NO): 1
  • Mechanical life, minimum: 10,000,000 Operations
  • Contact opening: 2 x 2.5 mm
  • Termination: Screw terminals M20 x 1.5
  • Cable section, minimum: 1.5 mm²
  • Cable section, maximum: 2.5 mm²
  • Wire cross-section: 13 AWG
  • Length of sensor: 63 mm
  • Width of sensor: 106 mm
  • Height of sensor: 181 mm
  • Degree of protection: IP65, IP67, IP66
  • Ambient temperature: -20 ... +60 °C
  • Rated insulation voltage Ui: 250 VAC
  • Rated impulse withstand voltage Uimp: 4 kV
  • Thermal test current: 16 A
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 4 A
  • Switching element: NO contact, NC contact
  • Switching principle: Snap action
  • Bounce duration, maximum: 5 ms
  • Switching frequency: 3,000 /h
  • Switchover time, maximum: 35 ms
  • Material of the contacts, electrical: Silver
