Schmersal

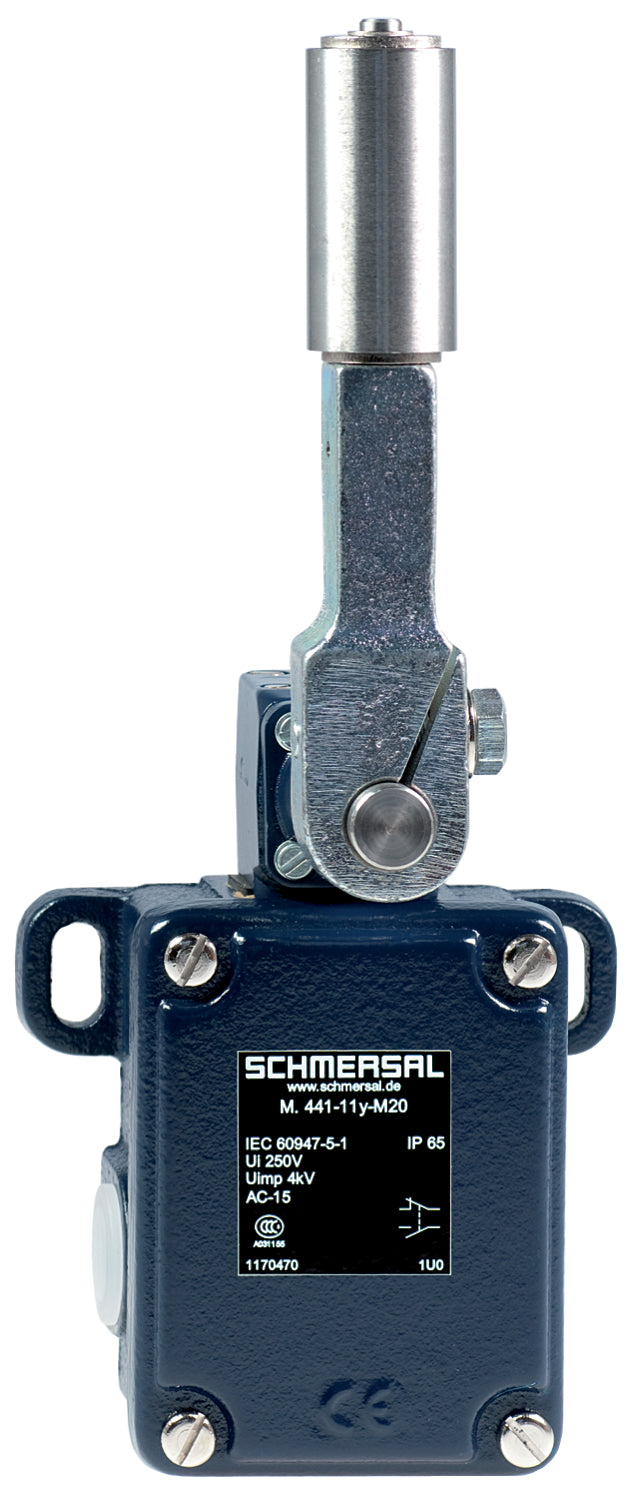

Schmersal M. 441-11Y-M20-243 Bandschieflaufschalter, sku: 101168784
Schmersal M. 441-11Y-M20-243 Bandschieflaufschalter, sku: 101168784
Regular price
€470,37
Regular price
Sale price
€470,37
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 02.12.2025
Couldn't load pickup availability
SKU: SKU:101168784
- 2 Leitungseinführungen M20
- Betätiger stufenlos um 360º einstellbar
- Metallgehäuse
- 2 Kontakte
- 106 mm x 99 mm x 63 mm ( Grundgerät)
- für schweren Betrieb geeignet
- Product type description: M. 441-11Y-M20-243
- Article number (order number): 101168784
- EAN (European Article Number): 4030661224435
- eCl@ss number, version 12.0: 27-27-06-90
- eCl@ss number, version 11.0: 27-27-06-90
- eCl@ss number, version 9.0: 27-27-06-90
- ETIM number, version 7.0: EC000030
- ETIM number, version 6.0: EC000030
- Certificates: CCC
- Standards: EN IEC 60947-5-1
- Working principle: mechanical
- Enclosure material: Grey cast iron, galvanised
- Enclosure coating material: painted
- Gross weight: 1,780 g
- Number of normally closed (NC): 1
- Number of normally open (NO): 1
- B10D Normally-closed contact (NC): 2,000,000 Operations
- Mechanical life, minimum: 10,000,000 Operations
- Contact opening: 2 x 2.5 mm
- Actuation direction: each time 60° right-hand side and left-hand side rotation
- Termination: Screw terminals M20 x 1.5
- Cable section, minimum: 1.5 mm²
- Cable section, maximum: 2.5 mm²
- Length of sensor: 63 mm
- Width of sensor: 106 mm
- Height of sensor: 99 mm
- Diameter of Castor: 25 mm
- Length of the lever: 25 mm
- Width of the lever: 25 mm
- Height of the lever: 141 mm
- Degree of protection: IP65
- Ambient temperature: -30 ... +90 °C
- Rated insulation voltage Ui: 250 VAC
- Rated impulse withstand voltage Uimp: 4 kV
- Thermal test current: 16 A
- Utilisation category AC-15: 230 VAC
- Utilisation category AC-15: 4 A
- Switching element: NO contact, NC contact
- Switching principle: Snap action
- Switching frequency: 3,000 /h
- Material of the contacts, electrical: Silver
