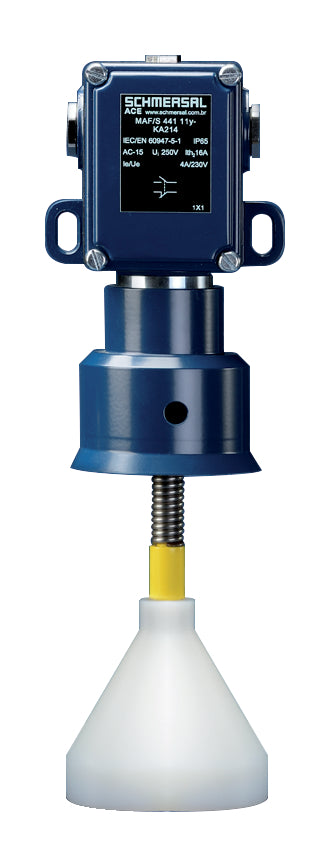

Schmersal MAF/S 441-11Y Positionsschalter, sku: 103006789

Schmersal MAF/S 441-11Y Positionsschalter, sku: 103006789

€691,71
€691,71
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 103006789

  • Niveauschalter für Silos und Lagerbehälter
  • Aluminiumgehäuse, Erfassungskegel
  • in alle Richtungen auslenkbar
  • Abschaltung bei 30° Auslenkung oder Druck von unten
  • 1 Schließer (NO) / 1 Öffner (NC)
  • Einbaulage vertikal
  • Umgebungstemperatur −30 … +90 °C
  • Schutzart IP65
  • Product type description: MAF/S 441-11Y
  • Article number (order number): 103006789
  • EAN (European Article Number): 4030661448251
  • eCl@ss number, version 12.0: 27-27-06-01
  • eCl@ss number, version 11.0: 27-27-06-01
  • eCl@ss number, version 9.0: 27-27-06-01
  • ETIM number, version 7.0: EC000030
  • ETIM number, version 6.0: EC000030
  • Standards: EN IEC 60947-5-1
  • Working principle: mechanical
  • Enclosure material: Aluminium
  • Enclosure coating material: painted
  • Material of the Detection cone: Plastic
  • Gross weight: 1,460 g
  • Number of normally closed (NC): 1
  • Number of normally open (NO): 1
  • Actuating element: Detection cone
  • Mechanical life, minimum: 1,000,000 Operations
  • Actuating force: 14 N
  • Actuating speed, minimum: 1 mm/min
  • Actuating speed, maximum: 1 m/s
  • Termination: Screw terminals M20 x 1.5
  • Cable section, minimum: 1.5 mm²
  • Cable section, maximum: 2.5 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Length of sensor: 61 mm
  • Width of sensor: 106 mm
  • Height of sensor: 438 mm
  • Diameter of the Detection cone: 90 mm
  • Degree of protection: IP65
  • Ambient temperature: -30 ... +90 °C
  • Rated insulation voltage Ui: 250 VAC
  • Rated impulse withstand voltage Uimp: 4 kV
  • Thermal test current: 16 A
  • Utilisation category AC-15: 250 VAC
  • Utilisation category AC-15: 4 A
  • Switching element: NO contact, NC contact
  • Note (Switching element): galvanically separated contact bridges
  • Switching principle: Snap action
  • Bounce duration, maximum: 5 ms
  • Switchover time, maximum: 35 ms
  • Material of the contacts, electrical: Silver
