Schmersal

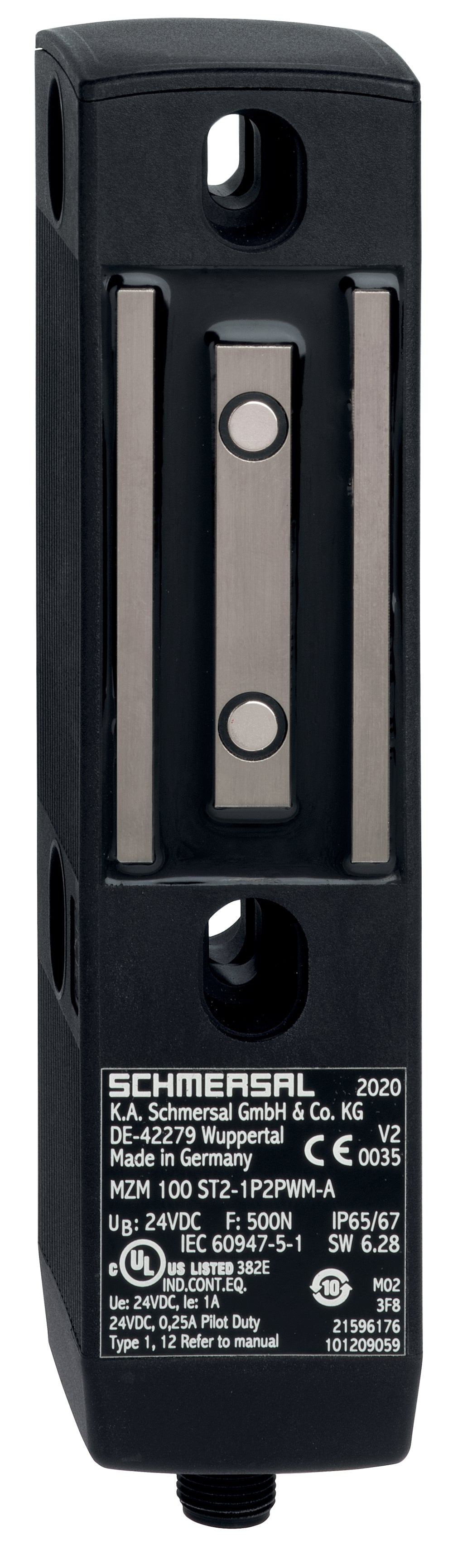

Schmersal MZM 100 B ST2-1P2PW2REM-A Sicherheitszuhaltungen, sku: 101211071
Schmersal MZM 100 B ST2-1P2PW2REM-A Sicherheitszuhaltungen, sku: 101211071
Regular price
€752,79
Regular price
Sale price
€752,79
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 02.12.2025
Couldn't load pickup availability
SKU: SKU:101211071
- Betätiger-Überwachung
- Steckverbinder M12, 8-polig
- Arbeitsstromprinzip
- Automatische Rastung
- Neuartiges, einzigartiges Wirkprinzip für Sicherheitszuhaltungen
- 40 mm x 179 mm x 40 mm
- berührungsloses, codiertes elektronisches System
- Kunststoffgehäuse
- max. Länge der Sensorkette 200 m
- 3 LEDs zur Anzeige der Betriebszustände
- Sensor-Technik erlaubt Versatz von Betätiger und Zuhaltung von vertikal ± 5 mm und horizontal ± 1,5 mm
- Intelligente Diagnose
- selbstüberwachte Reihenschaltung
- Product type description: MZM 100 B ST2-1P2PW2REM-A
- Article number (order number): 101211071
- EAN (European Article Number): 4030661389097
- eCl@ss number, version 12.0: 27-27-26-03
- eCl@ss number, version 11.0: 27-27-26-03
- eCl@ss number, version 9.0: 27-27-26-03
- ETIM number, version 7.0: EC002593
- ETIM number, version 6.0: EC002593
- Certificates: TÜV, cULus, UKCA
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Universal coding
- Coding level according to EN ISO 14119: Low
- Working principle: inductive
- Enclosure material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight: 640 g
- Reaction time, maximum: 150 ms
- Duration of risk, maximum: 150 ms
- Power to lock: Yes
- Actuator monitored: Yes
- Latching: Yes
- Short circuit detection: Yes
- Cross-circuit detection: Yes
- Series-wiring: Yes
- Safety functions: Yes
- Integral system diagnostics, status: Yes
- Number of safety contacts: 2
- Safety classification: 2
- Standards: EN ISO 13849-1, EN IEC 61508
- Performance Level, up to: e
- Category: 4
- PFH value: 3.54 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in: 3
- Mission time: 20 Year(s)
- Mechanical life, minimum: 1,000,000 Operations
- Note (Mechanical life): Actuating speed ≤ 0.5 m/s, Operations for door weights ≤ 5 kg
- Holding force, typically: 750 N
- Holding force, guaranteed: 500 N
- Latching force, minimum: 45 N
- Latching force, maximum: 115 N
- Type of the fixing screws: 2x M6
- Tightening torque of the fixing screws: 8 Nm
- Assured switching distance "ON" Sao: 0 mm
- Assured switching distance "OFF" Sar: 1 mm
- Termination: Connector M12, 8-pole
- Length of sensor chain, maximum: 200 m
- Note (length of the sensor chain): Cable length and cross-section change the voltage drop dependiing on the output current
- Note (series-wiring): Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
- Length of sensor: 40 mm
- Width of sensor: 40 mm
- Height of sensor: 177.5 mm
- Degree of protection: IP65, IP67
- Ambient temperature: -25 ... +55 °C
- Storage and transport temperature, minimum: -25 °C
- Storage and transport temperature, maximum: +70 °C
- Relative humidity, minimum: 30 %
- Relative humidity, maximum: 95 %
- Note (Relative humidity): non-condensing, non-icing
- Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm / 5 g
- Restistance to shock: 30 g / 11 ms
- Protection class: III
- Permissible installation altitude above sea level, maximum: 2,000 m
- Rated insulation voltage Ui: 32 VDC
- Rated impulse withstand voltage Uimp: 0.8 kV
- Overvoltage category: III
- Degree of pollution: 3
- Operating voltage: 24 VDC -15 % / +10 % (stabilised PELV power supply)
- No-load supply current I0, maximum: 100 mA
- Current consumption with magnet ON, average : 350 mA
- Current consumption with magnet ON, peak: 550 mA / 10 ms
- Rated operating voltage: 24 VDC
- Operating current: 1,100 mA
- Required rated short-circuit current: 100 A
- External wire and device fuse rating: 2 A gG
- Time to readiness, maximum: 4,000 ms
- Switching frequency, maximum: 1 Hz
- Designation, Magnet control: IN
- Switching thresholds: -3 V … 5 V (Low), 15 V … 30 V (High)
- Current consumption at 24 V: 10 mA
- Magnet switch-on time: 100 %
- Test pulse duration, maximum: 5 ms
- Test pulse interval, minimum: 40 ms
- Classification ZVEI CB24I, Sink: C0
- Classification ZVEI CB24I, Source: C1, C2, C3
- Designation, Safety inputs: X1 and X2
- Switching thresholds: −3 V … 5 V (Low), 15 V … 30 V (High)
- Current consumption at 24 V: 5 mA
- Test pulse duration, maximum: 1 ms
- Test pulse interval, minimum: 100 ms
- Classification ZVEI CB24I, Sink: C1
- Classification ZVEI CB24I, Source: C1, C2, C3
- Designation, Safety outputs: Y1 and Y2
- Rated operating current (safety outputs): 250 mA
- Design of control elements: short-circuit proof, p-type
- Voltage drop Ud, maximum: 1 V
- Leakage current Ir, maximum: 0.5 mA
- Voltage, Utilisation category DC-13: 24 VDC
- Current, Utilisation category DC-13: 0.25 A
- Test pulse interval, typical: 1000 ms
- Test pulse duration, maximum: 1 ms
- Classification ZVEI CB24I, Source: C1
- Classification ZVEI CB24I, Sink: C1
- Designation, Diagnostic outputs: OUT
- Design of control elements: short-circuit proof, p-type
- Voltage drop Ud, maximum: 2 V
- Voltage, Utilisation category DC-13: 24 VDC
- Current, Utilisation category DC-13: 0.05 A
- Note (LED switching conditions display): Operating condition: LED green, Error / functional defect: LED red, Supply voltage UB: LED green
- PIN 1: A1 Supply voltage UB
- PIN 2: X1 Safety input 1
- PIN 3: A2 GND
- PIN 4: Y1 Safety output 1
- PIN 5: OUT Diagnostic output
- PIN 6: X2 Safety input 2
- PIN 7: Y2 Safety output 2
- PIN 8: IN Solenoid control
- Scope of delivery: Actuator must be ordered separately.
- Recommendation (actuator): MZM 100-B1.1
- Note (General): As long as the actuating unit is applied to the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.
