Schmersal

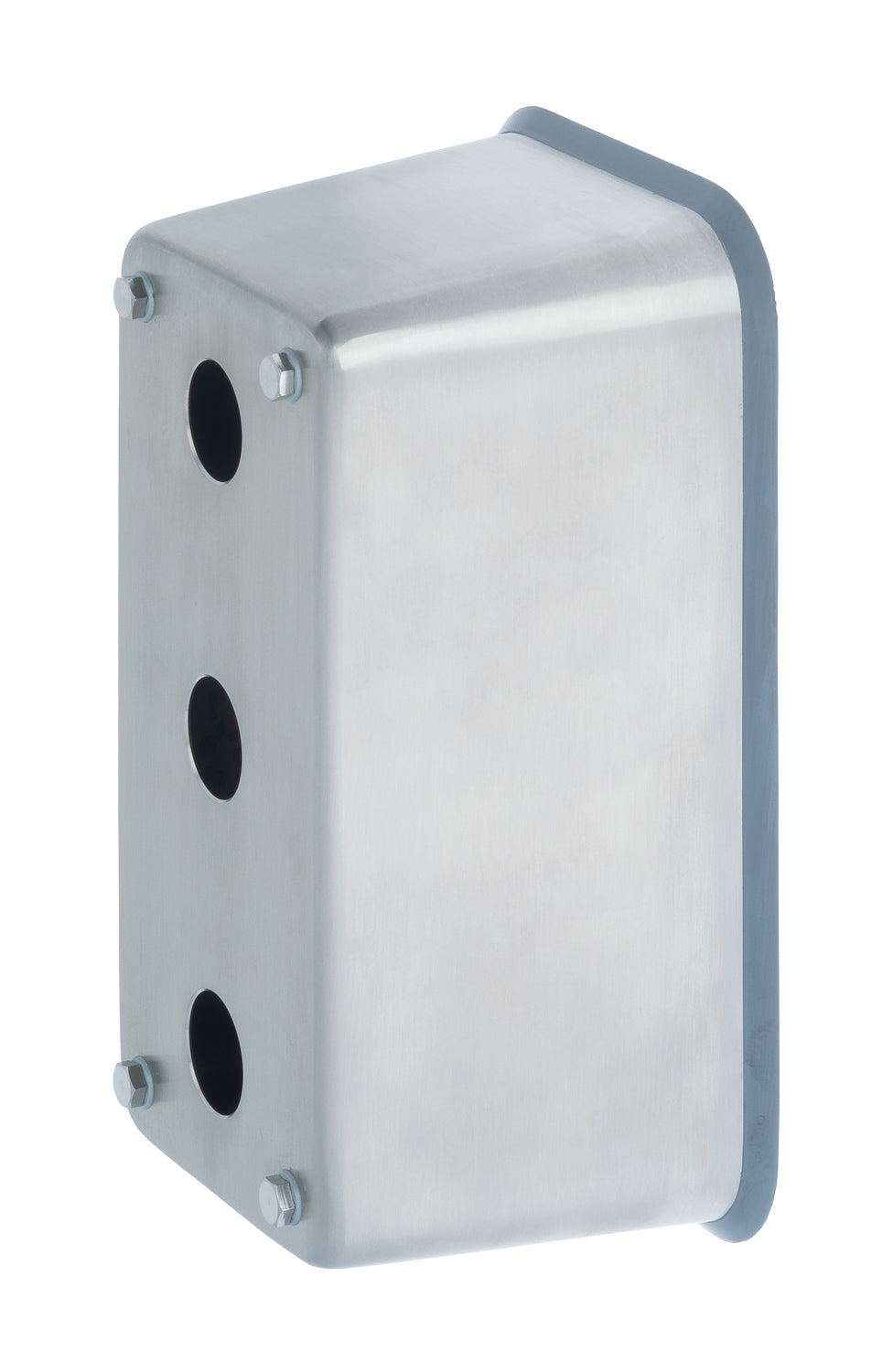

Schmersal NBG633 Befehls- und Meldegeräte, sku: 101180083

Schmersal NBG633 Befehls- und Meldegeräte, sku: 101180083

€736,77
€736,77
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 101180083

  • für Anwendungen an Nahrungsmittelmaschinen
  • Gehäusedichtung für Nahrungsmittelmaschinen
  • Edelstahlgehäuse
  • Product type description: NBG633
  • Article number (order number): 101180083
  • EAN (European Article Number): 4250116201723
  • eCl@ss number, version 12.0: 27-37-12-05
  • eCl@ss number, version 11.0: 27-37-12-05
  • eCl@ss number, version 9.0: 27-37-12-05
  • ETIM number, version 7.0: EC000200
  • ETIM number, version 6.0: EC000200
  • Certificates: BG
  • Versions: Assembly housing
  • Design: Stainless steel
  • Enclosure material: Stainless steel (V4A)
  • Colour of the bottom part of the enclosure : Silver
  • Colour of the sealing: Grey
  • Gross weight: 1,250 g
  • Number of cable glands: 1
  • Number of command positions: 3
  • Position of the cable gland: mounting holes
  • Diameter of the cable gland: 20.3 mm
  • Width: 110 mm
  • Height: 86.5 mm
  • Depth: 204 mm
  • Middle spacing of drilled holes: 60 mm
  • Degree of protection: IP67, IP69K
  • Ambient temperature: -25 ... +80 °C
